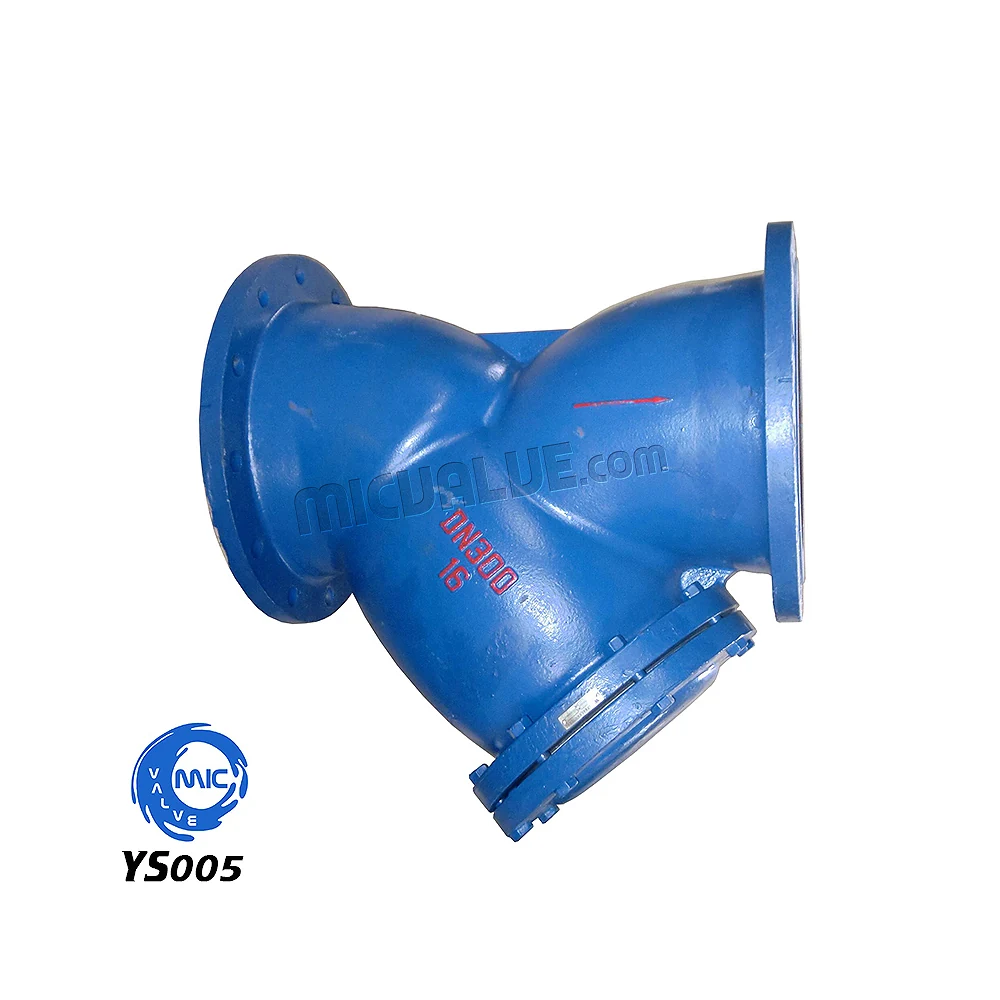

YS005 Y Type Strainer DN300 and DIN PN16
YS005 is a Y type strainer with DN300 nominal diameter and DIN PN16 pressure rating, designed for filtering debris from water, low-pressure process fluids, and heating media in industrial pipelines. It features a Y-shaped body that allows for easy cleaning and maintenance while maintaining a compact footprint in the line. The strainer is built for continuous operation in systems where particulate buildup can affect downstream equipment performance.
| Model Code | YS005 |
|---|---|
| Product Type | Y type Strainer[DN300 and DIN PN16] |
| Category | Strainers |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | YS005 |
| Valve Type | Y type strainer |
| Nominal Diameter | DN300 |
| Pressure Rating | DIN PN16 |
| Connection | Flanged, DIN standard |
| Series | YS005 Y type strainer series |
What This Model Gives You
- Y-shaped body provides a low-pressure drop and efficient filtration in high-flow applications
- Easy access for cleaning and screen replacement without removing the strainer from the pipeline
- Compact design fits into tight spaces where larger strainers would not install
- DIN PN16 rating supports low- to medium-pressure service in water and heating systems
- Built into a valve programme certified to ISO 9001 and ISO 14001
- Part of a range covering DN10 to DN2600, allowing consistent sizing across projects
Problems It Removes
- Large strainers take up too much space in confined piping layouts where a Y type fits
- Frequent screen clogging leads to system downtime when cleaning requires full removal
- Lack of standardisation across strainer models makes spare parts hard to manage
- High-pressure drop in straight-through strainers reduces system efficiency
- Buyers need a reliable strainer that matches their existing flange standards and pressure ratings
Where It Is Installed
- Protection of pumps and control valves in municipal water supply and distribution systems
- Debris filtration in low-pressure heating circuits of district heating networks
- Sediment removal from process water lines in chemical and pharmaceutical plants
- Maintenance of clean fluid flow in cooling water systems of power generation facilities
- Filtering duty in sewage treatment plant inlet lines where solids are present
Buyers It Suits
- Water utility engineers sourcing DN300 strainers for municipal distribution networks
- HVAC and heating system designers needing compact filtration in building services
- Plant maintenance teams requiring easy-to-clean strainers for routine upkeep
- EPC contractors standardising on a single strainer model across multiple project phases
- Valve distributors stocking medium-diameter strainers for industrial and municipal orders
How It Is Built
- Y-shaped body with a removable screen for easy cleaning
- Nominal diameter DN300, pressure rating DIN PN16
- Flange connections conform to DIN standard
- Designed for use in water, low-pressure process fluids, and heating media
- Part of the YS005 series that continues through other nominal diameters
- Suitable for continuous operation in industrial and municipal pipelines
Material Selection
- Body, screen, and internal components are confirmed per order based on the medium and operating temperature
- Material selection follows the options available in the YS005 series
- Material certificates are issued with the order upon request
How It Is Made
- Body castings inspected and machined on in-house fine machining equipment
- Flange drilling matched to DIN standard and verified before assembly
- Screen and housing assembled with proper alignment for easy removal
- Strainer pressure tested and checked for leakage before packing
- Marked, wrapped, and crated for container shipment from Tianjin
How It Is Checked
- Dimensional check of flange bolt pattern and face-to-face length before assembly
- Pressure test performed on the assembled strainer to verify seal integrity
- Screen fit and ease of removal verified during functional testing
- Testing conducted on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Flange standard and drilling matched to the buyer's pipeline system
- Screen material and mesh size selected based on the fluid and particle size
- Private label marking and packaging available on OEM orders
- Mixed-diameter orders combined with other valves in one container
- Supplied with or without actuator or manual handle, as required
How It Compares With the Alternatives
| Straight-through strainer | The Y type has lower pressure drop and easier access for cleaning compared to straight-through models |
|---|---|
| Basket strainer | The Y type is more compact and easier to maintain than a basket strainer, though the basket holds more debris |
| T type strainer | The T type offers a larger screen area but requires more space; the Y type is more compact for tight installations |
| Strainer with full removal | The Y type allows screen cleaning without full disassembly, reducing downtime compared to full-removal models |
Installing and Operating This Valve
- Confirm the flange standard and pressure rating on both pipe flanges before ordering
- Install the strainer with the screen side facing the flow direction to ensure proper filtration
- Leave the strainer in place during initial system flushing to capture debris
- Open the cover and remove the screen for cleaning when pressure drop increases or flow drops
- Reinstall the screen with the gasket properly seated to prevent bypass
- Do not operate the system with the cover removed or the screen missing
Related Models Industries and Guides
YS005 Y Type Strainer DN300 and DIN PN16 FAQ
What size and pressure rating is YS005?
It is a DN300 strainer with a DIN PN16 pressure rating. The flange standard and material are confirmed against your line data when we quote.
Can this strainer be used in high-temperature water systems?
Yes, but the material selection must be confirmed based on the operating temperature and medium. We provide material options that suit your service conditions.
Is the screen removable without removing the strainer from the line?
Yes. The Y type design allows for screen removal and cleaning without disconnecting the strainer from the pipeline.
Can it be supplied with a different flange standard?
Yes. The flange drilling can be matched to your pipeline standard, including DIN, ANSI, or JIS, upon request.
What material options are available for the body and screen?
Material options are confirmed per order based on the medium and temperature. Common choices include carbon steel, stainless steel, and brass.
Do you supply the larger diameters in the same series?
Yes. The YS005 series continues through other nominal diameters, and our programme covers DN10 to DN2600 across all families.
What certification does the factory hold?
Tianjin MIC Valve Co., Ltd. is certified to the ISO 9001 quality management system and the ISO 14001 environmental management system.
Get a Price for YS005 Y Type Strainer DN300 and DIN PN16
Tell us the quantity, flange standard and the medium on your line. You get a quotation with a confirmed specification sheet, not a catalogue page.
