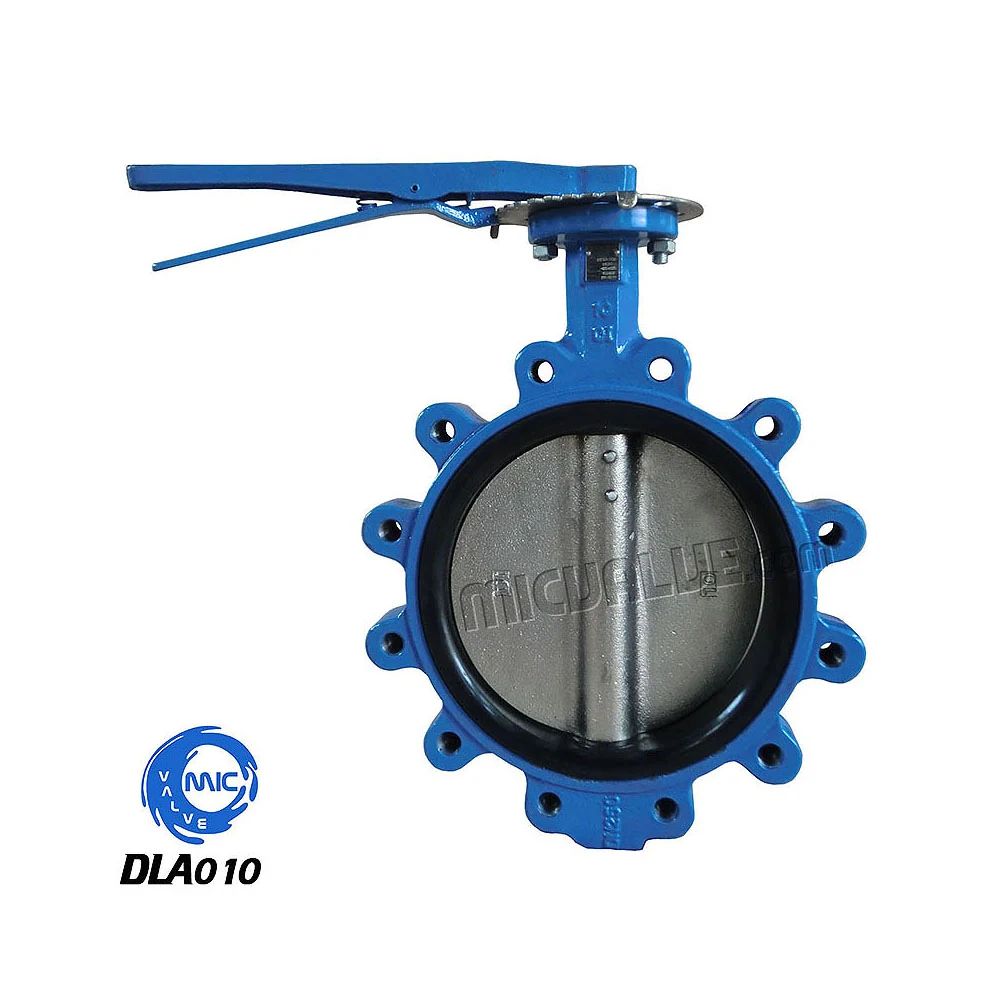

DLA010 Lug Butterfly Valve DN250 Malleable Iron Hand Lever
DLA010 is a DN250 lug type butterfly valve with a malleable iron body and hand lever, designed for on-off service in water, low-pressure industrial and heating lines. The lug body allows installation at the end of a pipe run or in dead-end service, where a wafer body cannot be used. The hand lever provides manual operation with quarter-turn control, and the valve is built for repeated cycling in medium- and low-pressure applications.
| Model Code | DLA010 |
|---|---|
| Product Type | Lug Butterfly Valve[DN250 Malleable Iron Hand Lever] |
| Category | Lug Type Butterfly Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | DLA010 |
| Valve Type | Lug type butterfly valve |
| Nominal Diameter | DN250 |
| Body Material | Malleable iron |
| Operation | Quarter-turn, hand lever |
| Series | DLA010 lug butterfly valve series |
What This Model Gives You
- Lug body enables end-of-line or dead-end isolation where a wafer body cannot be used
- Malleable iron body provides good strength and castability for medium-pressure service
- Quarter-turn hand lever allows quick visual confirmation of valve position
- Compact design reduces space requirements compared to gate valves
- Built into a valve programme covering DN10 to DN2600 and 0.05 to 4.0 MPa
- Part of a series certified to ISO 9001 and ISO 14001 quality and environmental systems
Problems It Removes
- Gate valves are too long and heavy for tight spaces where end-of-line isolation is needed
- Wafer butterfly valves cannot be used at the end of a pipe run because they require flanges on both sides
- Older valves in service lack a reliable quarter-turn indicator for operator confirmation
- Buyers need a single supplier for both small and large diameter valves across multiple applications
- Space constraints in pump skids and control panels prevent the use of longer valves
Where It Is Installed
- Isolation at the end of a water supply line in a municipal distribution network
- Dead-end service in a heating system where the pipe terminates at the valve
- Zone shut-off in a power plant auxiliary system with limited space
- Maintenance isolation in a chemical process line where the valve is installed at the end of a branch
- Retrofit replacement in an existing pipeline where a gate valve is too long
Buyers It Suits
- Water utility engineers specifying isolation valves for dead-end service
- HVAC and heating system designers needing compact end-of-line valves
- Plant maintenance teams replacing gate valves with shorter butterfly valves
- EPC contractors sourcing medium- and low-pressure valves for multiple projects
- Valve distributors stocking lug butterfly valves for industrial and municipal use
How It Is Built
- Lug body with threaded inserts for mounting bolts on both ends
- Quarter-turn operation via hand lever for manual control
- Malleable iron body suitable for medium- and low-pressure service
- Resilient seat for bidirectional sealing and tight shut-off
- Designed for use in water, heating, and low-pressure industrial lines
- Part of the DLA010 lug butterfly valve series covering DN10 to DN2600
Material Selection
- Body, disc, stem and seat materials are confirmed per order based on the medium and operating temperature
- Seat and disc variants follow the options available in the DLA010 series
- Material certificates are issued with the order upon request
How It Is Made
- Body castings inspected and machined on in-house fine machining equipment
- Disc and stem assembled and fitted with the resilient seat
- Lug inserts cast or machined into the body for end-of-line mounting
- Valve assembled and tested for operation and tightness before packing
- Marked, wrapped and crated for container shipment from Tianjin
How It Is Checked
- Dimensional check of lug hole spacing and body face-to-face length before assembly
- Seat and shell tightness tested on the assembled valve
- Operating torque and full quarter-turn travel verified on every unit
- Testing performed on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Seat and disc variant selected based on the medium and temperature on the buyer's line
- Hand lever, gearbox, pneumatic or electric actuator can be fitted before shipment
- Lug hole pattern and flange drilling matched to the buyer's pipe standard
- Private label marking and packaging available on OEM orders
- Mixed-diameter orders combined with other valves in one container
How It Compares With the Alternatives
| DN250 wafer type butterfly valve | The wafer body requires flanges on both sides and cannot be used at the end of a pipe run |
|---|---|
| DN250 gate valve | The gate valve provides a full bore but is longer, heavier, and harder to install in tight spaces |
| DN250 ball valve | The ball valve offers tighter sealing at higher pressure but costs more and requires more clearance for handle sweep |
| DN250 resilient seated gate valve | The gate valve has a full bore but is heavier and longer; the lug butterfly is more compact and easier to maintain |
Installing and Operating This Valve
- Confirm the flange standard and lug hole pattern on the pipe before ordering
- Ensure the pipe end is clean and free of burrs before installing the valve
- Insert the valve and tighten the lug bolts evenly in a cross pattern to avoid distortion
- Open the disc fully after installation and confirm free quarter-turn operation
- Do not use the valve as a pipe end closure during pressure testing unless designed for it
- Cycle the valve periodically on lines that remain in one position for long durations
