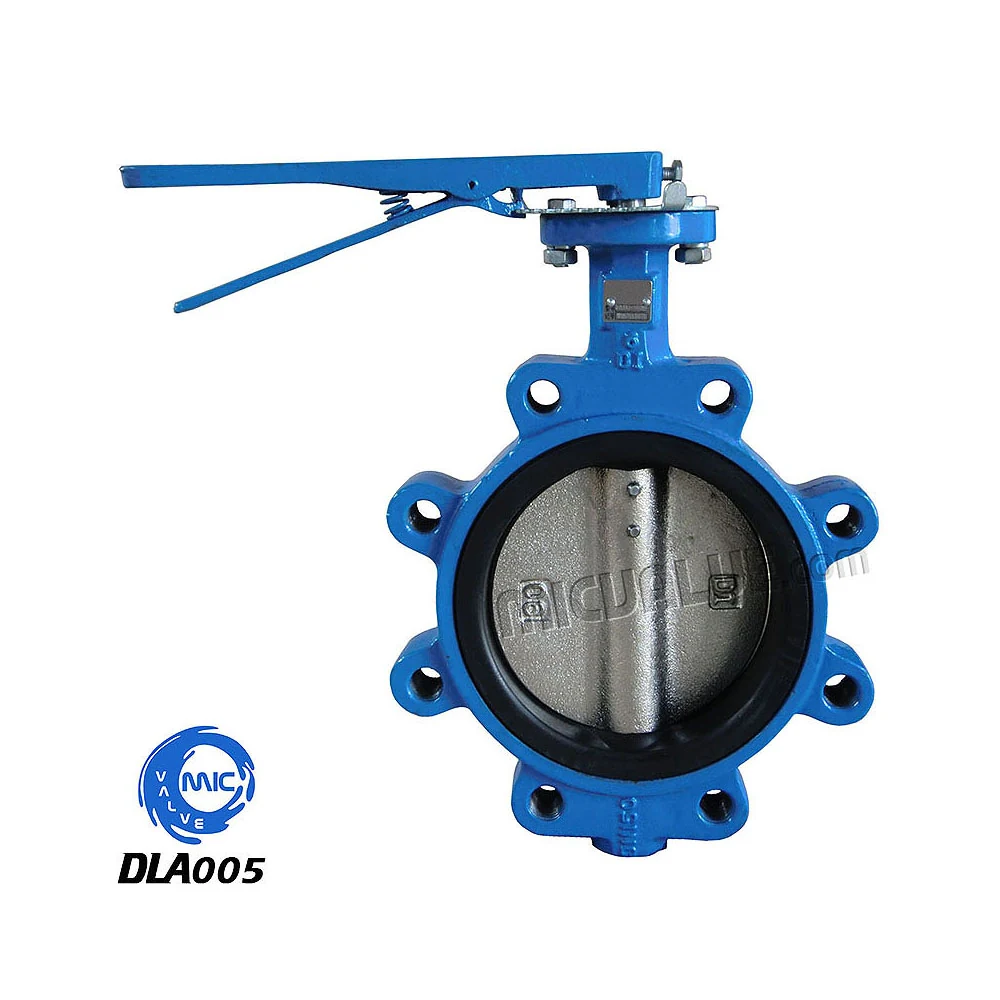

DLA005 Lug Butterfly Valve Malleable Iron Hand Lever
DLA005 is a lug type butterfly valve made from malleable iron with a hand lever, designed for on-off and throttling service in water, low-pressure industrial, and heating systems. It features threaded lug connections on both ends, allowing it to be installed at the end of a pipe run or in a dead-end configuration. The hand lever enables quarter-turn operation for quick isolation or flow control.
| Model Code | DLA005 |
|---|---|
| Product Type | Lug Butterfly Valve[Malleable Iron Hand Lever] |
| Category | Lug Type Butterfly Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | DLA005 |
| Valve Type | Lug type butterfly valve with malleable iron body |
| Operation | Quarter-turn, hand lever |
| Series | DLA lug butterfly valve series |
| Nominal Diameter Range | DN10 to DN2600 mm |
| Nominal Pressure Range | 0.05 to 4.0 MPa |
What This Model Gives You
- Lug body allows installation at the end of a pipe run or in dead-end service where a wafer valve cannot be used
- Malleable iron body provides good strength and impact resistance for medium- and low-pressure applications
- Quarter-turn hand lever operation allows fast and visible valve position confirmation
- Threaded lugs simplify mounting without requiring additional flanges or welding
- Part of a valve programme covering DN10 to DN2600 and 0.05 to 4.0 MPa, enabling consistent sizing across projects
- Built under ISO 9001 and ISO 14001 certified production systems
Problems It Removes
- Wafer valves cannot be used at the end of a pipe run; the lug body solves this limitation
- Older valves with poor thread fit or weak body materials fail under repeated cycling or pressure
- Lack of standardised lug body valves leads to inconsistent spare parts across projects
- Buyers need a single supplier for both small and large diameters in the same valve family
- Short lead times are needed for standard valves in common sizes, not custom-made items
Where It Is Installed
- Isolation at the end of a pipe run in water distribution or heating system branches
- Throttling control in low-pressure process lines where space is limited
- Dead-end service in fire protection risers or auxiliary piping systems
- Replacement of older malleable iron butterfly valves in existing installations
- Use in industrial piping where moderate pressure and corrosion resistance are required
Buyers It Suits
- Piping system designers specifying end-of-line isolation valves for water and heating networks
- Contractors installing valves in retrofit or new construction projects with space constraints
- Facility maintenance teams sourcing durable, replaceable valves for low-pressure systems
- Valve distributors stocking a lug butterfly range from DN10 upward for industrial and municipal use
- EPC buyers sourcing medium- and low-pressure valves for water, heating, and industrial packages
How It Is Built
- Lug type body with threaded lugs on both ends for end-of-line or dead-end installation
- Malleable iron body for strength and durability in medium- and low-pressure service
- Quarter-turn hand lever for manual operation and visual position indication
- Resilient seat for bidirectional sealing in low-pressure applications
- Part of a DLA lug butterfly valve series that continues through larger nominal diameters
- Designed for use in water, low-pressure industrial, and heating systems
Material Selection
- Body, disc, stem, and seat materials are confirmed per order based on the operating medium and temperature
- Seat material follows the resilient seat variant used across the DLA series
- Material certificates are issued with the order upon request
How It Is Made
- Body castings inspected and machined on in-house fine machining equipment
- Disc and stem assembled and tested for alignment and movement
- Seat fitted and the closure member set for proper sealing and travel
- Valve assembled, cycled, and pressure tested before packing
- Marked, wrapped, and crated for container shipment from Tianjin
How It Is Checked
- Dimensional check of lug thread size, bolt hole pattern, and face-to-face length before assembly
- Seat and shell tightness tested on the assembled valve
- Operating torque and full quarter-turn travel verified on every unit
- Testing performed on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Seat and disc variant selected based on the medium and temperature on the buyer's line
- Hand lever, gearbox, or actuator fitted before shipment upon request
- Lug thread standard matched to the buyer's pipe or flange system
- Private label marking and packaging available on OEM orders
- Mixed-diameter orders combined with other valves in one container for shipping
How It Compares With the Alternatives
| Wafer type butterfly valve | The wafer body requires flanges on both sides; the lug body can be used at the end of a pipe run |
|---|---|
| Lug butterfly valve with cast iron body | Malleable iron offers better ductility and impact resistance than cast iron under cyclic loading |
| Gate valve at DN50 | The gate valve provides a full bore but is heavier, longer, and more expensive than a lug butterfly valve |
| Ball valve at DN50 | A ball valve offers tighter sealing at higher pressure but is more costly and requires more clearance for the handle sweep |
Installing and Operating This Valve
- Confirm the lug thread standard and pipe size before ordering to ensure compatibility
- Do not fully close the disc during installation to avoid damaging the resilient seat
- Tighten the lug bolts evenly in a diagonal pattern to prevent body distortion
- After installation, open the disc fully and confirm free quarter-turn operation
- Avoid using the valve as a pressure test plug during system testing
- Cycle the valve periodically if it remains in one position for extended periods
