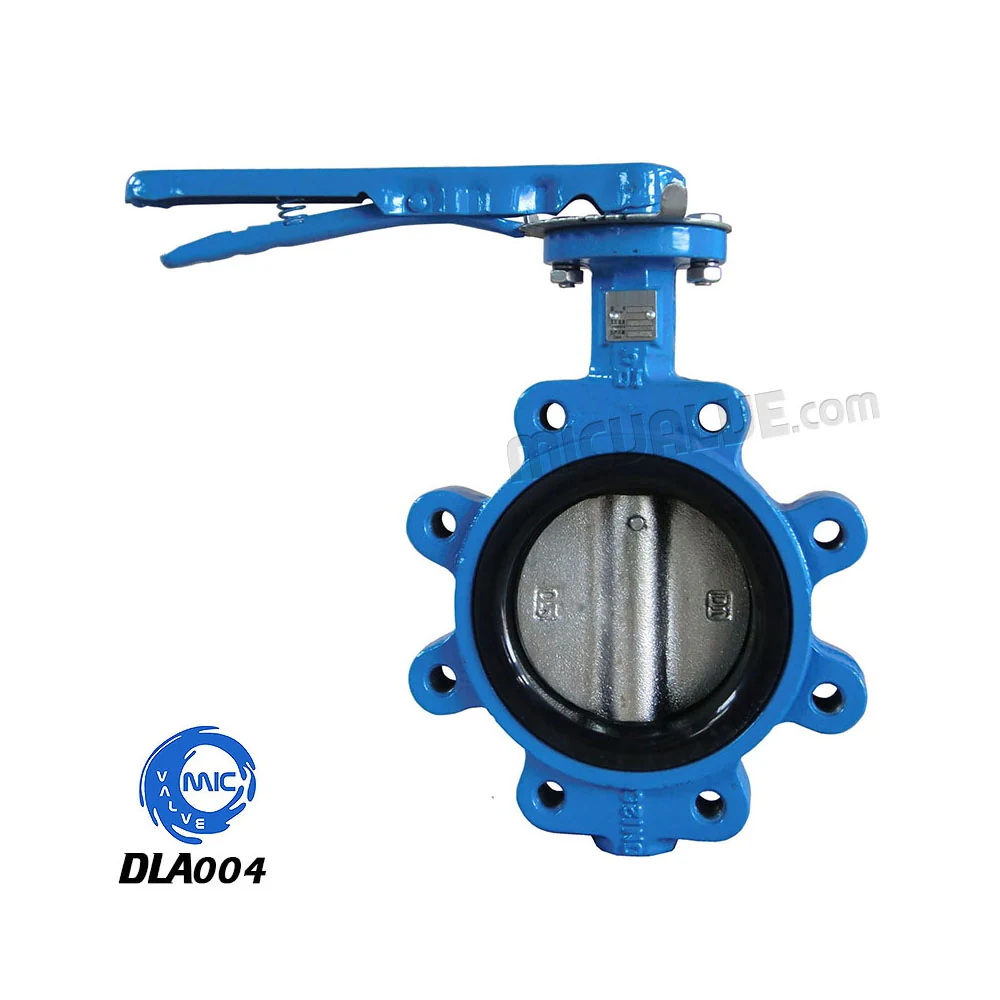

DLA004 Lug Butterfly Valve Carbon Steel Hand Lever
DLA004 is a lug type butterfly valve made from carbon steel with a hand lever, designed for on-off and throttling service in water, low-pressure industrial lines, and similar media. It features threaded lug holes that allow installation at the end of a pipe run or in dead-end service, where a wafer body cannot be used. The carbon steel body provides strength and durability in moderate-pressure applications.
| Model Code | DLA004 |
|---|---|
| Product Type | Lug Butterfly Valve[Carbon Steel Hand Lever] |
| Category | Lug Type Butterfly Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | DLA004 |
| Valve Type | Lug type butterfly valve |
| Body Material | Carbon steel |
| Operation | Manual, hand lever |
| Connection | Lug type, threaded holes for pipe end mounting |
| Series | DLA004 lug butterfly valve series |
What This Model Gives You
- Lug body allows installation at the end of a pipe run or in dead-end service, unlike a wafer body
- Carbon steel construction offers strength and resistance to moderate pressure and wear
- Hand lever enables manual operation with quarter-turn motion for quick isolation
- Threaded lug holes simplify mounting without requiring additional flanges
- Part of a valve programme covering DN10 to DN2600 and 0.05 to 4.0 MPa across multiple families
- Built under ISO 9001 and ISO 14001 certified systems for consistent manufacturing
Problems It Removes
- Wafer valves cannot be used at the end of a pipe run; the lug body solves this installation limitation
- Manual valves with lever operation are easier to operate and confirm position than gear-driven or actuated types in low-duty applications
- Carbon steel provides sufficient strength for low- to medium-pressure systems without the cost of stainless steel
- Lug type valves eliminate the need for extra flanges when installing at the end of a line
- Buyers need a single supplier who can cover a wide range of diameters and pressure ratings
Where It Is Installed
- Isolation of water supply lines at the end of a pipe run in municipal or industrial systems
- Throttling control on low-pressure cooling or return lines in power and heating plants
- Dead-end service in fire protection risers where a valve must be installed at the end of the line
- Maintenance isolation in process piping where flanges are not available on both sides
- Use in petrochemical and chemical plants for on-off control in low-pressure service lines
Buyers It Suits
- Procurement engineers sourcing carbon steel butterfly valves for industrial water and low-pressure lines
- Piping designers specifying end-of-line isolation valves in plant layouts
- EPC contractors standardising on lug type valves for flexibility in installation
- Valve distributors stocking medium- and low-pressure butterfly valves with end-of-line capability
- Maintenance teams needing reliable manual valves for infrequent operation in remote locations
How It Is Built
- Lug type body with threaded holes for bolting to pipe ends
- Carbon steel body suitable for low- to medium-pressure applications
- Hand lever for quarter-turn manual operation
- Resilient seat for bidirectional sealing in on-off service
- Designed for use in water, low-pressure industrial fluids, and similar media
- Part of a product programme covering DN10 to DN2600 and 0.05 to 4.0 MPa
Material Selection
- Body, disc, stem, and seat materials are confirmed per order based on the buyer's medium and operating temperature
- Seat material is selected from the variants available in the DLA series
- Material certificates are issued with the order upon request
How It Is Made
- Carbon steel body cast and machined on in-house fine machining equipment
- Disc and stem assembled and fitted with the resilient seat
- Valve tested for seat tightness and operating torque before final assembly
- Hand lever attached and full quarter-turn operation verified
- Marked, wrapped, and crated for container shipment from Tianjin
How It Is Checked
- Dimensional inspection of lug hole spacing and thread depth before assembly
- Seat and shell tightness tested on the assembled valve
- Operating torque and full quarter-turn travel checked on every unit
- Testing conducted on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Seat and disc variant selected based on the medium and temperature on the buyer's line
- Hand lever can be replaced with a gearbox, pneumatic, or electric actuator before shipment
- Lug hole threading matched to the buyer's pipe standard
- Private label marking and packaging available on OEM orders
- Mixed-diameter orders combined with other valves in one container
How It Compares With the Alternatives
| Wafer type butterfly valve | The wafer body requires flanges on both sides; the lug body allows end-of-line installation |
|---|---|
| Lug type butterfly valve with actuator | The hand lever version is simpler and lower cost for manual operation; the actuated version suits remote or automated control |
| Gate valve at DN50 | The gate valve offers a full bore but is heavier and longer; the lug butterfly is more compact and lighter |
| Ball valve at same size | A ball valve provides tighter sealing at higher pressure but costs more and requires more space for handle swing |
Installing and Operating This Valve
- Confirm the pipe end standard and lug hole threading before ordering
- Ensure the pipe end is clean and free of burrs before mounting the valve
- Tighten the lug bolts evenly in a cross pattern to avoid body distortion
- Open the disc fully after installation and confirm free quarter-turn operation
- Do not use the valve as a pressure test plug during hydrostatic testing
- Cycle the valve periodically if it remains in one position for long periods to prevent seat set
