DLA002 Lug Butterfly Valve Carbon Steel Hand Lever

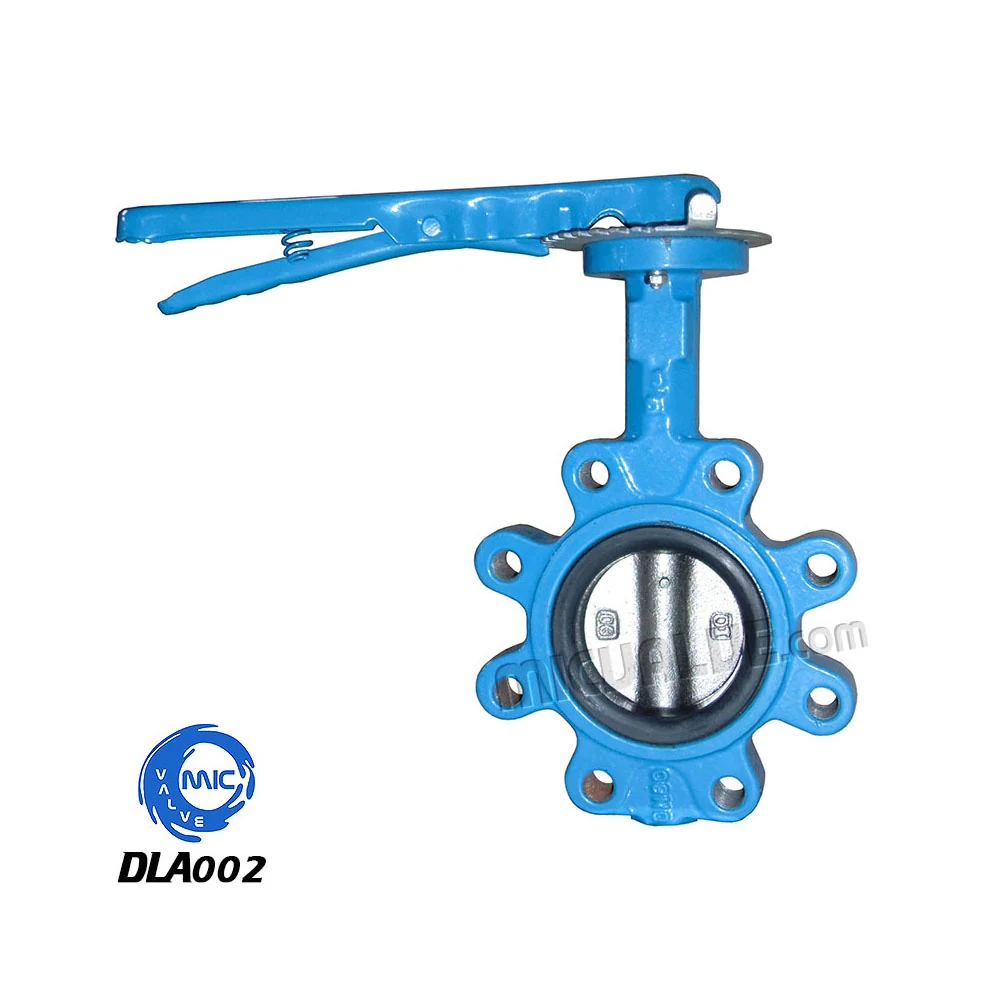

DLA002 is a lug type butterfly valve made from carbon steel with a hand lever, designed for on-off and throttling service in medium- and low-pressure industrial pipelines. It features threaded lugs on the body that allow installation at the end of a pipe run or in dead-end configurations where flanges are not present on both sides. The carbon steel construction provides durability in water, heating, and general industrial service lines.
| Model Code | DLA002 |
|---|---|
| Product Type | Lug Butterfly Valve[Carbon Steel Hand Lever] |
| Category | Lug Type Butterfly Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | DLA002 |
| Valve Type | Lug type butterfly valve |
| Body Material | Carbon steel |
| Operation | Quarter-turn hand lever |
| Nominal Diameter Range | DN10 to DN2600 |
| Nominal Pressure Range | 0.05 to 4.0 MPa |
| Series | DLA lug butterfly valve series |
What This Model Gives You
- Lug body allows installation at the end of a pipe run or in dead-end service where flanges are not present on both sides
- Carbon steel body offers strength and resistance to moderate corrosion in water and low-pressure industrial media
- Hand lever enables manual quarter-turn operation for quick isolation or throttling
- Lug design simplifies maintenance by allowing removal of the valve without disconnecting the entire pipeline
- Part of a valve programme covering DN10 to DN2600 and 0.05 to 4.0 MPa, with over 600 models available
- Built within a factory certified to ISO 9001 and ISO 14001 for consistent quality and environmental control
Problems It Removes
- Wafer valves cannot be used at the end of a pipe run because they require flanges on both sides
- Lack of a reliable end-of-line isolation valve leads to downtime during maintenance
- Inconsistent valve types across a project increase spare parts inventory and complexity
- Manual operation is needed in areas without compressed air or electrical power for actuators
- Buyers need a single supplier who can provide both small and large diameter valves in the same series
Where It Is Installed
- Isolation of water supply lines in municipal heating systems where the valve is installed at the end of a run
- Throttling control in low-pressure cooling water circuits in power plants and industrial facilities
- End-of-line service in petrochemical process piping where flanges are not available on both sides
- Maintenance access in sewage treatment plant pipelines using the lug design for easy removal
- Retrofitting into existing pipe runs where space or flange availability limits the use of wafer valves
Buyers It Suits
- Procurement engineers sourcing carbon steel butterfly valves for industrial water and heating systems
- EPC contractors standardising on lug type valves for end-of-line isolation in multiple projects
- Plant maintenance teams needing valves that can be removed without disconnecting the entire pipeline
- Valve distributors stocking a range of lug butterfly valves from DN10 upward for diverse applications
- Design engineers specifying a valve that can be used in both dead-end and in-line configurations
How It Is Built
- Lug type body with threaded lugs for bolting to pipe flanges at one end
- Carbon steel body suitable for medium- and low-pressure service
- Quarter-turn hand lever for manual operation
- Resilient seat for bidirectional sealing in water and similar media
- Designed for use in DN10 to DN2600 nominal diameter range with pressure ratings from 0.05 to 4.0 MPa
- Part of a product programme with over 600 models and multiple variants across families
Material Selection
- Body, disc, stem, and seat materials are confirmed per order based on the medium and operating temperature
- Seat and disc options follow the variants offered across the DLA lug series
- Material certificates are issued with the order upon request
How It Is Made
- Body castings inspected and machined on in-house fine machining equipment
- Disc and stem assembled and tested for alignment and movement
- Seat fitted and closure member set for consistent sealing
- Valve assembled and pressure tested before packing
- Marked, wrapped, and crated for container shipment from Tianjin
How It Is Checked
- Dimensional checks of lug position and flange bolt pattern before assembly
- Seat and shell tightness tested on the assembled valve
- Operating torque and full quarter-turn travel verified on every unit
- Testing performed on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Seat and disc variant selected based on the medium and temperature on the buyer's line
- Hand lever, gearbox, or actuator fitted before shipment upon request
- Flange drilling matched to the standard used on the buyer's pipework
- Private label marking and packaging available on OEM orders
- Mixed-diameter orders combined with other valves in one container
How It Compares With the Alternatives
| Wafer type butterfly valve | The wafer body requires flanges on both sides; the lug body can be used at the end of a pipe run |
|---|---|
| Lug butterfly valve with actuator | The hand lever version is lower cost and simpler for manual operation; the actuated version suits automated systems |
| Gate valve at DN100 | The gate valve offers a full bore but is heavier and longer; the lug butterfly valve is more compact and lighter |
| Ball valve at DN100 | The ball valve provides tighter shutoff at higher pressure but costs more and requires more clearance for the handle sweep |
Installing and Operating This Valve
- Confirm the flange standard and bolt pattern on the pipe before ordering
- Ensure the pipe end is clean and free of burrs before installing the valve
- Tighten the lug bolts evenly in a cross pattern to avoid misalignment
- Open the disc fully after installation and confirm free quarter-turn travel
- Do not use the valve as a pressure test plug during hydrostatic testing
- Cycle the valve periodically if it remains in one position for extended periods to prevent seat sticking
