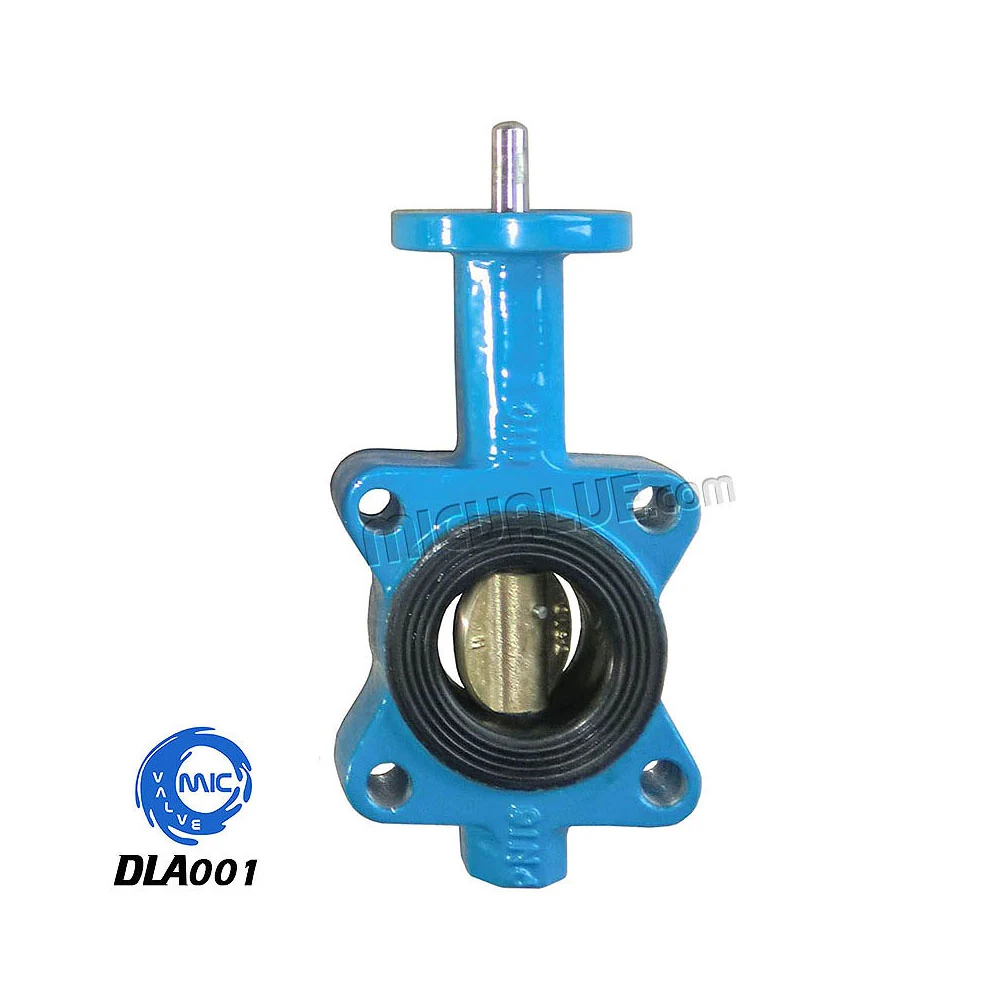

DLA001 Lug Butterfly Valve Vulcanized Seat and Bare Shaft
DLA001 is a lug type butterfly valve with a vulcanized seat and bare shaft, designed for on-off and throttling service in water, low-pressure industrial lines, and similar applications. The lug body allows installation at the end of a pipe run or in dead-end service, where a wafer body cannot be used. The bare shaft stem enables direct attachment of levers, gearboxes, or actuators without additional components.
| Model Code | DLA001 |
|---|---|
| Product Type | Lug Butterfly Valve[Vulcanized Seat and Bare Shaft] |
| Category | Lug Type Butterfly Valves |
| Manufacturer | Tianjin MIC Valve Co., Ltd. |
| Size and Pressure Rating | Confirmed on quotation |
| Certification | ISO 9001 and ISO 14001 certified plant |
| Model | DLA001 |
| Valve Type | Lug type butterfly valve with vulcanized seat and bare shaft |
| Connection | Lug body with threaded holes for through bolts |
| Operation | Quarter-turn, lever, gearbox or actuator |
| Seat Material | Vulcanized seat |
| Stem Type | Bare shaft |
| Series | DLA001 lug butterfly valve series |
What This Model Gives You
- Lug body allows installation at the end of a pipe run or in dead-end service
- Vulcanized seat provides reliable bidirectional sealing in water and low-pressure media
- Bare shaft stem simplifies actuator or lever mounting without extra fittings
- Quarter-turn operation enables fast and clear valve position indication
- Part of a valve programme covering DN10 to DN2600 and 0.05 to 4.0 MPa
- Built under ISO 9001 and ISO 14001 certified production systems
Problems It Removes
- Wafer butterfly valves cannot be used at the end of a pipe run due to lack of clamping flanges on both sides
- Older valves with complex shafts require extra fittings for actuator mounting
- Lack of standard lug body options in low-pressure applications leads to custom builds
- Inconsistent seat materials cause leaks in water and low-pressure services over time
- Buyers need a single supplier for both small and large diameter lug valves in one series
Where It Is Installed
- End-of-line isolation in water supply and drainage systems where flanges are only on one side
- Dead-end service in heating and cooling circuits where the valve must seal against one open end
- Throttling control in low-pressure process lines in chemical and pharmaceutical plants
- Isolation on fire protection risers where the valve is installed at the end of a branch
- Maintenance access points in power plant auxiliary systems requiring end-of-line shut-off
Buyers It Suits
- Water utility engineers specifying end-of-line valves for municipal distribution
- HVAC and fire protection contractors needing valves for dead-end branch isolation
- Plant maintenance teams replacing older valves in tight or constrained piping layouts
- EPC buyers sourcing a lug butterfly range that covers small to large diameters
- Valve distributors stocking a reliable lug butterfly option for industrial and municipal projects
How It Is Built
- Lug body with threaded holes for through bolts on both ends
- Vulcanized seat providing bidirectional sealing
- Bare shaft stem for direct actuator or lever attachment
- Quarter-turn operation for manual, gearbox, or actuated control
- Part of the DLA series that continues through DN10 to DN2600
- Designed for medium- and low-pressure service up to 4.0 MPa
Material Selection
- Body, disc, stem, and seat materials are confirmed per order based on the buyer's medium and temperature
- Vulcanized seat is standard; other seat variants are available within the DLA series
- Material certificates are issued with the order upon request
How It Is Made
- Body castings inspected and machined on in-house fine machining equipment
- Disc and stem assembled with bare shaft configuration
- Vulcanized seat fitted and aligned for consistent closure
- Valve assembled, cycled, and pressure tested before packing
- Marked, wrapped, and crated for container shipment from Tianjin
How It Is Checked
- Dimensional check of lug hole spacing and flange pattern before assembly
- Seat and shell tightness tested on the assembled valve
- Operating torque and full quarter-turn travel verified on every unit
- Testing performed on the 10 sets of imported inspection and testing equipment
- Records maintained under the ISO 9001 quality management system
Certificates Issued With This Valve
- ISO 9001 quality management system certification
- ISO 14001 environmental management system certification
Certification statements are limited to the management system certificates the factory actually holds. Product-level approvals for your market are confirmed before order.
What Can Be Changed
- Seat material variant selected based on the buyer's medium and temperature
- Lever, gearbox, pneumatic or electric actuator fitted before shipment
- Lug hole drilling matched to the buyer's flange standard
- Private label marking and packaging available on OEM orders
- Mixed-diameter orders combined with other valves in one container
How It Compares With the Alternatives
| Wafer type butterfly valve | The wafer body requires flanges on both sides; the lug body can be used at the end of a pipe run |
|---|---|
| Lug butterfly valve with shaft extension | The bare shaft version reduces component count and simplifies actuator mounting |
| Gate valve at same diameter | The gate valve offers a full bore but is heavier and longer; the lug butterfly is more compact and lighter |
| Ball valve at DN50 | A ball valve seals tighter at higher pressure but costs more and requires more space for actuator clearance |
Installing and Operating This Valve
- Confirm the flange standard and lug hole pattern on the pipe before ordering
- Ensure the pipe end is clean and free of burrs before installing the valve
- Tighten the through bolts evenly in a cross pattern to avoid seat distortion
- Open the disc fully after installation and confirm free quarter-turn travel
- Do not use the valve as a pressure test plug during hydrostatic testing
- Cycle the valve periodically on lines that remain in one position for extended periods
