Product Overview
A 24 kV pin post porcelain insulator with 600 mm creepage and a 13 kN rated electromechanical failing load. Lightning impulse withstand is 125 kV with 75 kV dry and 55 kV wet power frequency withstand, and the power frequency breakdown voltage is 160 kV. It is the mid-size member of the ZS pin post family, below the 770 mm ZS-770.
Why Buyers Choose This Part
- 600 mm creepage at 24 kV for moderately polluted sites
- 13 kN rated electromechanical failing load
- 125 kV lightning impulse withstand with a 160 kV breakdown voltage
- Pin post mounting keeps the conductor rigid without a string
Where It Is Used
- 24 kV distribution lines through moderately polluted air
- Compact line designs where a suspension string will not fit
- Upgrading a line section that flashes over on standard insulators
- New construction specified at 600 mm creepage
Who It Suits
- Line engineers specifying creepage by pollution class
- Contractors building compact 24 kV lines
- Utilities reducing pollution-related outages
What Goes Wrong Without The Right Part
- Standard pin insulators that cannot hold 24 kV in dirty air
- Pole designs with no room for a longer insulator string
- Lightning trips where impulse withstand is marginal
- Choosing between a 600 mm and 770 mm creepage part without data
How It Is Built
- Rated voltage 24 kV
- 600 mm creepage distance
- 13 kN rated electromechanical failing load
- 125 kV lightning impulse withstand voltage
- 75 kV power frequency dry withstand voltage
- 55 kV power frequency wet withstand voltage
- 160 kV power frequency breakdown voltage
Published Figures For This Product
Every value below comes from the manufacturer data for this item. Figures not listed are confirmed against the drawing before an order is placed.
| Voltage | 24 kV |
|---|---|
| Creepage Distance | 600 mm |
| Rated Electromechanical Failing Load | 13 kN |
| Lightning Impulse Withstand Voltage | 125 kV |
| Power Frequency Dry Withstand Voltage | 75 kV |
| Power Frequency Wet Withstand Voltage | 55 kV |
| Power Frequency Breakdown Voltage | 160 kV |
Materials
- Electrical porcelain body
- Galvanised metal base fitting
Process
- Forming
- Glazing
- Firing
- Base fitting assembly
- Electromechanical proof test
Testing
- Electromechanical proof loading at the 13 kN rating
- Lightning impulse withstand verification at 125 kV
- Wet power frequency withstand test at 55 kV
Certification
- ISO 9001 quality management system
Customisation Options
- ZS-770 available where 770 mm creepage is required
- Base fitting matched to your bracket
- Produced to drawing or sample
How It Compares
| ZS-770 | The ZS-770 adds 170 mm of creepage and raises the electromechanical rating from 13 kN to 16 kN, with a 190 kV impulse withstand. Specify it only where pollution is severe. |
|---|---|
| ALP22-450 pin insulator | The ALP22-450 is a 22 kV part at 450 mm creepage and 11 kN. The ZS-600 is the step up for 24 kV service with more creepage. |
Before You Order And After It Arrives
- Choose between ZS-600 and ZS-770 from the measured site pollution class
- Keep line pull within the 13 kN electromechanical rating
- Mount on a bracket square to the line
- Inspect shed undersides where deposits accumulate first
ZS-600 Pin Post Insulator 24kV 600mm Creepage Questions
Related Products
Pin Type Insulators
N95-2 Low Voltage Porcelain Pin Insulator
Pin Type Insulators
- Outer Diameter D 95 mm
- Height H 100 mm
- Top Diameter D1 50 mm
N80 Low Voltage Pin Ceramic Insulator
Pin Type Insulators
- Outer Diameter D 80 mm
- Height H 87 mm
- Top Diameter D1 42 mm
ShF-20G1S High Voltage Porcelain Pin Insulator
Pin Type Insulators
- Distribution Class 20 kV
ShF-10G Ceramic Pin Insulator 10kV 256mm Creepage
- Class Shf-10g Designation 10 kV
- Creepage Not Less Than 256 mm
- Puncture Voltage In Insulating Medium 160 kV
Related Cases Guides And Applications
The Five Jobs An Insulator Does Inside A High Voltage Transformer
How To Choose Creepage Distance For A Polluted Site
Toughened Glass And Porcelain Insulators Compared
Power Utilities And Substations
Overhead Line Contractors
Manufacturing To Your Drawing Or Sample
Selecting Creepage For The Pollution At Your Site
Quote For ZS-600 Pin Post Insulator 24kV 600mm Creepage
Send the quantity and any drawing you have. Enquiries are answered within 24 hours, and we produce to customer drawings and samples.

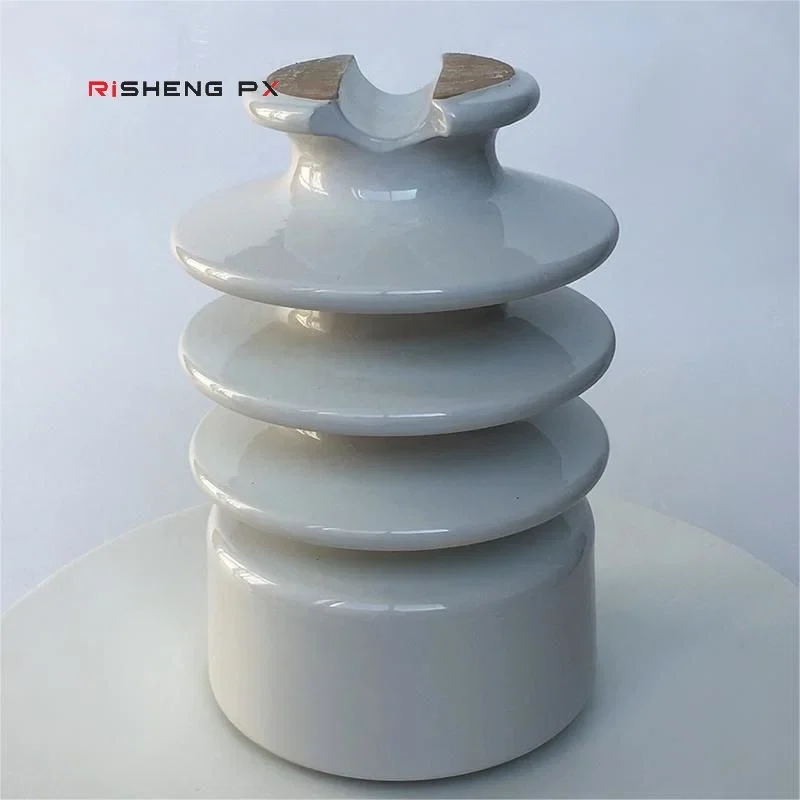

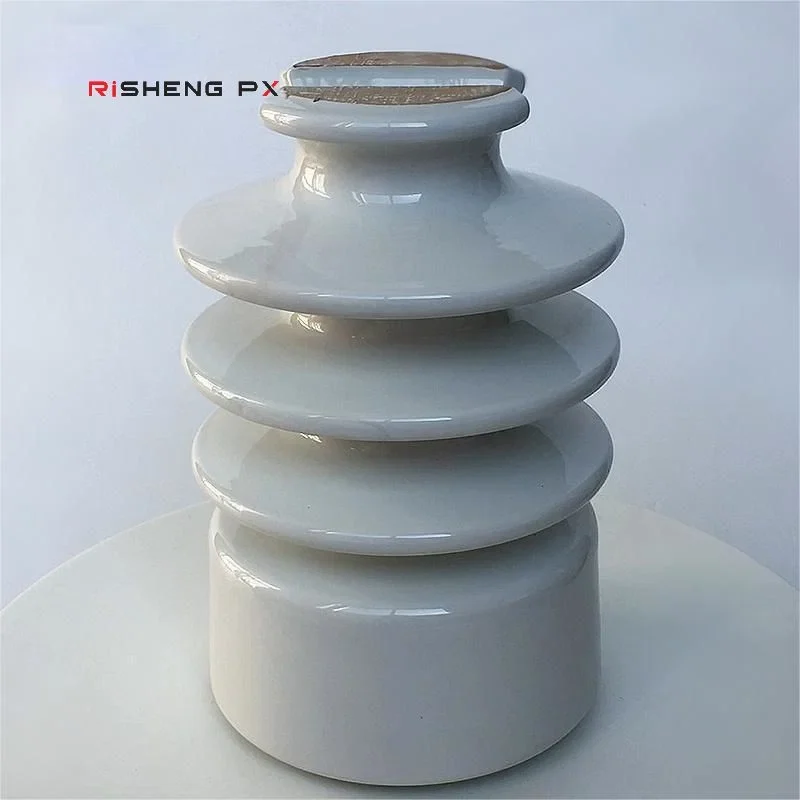

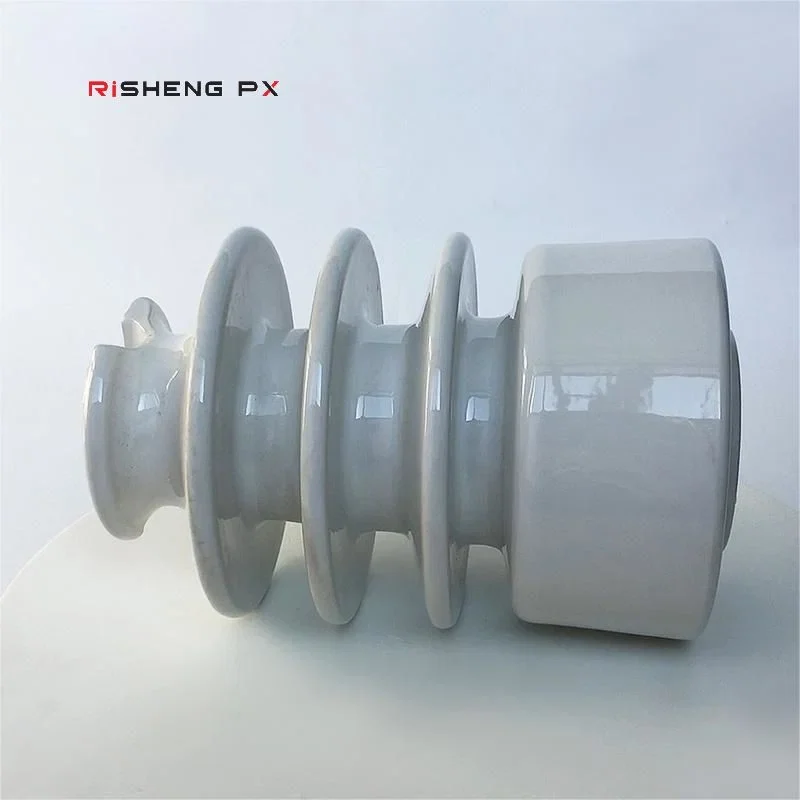

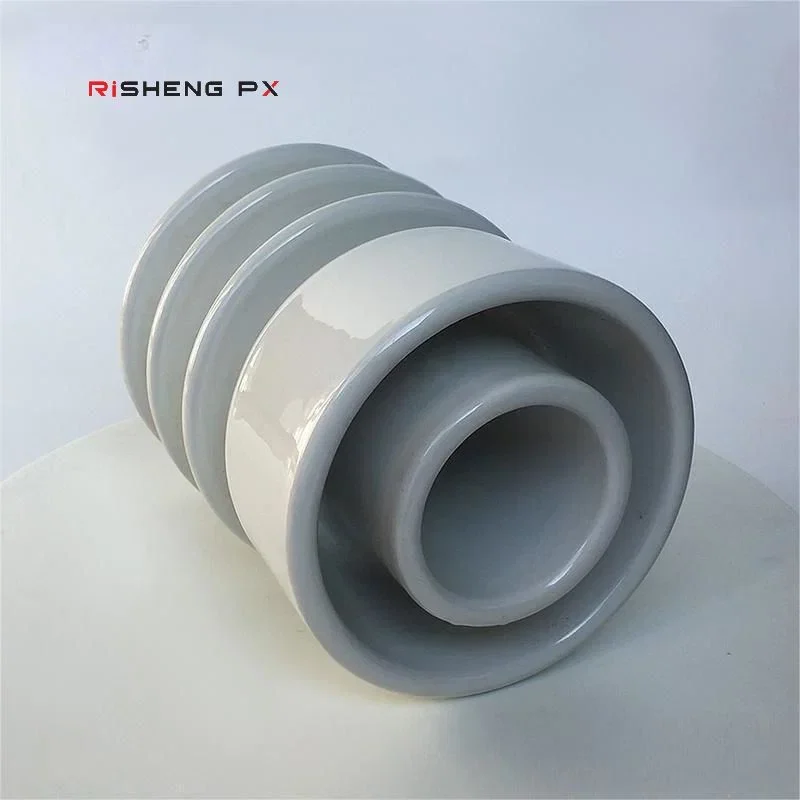

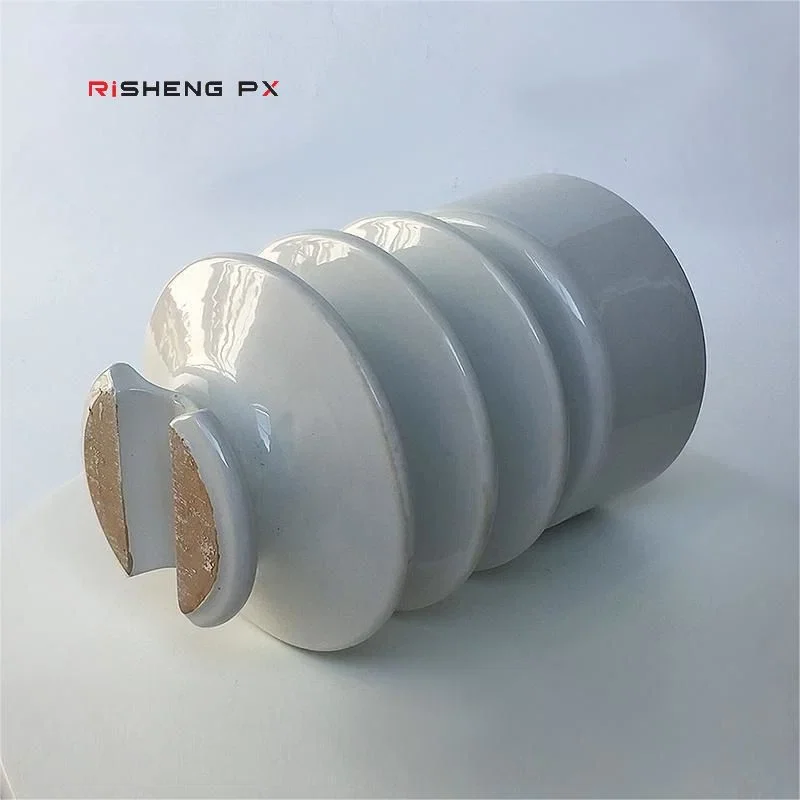

Product Photographs
