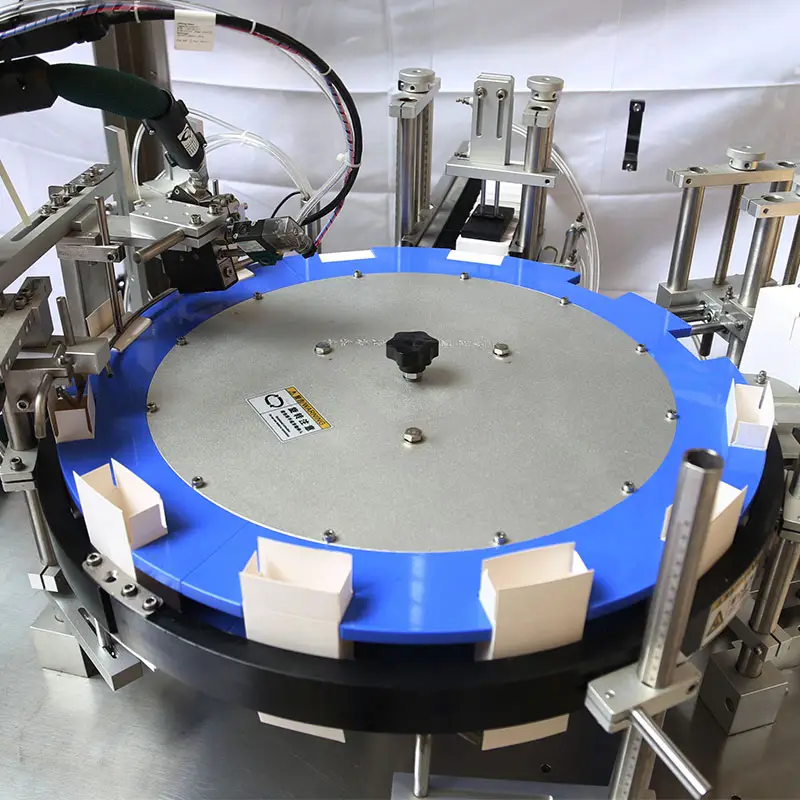

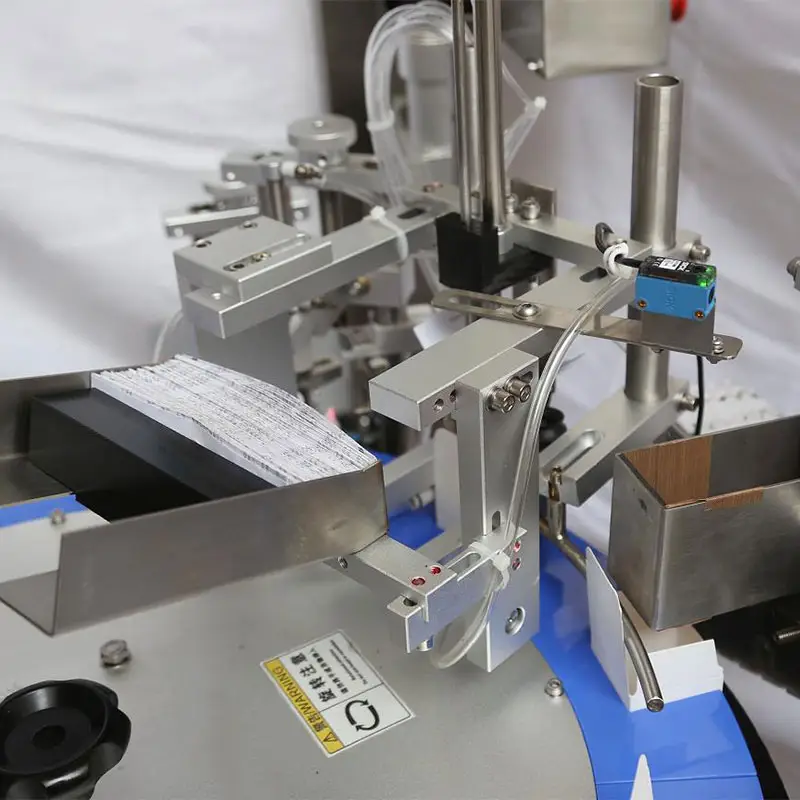

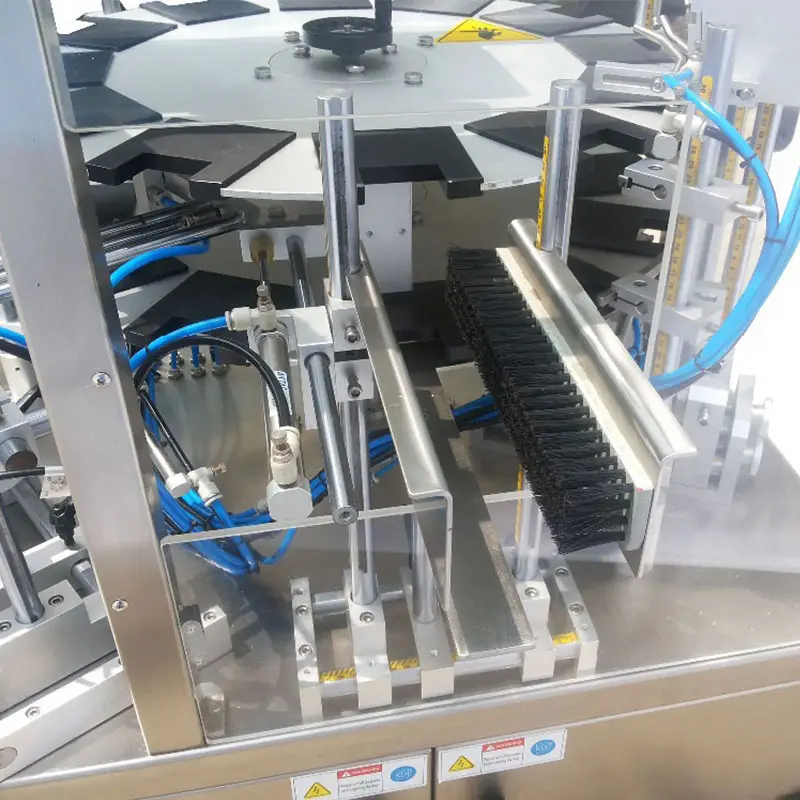

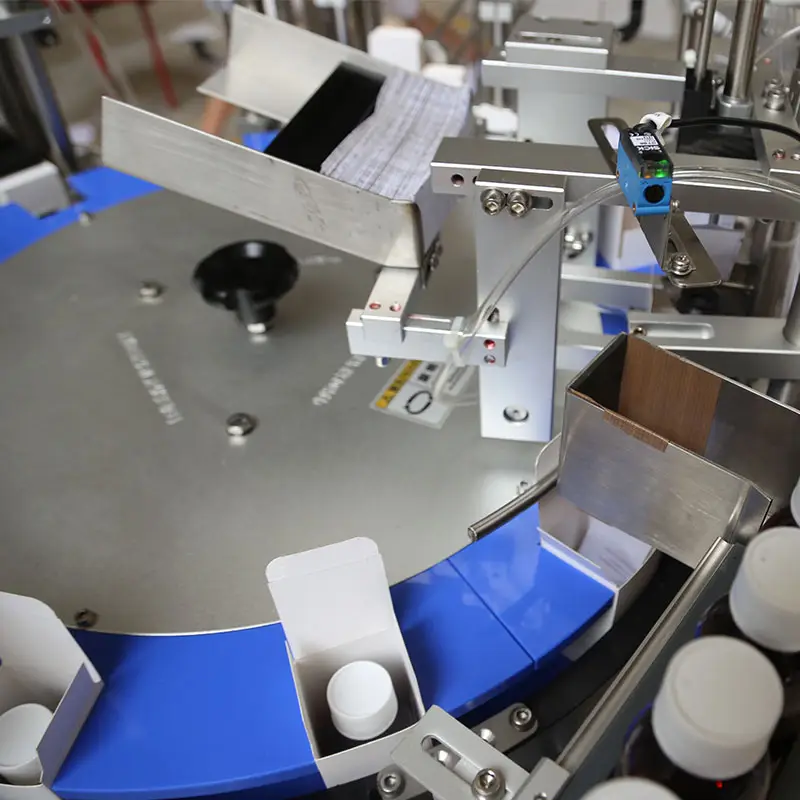

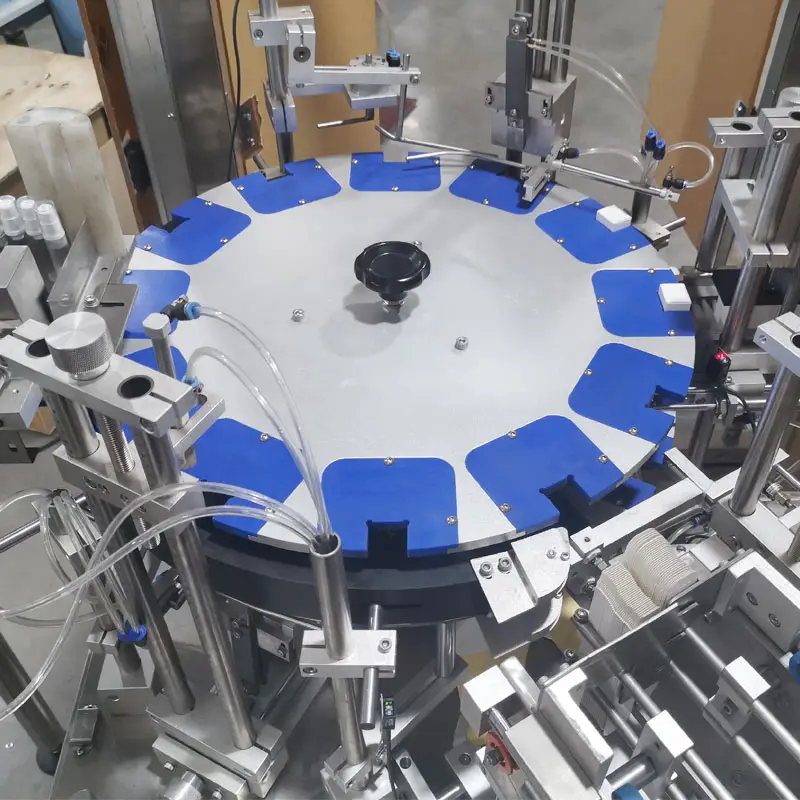

Vertical Cartoning Machine is an intermittent motion automatic box packing machine, capable of packing reverse type tuck-in cartons for various industries like Pharma, Food, Cosmetics, etc. This equipment is specially designed for small output and multi-size carton packaging. Small footprint, economical and practical, and suitable for a variety of boxes. Save labor cost, 40 boxes per person per minute, greatly improv
| Model | BZVC-50 |
|---|---|
| Productivity | 20-40 boxes/min |
| Box size max. | 250 × 78 × 78 mm |
| Box size min. | 60 × 25 × 25 mm |
| Carton board | 250-350 g/m² |
| Motor | 1.5 kW |
| Dimension | 1400 × 900 × 1450 mm |
| Weight | About 250 kg |
Vertical Cartoning Machine having branded components for electric and pneumatic functions. The simple and steady design confirms the machine’s performance and stability. With various arrangements of feeders, it can auto-feed, Bottles, Vials, Blisters, Tubes, Strips & Pouches to be manually fed. (Leaflet auto-feeding is available.) This vertical box packing machine is specially designed to pack small quantities of multi-size boxes. With low cost and small floor space. Suitable for all sizes of boxes. It takes a short time to change specifications and change the die. Our vertical box packing machine adopts an advanced PLC control system combined with a 5.7 color touchscreen control panel that can easily set and change packaging parameters. We can also supply a horizontal box packing machine. The automatic vertical box packing machine is a kind of machine designed by our company on the basis of introducing foreign advanced technology, and it is manufactured strictly according to GMP requirements of the pharmaceutical industry. With high efficiency, high-performance production capacity, manual-folding, and transmission, carton forming, and rear push mechanism-related technology up to E
Biaozan builds the machine in Jiading and can ship it as a standalone unit or as part of a packing cell with a cartoner or labeler from the same catalogue.
This page belongs to the Carton Box Packing family. Send a sample pack photo so the hopper, nozzle, and mold can be confirmed.
The 2022 catalogue states that Biaozan engineers can supply door-to-door commissioning and hold spare parts stock.
Email or message WhatsApp +86 182 2162 3721 with target speed, fill volume, and tube or cup size.
