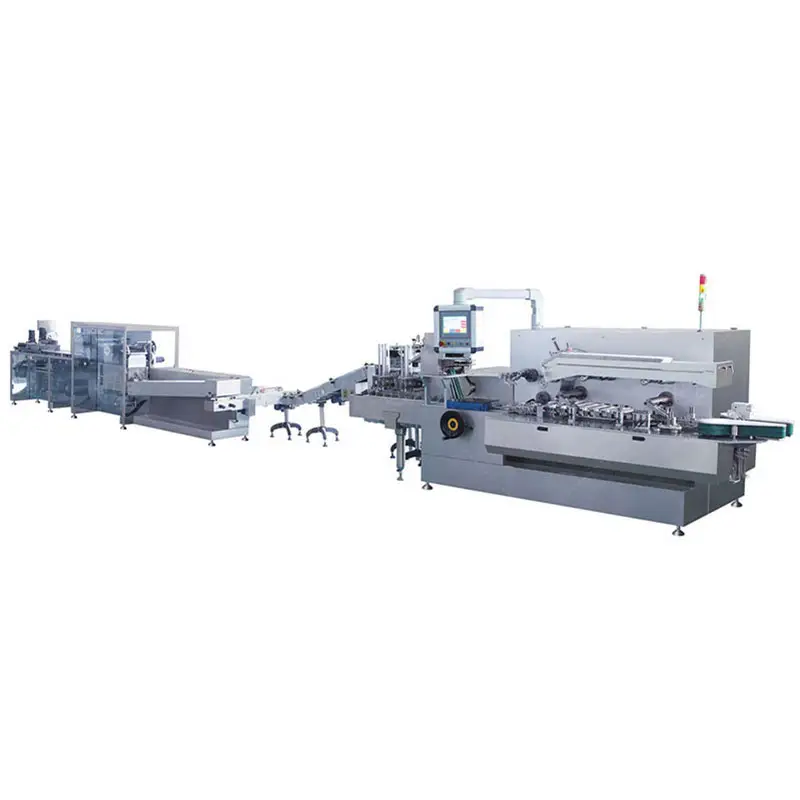

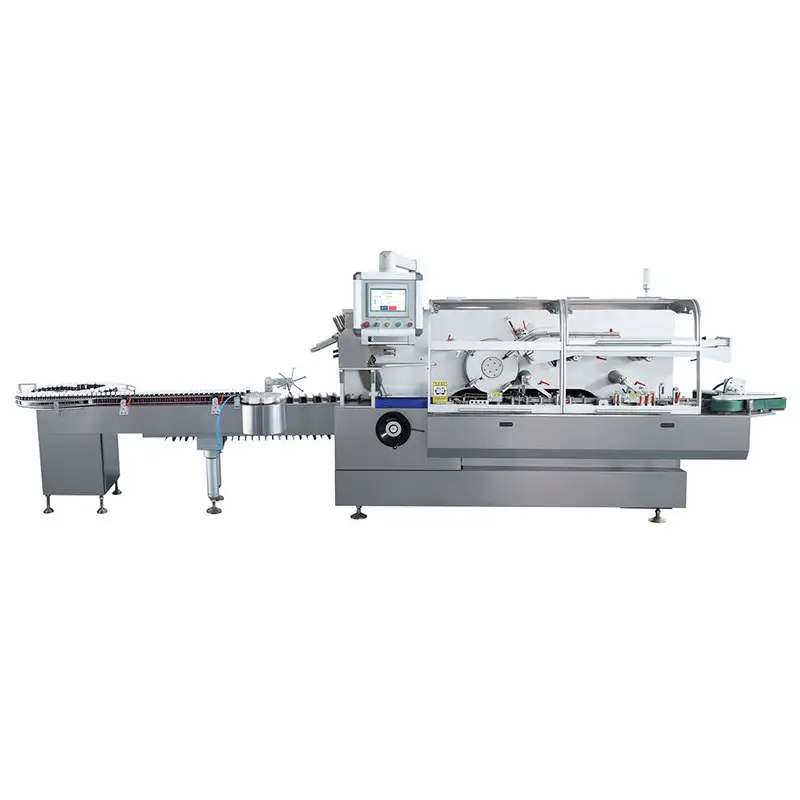

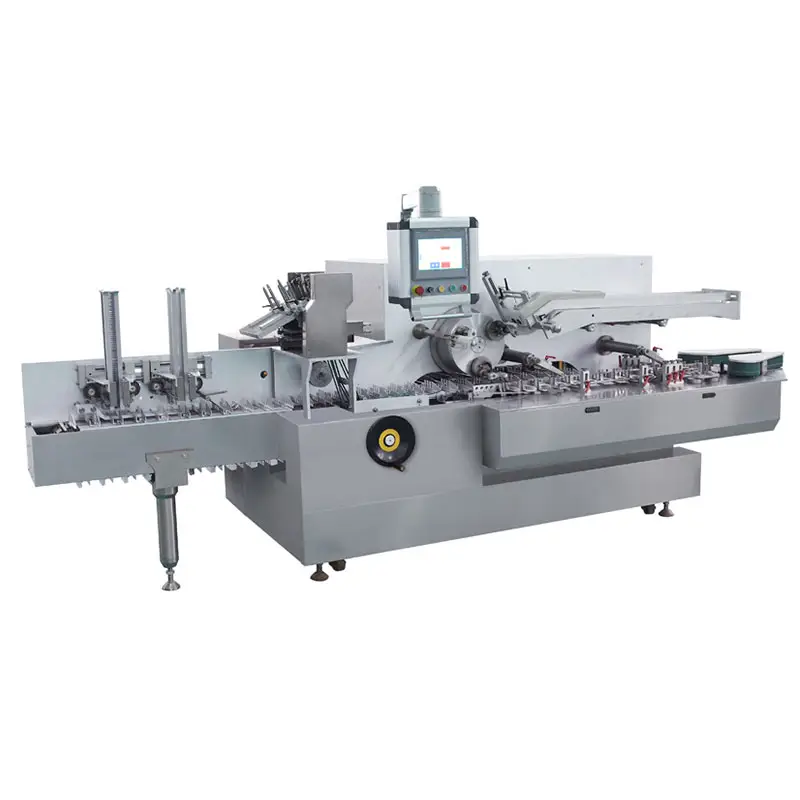

Cartoning Machine – HTZH-200 is designed for continuous operation and allows high-speed operation for greater output. The cartoning machine synchronizes operation in combination with any tube filling, bottling, and blister machine. This cartoning machine can be used to make makeup boxes, pill boxes, medicine boxes, face cream boxes, body cream boxes, wine bottle boxes, mosquito incense boxes, etc.
| Model | HTZH-200 |
|---|---|
| Productivity | 100-200 boxes/min |
| Box size | L70-200 × W35-75 × H15-70 mm |
| Carton board | 250-350 g/m² |
| Power | 5 kW, 380 V / 50 Hz |
| Air | ≥ 0.6 MPa |
| Dimension | 4800 × 1600 × 1860 mm |
| Weight | 3000 kg |
HTZH-200 box packing machine is a new model in which innovation design is based on bringing in foreign advanced technology, also strictly according to the pharmaceutical industry “GMP” standard to manufacture. With high efficiency, high-performance production capacity, leaflet folding and conveying, carton opening and forming, posterior pushing structure, and related technology all reach Europe and USA standards. Simple design and posterior continuous pushing structure make operation and maintenance more convenient; three equal rotation opening cartons under the twice pre-forming device ensure that the carton opens and forms completely. box packing machine is suitable for automatically inserting ALU-PVC blister, bottles, soft tubes, soft AL/AL strips, and pouches into cartons. HTZH-200 box pacåking machine is suitable for medicines of aluminum-plastic plates, round bottles, a bottle of the opposite sex, food, school supplies, health care products, toys, cosmetics, auto supplies, toothpaste, paper towels, office supplies, hardware, household paper, poker and similar items such as box packaging, can automatically complete the manual-folding, open cartons, boxes, printing batch number
Biaozan builds the machine in Jiading and can ship it as a standalone unit or as part of a packing cell with a cartoner or labeler from the same catalogue.
This page belongs to the Carton Box Packing family. Send a sample pack photo so the hopper, nozzle, and mold can be confirmed.
The 2022 catalogue states that Biaozan engineers can supply door-to-door commissioning and hold spare parts stock.
Email or message WhatsApp +86 182 2162 3721 with target speed, fill volume, and tube or cup size.
