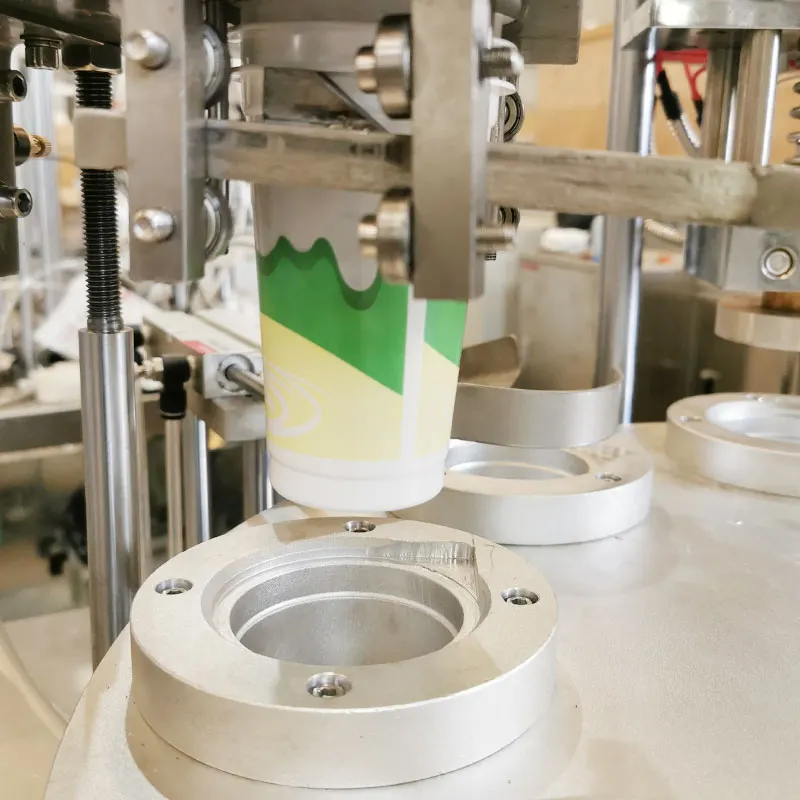

Cup Filling Machine – HTC-1 adopts pneumatic gap operation mode. The electric appliance adopts a German programmable logic controller, which has the functions of automatic cup drop, filling, vacuum film, single-channel heat sealing, and automatic discharging of the finished product. Suitable For: Yogurt, Water, Ice Cream, Sauce, Honey, Seasoning, etc.
| Type | Rotary cup filling sealing |
|---|---|
| Capacity | 600-800 cups/h |
| Fill range | 50-300 ml |
| Tank | 30 L |
| Cups | Plastic cups, paper cups |
| Dimension | 1250 × 1250 × 1650 mm |
| Weight | 250 kg |
HTC-1 Cup Filling Machine is suitable for all kinds of imported and domestic aluminum-plastic, PP, PZ, CPP, and other composite roll packaging and sealing materials. It is widely used in plastic boxes for beverages, milk, yogurt, dairy products, soy products, fruit frozen brewing, and other industries (The packaging of the cup) has the characteristics of uniform sealing, neat sealing, and good sealing. We provide high-volume Rotary Cup Machines for many industries including food, dairy, and cosmetics. These machines are designed to densest, fill, seal, lid, and eject your products. Our Rotary Cup Machines are fully automatic and can deliver up to 30 cups per minute per lane, with configurations of up to 3 lanes. The entire line of Volumetric Technologies cup machines comes equipped with advanced design features to guarantee products are packaged to your specifications every time. sealing strength is high, and the sealing performance is good. The whole machine adopts a programmable logic control system, and the body is made of stainless steel, which meets relevant food hygiene standards. The operating parts of the equipment adopt a pneumatic control system, which simplifies the mech
Biaozan builds the machine in Jiading and can ship it as a standalone unit or as part of a packing cell with a cartoner or labeler from the same catalogue.
This page belongs to the Coffee Capsule & Cup Filling family. Send a sample pack photo so the hopper, nozzle, and mold can be confirmed.
The 2022 catalogue states that Biaozan engineers can supply door-to-door commissioning and hold spare parts stock.
Email or message WhatsApp +86 182 2162 3721 with target speed, fill volume, and tube or cup size.
