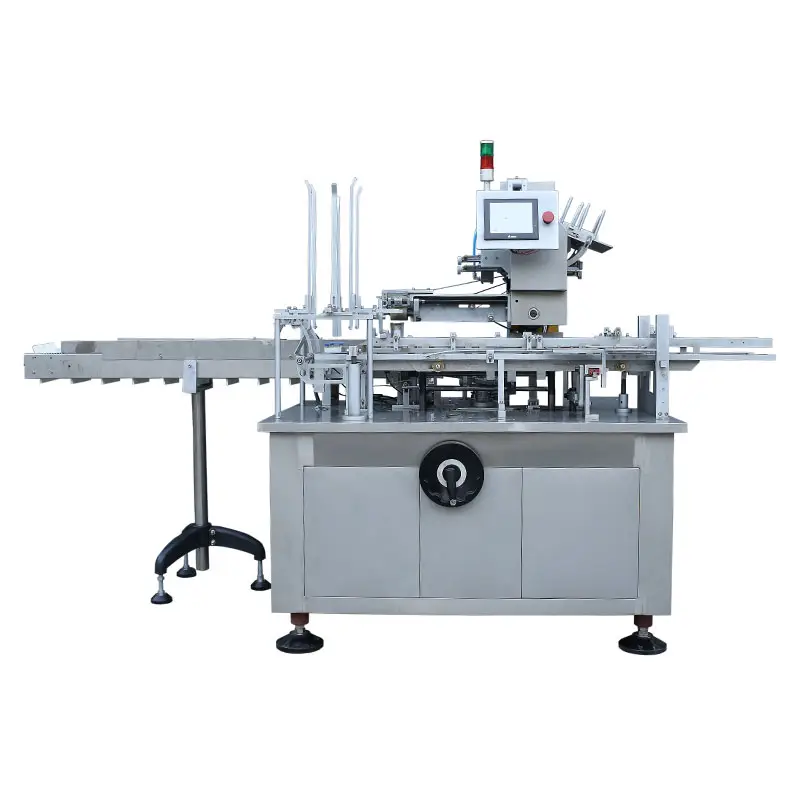

Horizontal Cartoning Machine – HTZH-80 is widely used for different packing including drugs, food, commodity, and cosmetics. For the drug industry such as a cover box for solid torch and capsule, softbox for liquid paste, grease, and colloid, tray box for the vial, ampule bottle, and injector, as well as bottle box for solid and liquid drug and bag box for powder and grain products.
| Model | HTZH-80 |
|---|---|
| Productivity | 40-80 pcs/min |
| Box size (L×W×H) | (50-210) × (20-90) × (20-90) mm |
| Carton board | 250-350 g/m² |
| Motor | 1.5 kW |
| Air | 0.6 MPa, 50-70 L/min |
| Dimension | 1000 × 1250 × 1500 mm |
| Weight | About 950 kg |
Horizontal Cartoning Machine – HTZH-80 Also known as the small box packaging machine / Cartoner , can be applied to bottles and column product boxing. The products will arrange into a tray automatically by the bottle arranging machine and the tray will be separated one by one, and then conveyed to the loading station of the arranged machine, then, bottles will be packed into the tray automatically. Then, conveyed to the paper box packing machine to complete the tray into box functions. one size of product specifications box in one carton machine. With no carton box stop function and alarm. HTZH-80 Horizontal Cartoning Machine is a new model developed by our company in combination with advanced technology at home and abroad. It is a high-tech product integrating light, electricity, gas, and machinery. As a result, this food paper box packing machine’s performance and work efficiency have been greatly improved, the requirements of fast are realized, and the stable and reliable state is still maintained during fast operation. Features Using PLC automatic control system, frequency control; speed can be adjustable. Cam drive system, stable operation, reliable performance. Different size
Biaozan builds the machine in Jiading and can ship it as a standalone unit or as part of a packing cell with a cartoner or labeler from the same catalogue.
This page belongs to the Carton Box Packing family. Send a sample pack photo so the hopper, nozzle, and mold can be confirmed.
The 2022 catalogue states that Biaozan engineers can supply door-to-door commissioning and hold spare parts stock.
Email or message WhatsApp +86 182 2162 3721 with target speed, fill volume, and tube or cup size.
