Machine range
Fourteen machines covering the complete paint roller line and the core of a paint brush line. Each one can be supplied on its own or as part of a full production line built to your roller sizes and output target.
Paint roller machines
- SHCB01
Automatic Mini Paint Roller Thermofusion Winding Machine
Winds and thermofusion-bonds fabric onto PP cores from 11.5 mm to 28 mm — the mini and trim roller sizes — with automatic tube loading and a single operator.
Specifications - SHCB02
Automatic Paint Roller Thermofusion Winding Machine
Our patented thermofusion process bonds fabric to the PP core without adhesive — the heart of a modern roller cover line, running 2,000 pieces an hour with one operator.
Specifications - YCL03Photo on request
Automatic Paint Roller Hot Melt Gluing Machine
Adhesive-bonded winding, for fabrics and core materials that are not suited to thermofusion.
Specifications - SHCB04
Automatic Paint Roller Finishing Machine
Takes wound tubes and delivers finished roller covers: loading, cutting, carding, bevelling and shearing under touch-screen control.
Specifications - SHCB05

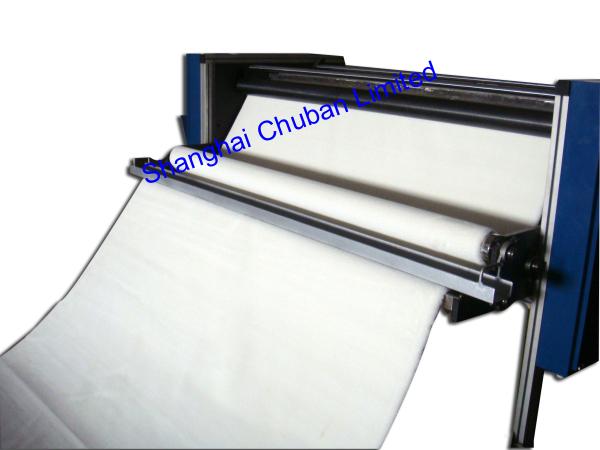

Paint Roller Fabric Slitting Machine
Slits full-width fabric rolls into the strips your winding machine feeds on, at 480 metres an hour under constant tension.
Specifications - SHCB06

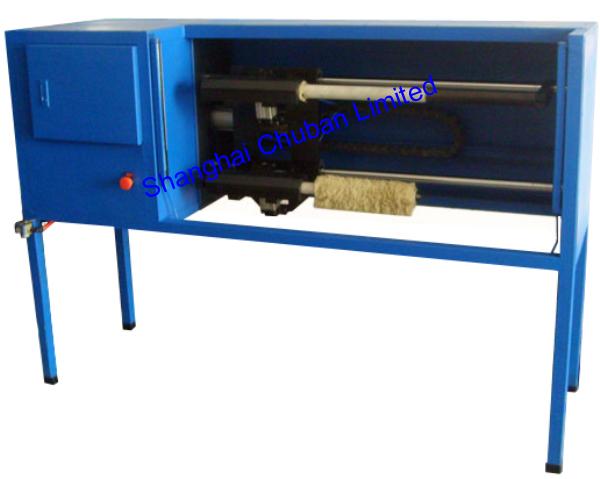

Paint Roller Turn-over Machine
Turns finished roller covers over for the next station in the line.
Specifications - YCL07
Automatic Paint Roller Cover, Caps and Inner Tube Assembly Machine
Brings cover, end caps and inner core together in one automatic station — 800 to 900 finished rollers an hour.
Specifications - YCL08
Paint Roller Plastic Core Inserting Machine
Inserts the plastic part into the roller end cap, ready for cap-and-core assembly, at 3,000 pieces an hour.
Specifications - YCL09
Automatic Mini Paint Roller Plastic Caps Inserting Machine
Caps and combs mini roller covers in one pass, 1,200 to 1,500 pieces an hour, PLC controlled.
Specifications - SHCB21
Automatic Paint Roller Cage Assembly Machine
Assembles formed wires and caps into finished roller cages, 600 to 700 an hour with one operator.
Specifications - SHCB22
Paint Roller Cage Wire Making Machine
Cuts and forms the wire that feeds the cage assembly machine.
Specifications
Paint brush machines
- SHCB14
Paint Brush Bristle Filling Machine
Automates bristle and filament filling for 1″ to 5″ brushes — one machine in place of four skilled fillers.
Specifications - SHCB15
Flat Paint Brush Handle Insert Machine
One worker loads heads and handles; the machine inserts them, 1,250 to 2,250 brushes an hour.
Specifications - SHCB16
Paint Brush Bristle Mixing Machine
Blends natural bristle with synthetic filament, or filament with filament, ahead of the filling machine.
Specifications
Get in touch
Tell us what you produce — we will quote the line.
Write to Nicol Liu directly. Include these four things and we can come back with a machine list, output figures, a floor plan and a price, usually within one working day:
- 1Roller sizes you make — diameter and length, in mm or inches.
- 2Fabric or pile you use, and the core material.
- 3Target output per hour or per shift.
- 4What you already run, if you are adding to an existing line.
