YCL09

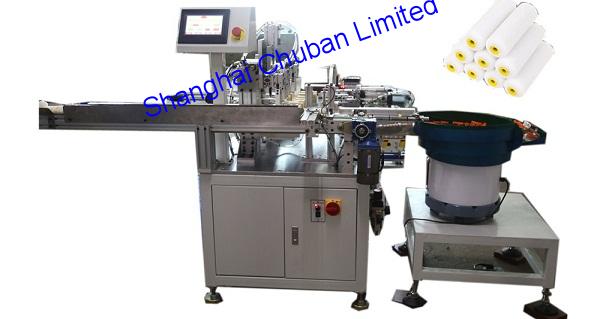

Automatic Mini Paint Roller Plastic Caps Inserting Machine
Caps and combs mini roller covers in one pass, 1,200 to 1,500 pieces an hour, PLC controlled.
Technical specification
| Inner diameter | 15 mm |
|---|---|
| Speed | 1,200 – 1,500 pcs / hour (inserting and combing) |
| Power supply | AC 380 V / 220 V, 50/60 Hz, 3 phase, 3.5 kW |
| Air supply | 0.6 MPa |
| Machine size | 2.8 (L) × 1.2 (W) × 1.3 (H) m |
| Operators required | 1 |
| Control system | PLC with touch screen |
How it works
- Continuous loading of mini roller covers and plastic caps.
- Combs and cards the mini roller after the caps are inserted.
Also in this line
- SHCB01
Automatic Mini Paint Roller Thermofusion Winding Machine
Winds and thermofusion-bonds fabric onto PP cores from 11.5 mm to 28 mm — the mini and trim roller sizes — with automatic tube loading and a single operator.
Specifications - SHCB02
Automatic Paint Roller Thermofusion Winding Machine
Our patented thermofusion process bonds fabric to the PP core without adhesive — the heart of a modern roller cover line, running 2,000 pieces an hour with one operator.
Specifications - YCL03Photo on request
Automatic Paint Roller Hot Melt Gluing Machine
Adhesive-bonded winding, for fabrics and core materials that are not suited to thermofusion.
Specifications
