Three Channel ECG Machine RSD 3303C

Ronseda supplies the Three Channel ECG Machine as model RSD 3303C. It is sold to hospitals, clinics and distributors in more than 100 countries.

ECG Machines

Model	RSD 3303C
Product type	ECG Machine
Warranty	18 months after shipment
Price basis	FOB Shenzhen; CFR or CIF quoted on request
Country of manufacture	China

Product Overview

As listed by the manufacturer

• Features:
• MASTER port to print12 leads ECG report on A4 paper
• Technical Specifications:
• EMG Filter：25 Hz / 30 Hz / 40Hz
• Low Pass Filter：75 Hz / 100 Hz / 150Hz
• DFT Filter：0.05 Hz/0.15 Hz/0.25 Hz/0.32 Hz/ 0.5 Hz/ 0.67Hz/ ADS
• AC Filter : 50 Hz / 60Hz
• Recording mode :
• Automatic: 3CH×4+1R, 3CH×4
• Manual: 3CH, 2CH, 1CH
• Rhythm: Any lead selectable
• Normal:1000sps/channel

What It Solves and Why It Is Worth Buying

Problems it solves

• Diagnostic ECG recording is a scheduled procedure competing for a shared machine, and a trace that cannot be printed cleanly has to be repeated.
• Buying the instrument and its consumables separately usually means two lead times and two sets of paperwork.
• Payment is 100% T/T in advance or Western Union preferred, and shipment goes by DHL, UPS or FedEx.

Key benefits

• A recorder per clinic room keeps the procedure where the patient already is and produces a printed trace for the file.
• Warranty runs 18 months after shipment, and returns are accepted for quality reasons inside that period.
• OEM and ODM versions of this part are available when a distributor needs its own labelling.

Technical Features

• Simultaneous 12 leads ECG acquisition and display
• Simultaneous 3 leads ECG printing with 80mmthermal paper
• 7 inch 800 x 480 TFT color LCD
• Alphanumeric keyboard
• Built-in rechargeable lithium battery, print up to 1080 ECG reports
• Built-in 4GB SD card, save up to 10,000 ECG reports in XML format
• Pacemaker detection
• Precise ECG auto-interpretation program
• USB SLAVE port can be connected to PC-ECG software (optional)
• Connect to an external USB printer supporting PCL6 language by USB
• Network transmission (optional)
• Software upgrade automatically via SD card
• Leads: standard 12 leads
• Patient current leakage: ＜10μA (220V-240V)

Who It Is For and Where It Is Used

Who it is for

• Cardiology and general clinics, ward teams, ambulance services and distributors supplying diagnostic equipment.
• Distributors and dealers who consolidate a mixed accessory list into one shipment from one factory.

Application settings

• Cardiology and outpatient clinics
• Pre-operative assessment
• General practice and health screening
• Ambulance and mobile clinics

Use and Handling Guide

• Unpack and check the unit against the packing list before the installation date, and keep the carton until commissioning is complete.
• Confirm the mains voltage and plug standard against local supply before first power-up.
• Charge the internal battery fully before the first clinical use if the unit is battery equipped.
• Work through the operating manual with the clinical users who will run the device day to day, not only with the engineer who installs it.
• Record the serial number and shipment date against the warranty period so a claim can be raised without searching for paperwork.

Quality Control Customisation and Terms

Quality control

Production runs under the factory quality control system and every shipment is inspected before it leaves Shenzhen.

Customisation

OEM and ODM services are available according to customer requirements. On accessory lines that includes specified connectors, cable lengths and customer labelling.

Certification

Certificate numbers and scopes are supplied on request with the quotation. We do not publish certification claims we cannot evidence.

How It Compares With The Rest Of The Range

Single channel ECG machine	Same family, model RSD 3301.
Three Channel ECG Machine	Same family, model RSD 3303B.
Six Channel ECG Machine	Same family, model RSD 3306B.

Related Products

Single channel ECG machine

Model RSD 3301

Three Channel ECG Machine

Model RSD 3303B

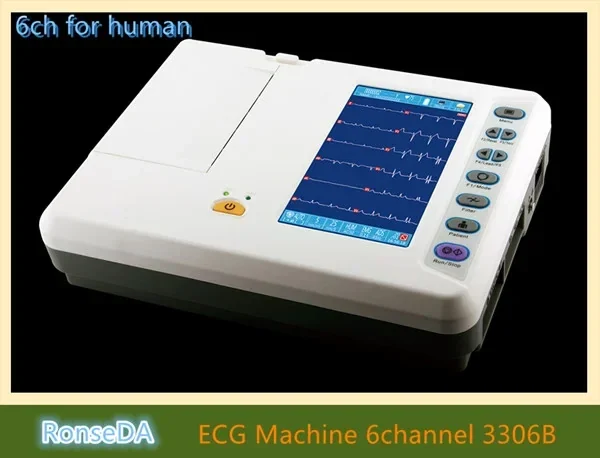

Six Channel ECG Machine

Model RSD 3306B

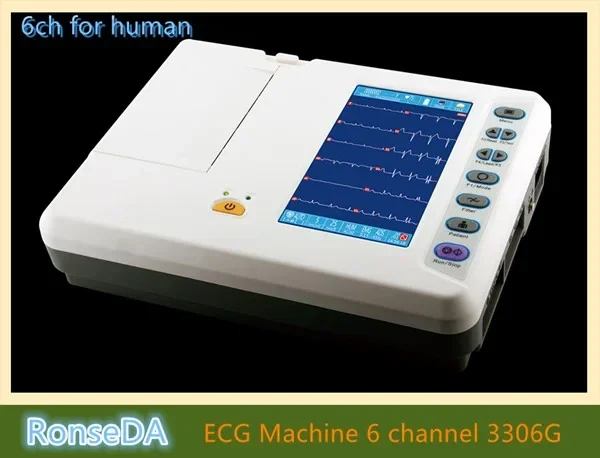

Six Channel ECG Machine

Model RSD 3306G

Guides and Programmes For This Product

Choosing Between One-Piece and Two-Piece ECG Cable Sets

Hospitals and Clinics

Distributor Supply Programme

Questions About Three Channel ECG Machine RSD 3303C

Request a quotation for Three Channel ECG Machine RSD 3303C

Quote reference RSD 3303C. Send the quantity and destination port and we reply with the price basis, packing detail and lead time.
