Name: Handheld Pulse Oximeter RSD7700
Brand: Ronseda Electronics Co., Ltd.

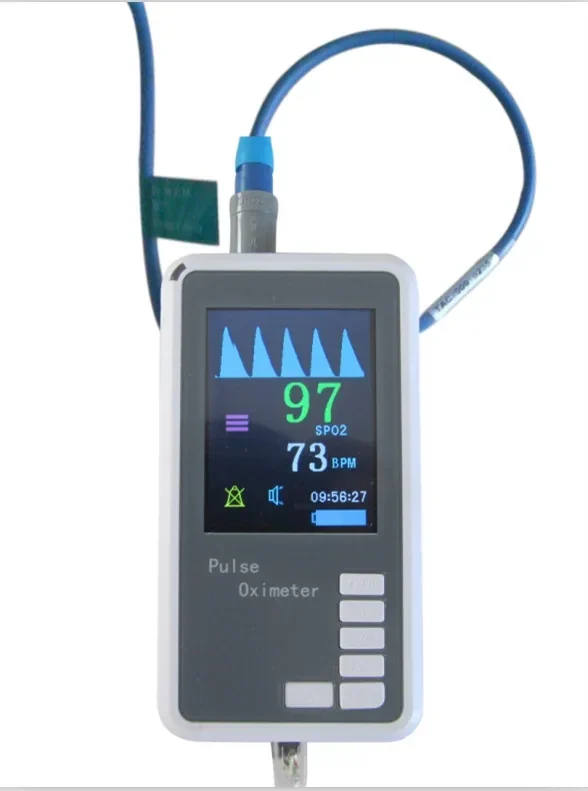

Handheld Pulse Oximeter from Ronseda

Ronseda supplies the Handheld Pulse Oximeter as model RSD7700. It is sold to hospitals, clinics and distributors in more than 100 countries.

Pulse Oximeters · Handheld Pulse Oximeter

Model	RSD7700
Product type	Pulse oximeter
Type	Handheld Pulse Oximeter
Warranty	18 months after shipment
Price basis	FOB Shenzhen; CFR or CIF quoted on request
Country of manufacture	China

Product Overview

Audio and visual alarm: The speaker sounds the alarm and the parameter’s measurement will become in red to flash on the screen. Also the same when sensor-off.

As listed by the manufacturer

Standard accessories
one Adult finger SpO2 sensor
one AC charger
Technical Specifications
Monitoring Parameters: SpO2、PR、PLETH、Pulse strength
Signal sockets：SpO2 socket、PR socket、USB socket(for AC power)
Type: 240 × 320 dot matrix color TFT LCD screen
Display area: 43mm×58mm
PLETH: The oximeter can display PLETH waveform
Prompting: Icons of battery capacity, pulse sound switch and alarm sound switch.
Power saving: The oximeter will automatic shut down to save power. The time is settable.
AC power adaptor

What It Solves and Why It Is Worth Buying

Problems it solves

A full patient monitor is more instrument than a spot check needs, and moving one between rooms takes it away from the bed that needs it.
A single supplier for the unit and its accessories keeps commissioning, spares and service on one purchase order.
Payment is 100% T/T in advance or Western Union preferred, and shipment goes by DHL, UPS or FedEx.

Key benefits

A dedicated oximeter puts SpO2 and pulse rate in the clinician hand at the point of care without occupying a monitoring channel.
Warranty runs 18 months after shipment, and returns are accepted for quality reasons inside that period.
Ronseda has built this class of product in Shenzhen since 2003 and ships to more than 100 countries.

Technical Features

Two parameters:SpO2, and Pulse Rate
SpO2 waveform(PLETH),PR strength display
2.8 inch color TFT LCD in real time display, displayable in big font and big screen
Long time monitoring and sleeping monitoring
Audio and visual alarm when parameters exceeded and sensor-off
Built-in rechargeable Li-ion battery, up to 15-hour running time
Battery capacity indicator. Automatic shutdown for power saving
Display screen
Power Requirements
Parameter Specifications

Who It Is For and Where It Is Used

Who it is for

Clinics, home-care providers, ambulance services, veterinary practices and distributors supplying primary-care equipment.
Distributors and dealers who consolidate a mixed accessory list into one shipment from one factory.

Application settings

Outpatient clinics and general practice
Home care and follow-up visits
Triage and pre-operative assessment
Veterinary consultation rooms

Use and Handling Guide

Unpack and check the unit against the packing list before the installation date, and keep the carton until commissioning is complete.
Confirm the mains voltage and plug standard against local supply before first power-up.
Charge the internal battery fully before the first clinical use if the unit is battery equipped.
Work through the operating manual with the clinical users who will run the device day to day, not only with the engineer who installs it.
Record the serial number and shipment date against the warranty period so a claim can be raised without searching for paperwork.

Quality Control Customisation and Terms

Quality control

Production runs under the factory quality control system and every shipment is inspected before it leaves Shenzhen.

Customisation

OEM and ODM services are available according to customer requirements. On accessory lines that includes specified connectors, cable lengths and customer labelling.
