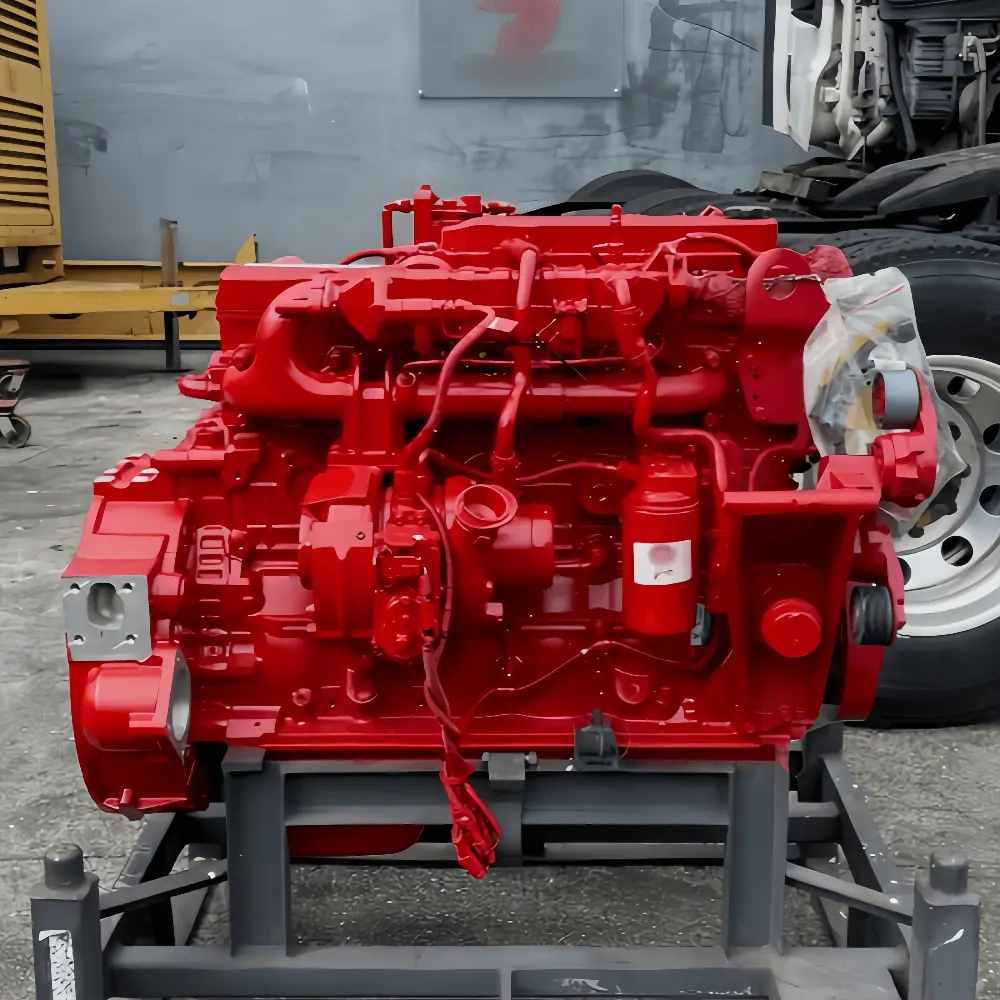

Cummins ISBe 184KW 250HP Vehicle Diesel Engine
6-cylinder in-line diesel engine for trucks, buses, coaches and municipal vehicles, supplied as the Cummins ISBE at 184 kW (250 HP) at 2500 rpm from 5.9 L.
- Home
- Products
- Vehicle Engines
- Cummins ISBe 184KW 250HP Vehicle Diesel Engine
Overview
What This Engine Is Built For
MEP Power supplies the Cummins ISBE as a complete 6-cylinder in-line vehicle diesel engine of 5.9 L running a 102 * 120 mm bore and stroke. It is rated at 184 kW (250 HP) at 2500 rpm. The engine is turbocharged & intercooled and water cooled, with a DESNO HPCR Pump/ fuel system. It is built at the Dongfeng Cummins Plant ISBe 250 and carries Euro III/IV. Typical duty is trucks, buses, coaches and municipal vehicles; dry weight with flywheel and alternator is 453 Kg and the overall envelope is 1095mm*744mm*905mm.
ModelCummins ISBe 184KW 250HP Vehicle Diesel Engine
Rated power184 kW/250HP
Displacement5.9 L
AspirationTurbocharged & Intercooled
CertificationEuro III/IV
Net weight453 Kg
Key Benefits
- Delivers 184 kW (250 HP) at 2500 rpm from 5.9 L as a factory-rated assembly.
- Turbocharged & Intercooled induction with water cooling keeps charge temperature under control in continuous duty.
- Supplied to Euro III/IV, so the unit can be registered in markets that require it.
- Dry weight 453 Kg and envelope 1095mm*744mm*905mm are published so the installation can be checked before ordering.
- Starts without auxiliary aids down to -10℃/-41℃.
- Shipped from Shiyan, Hubei, China with export packing and full documentation
Application Scenarios
- Heavy truck engine assembly replacement
- City bus and coach repower
- Mixer, tipper and refuse body chassis
- Light commercial vehicle conversion
Who It Is For
- Truck and bus fleets doing engine assembly swaps instead of in-frame rebuilds
- Body builders and chassis converters specifying a known driveline
- Workshops supporting Dongfeng and other Cummins-powered vehicles
- Municipal fleets running refuse, mixer and utility bodies
Problems It Solves
- In-frame rebuilds tie up a bay for days and still leave old ancillaries in service.
- Emission compliance has to be matched to the market the vehicle runs in.
- Mixed fleets with several engine families multiply the parts a workshop must carry.
- Identifying the right ISBE variant from a serial number takes experience; MEP Power checks the configuration before quoting.
Technical data
Specification As Published
Values below are the published data for this unit. Where a figure is not listed it was not stated by the source data sheet; ask and we will confirm before you order.
| Model | Cummins ISBe 184KW 250HP Vehicle Diesel Engine |
| Type | 6 Cylinders in Line |
| Displacement | 5.9 L |
| Bore x Stroke | 102 * 120 |
| Net Weight (with flywheel and alternator) | 453 Kg |
| Overall Dimension | 1095mm*744mm*905mm |
| Manufacturing Plant | Dongfeng Cummins Plant ISBe 250 |
| Rated Power/Speed | 184 kW/250HP |
| Rated Speed | 2500 rpm |
| Idle Speed | 600-800 rpm |
| Certification | Euro III/IV |
| Aspiration | Turbocharged & Intercooled |
| Fuel System | DESNO HPCR Pump/ |
| Compression Ratio | (17.3±0.5):1 |
| Starting System | Electrical Starting Motor 24V(510A) |
| Lowest Starting Temp (without auxiliary system) | -10℃/-41℃ |
| Engine Cooling Fluid Volume | 7.0 L |
| Cooling Method | Water Cooled |
| Cylinders | 6 Cylinders in-line |
| Prime Power | 184KW/250HP |
Technical Features
- Cylinders: 6 Cylinders in Line
- Displacement: 5.9 L
- Bore and stroke: 102 * 120
- Aspiration: Turbocharged & Intercooled
- Fuel system: DESNO HPCR Pump/
- Starting system: Electrical Starting Motor 24V(510A)
- Compression ratio: (17.3±0.5):1
- Coolant capacity: 7.0 L
Quality Control
- Every engine is inspected by the MEP Power inspection team before it leaves the warehouse
- Engine, configuration and serial numbers are recorded and photographed for the buyer
- Genuine and OEM units are quoted separately so the buyer knows exactly what is supplied
- Warranty on genuine and OEM new engines and generator sets is one year or 1000 hours, whichever comes first; parts and repair labour are covered for quality faults inside that period.
Use and Installation Guide
- Quote the model ISBE when ordering so the correct variant is supplied.
- Match the flywheel housing and clutch to the existing gearbox
- Check the emission level required in the registration market before ordering
- Re-use the vehicle's cooling pack only if it meets the engine's heat rejection
- Keep the warranty terms in mind: one year or 1000 hours, whichever comes first.
Customisation Options
- OEM and ODM builds, including your logo and company name on the unit
- Cummins engine customisation and modification to your requirement
- Mining and special explosion-proof builds
- Genuine or OEM parts specified on the quotation
How It Compares
| Compared with | What to consider |
|---|---|
| A rebuilt or used engine of the same rating | A rebuilt unit may show the same 184 kW (250 HP) on paper, but its running history is unknown and the warranty rarely covers the whole engine. |
| A larger engine in the same ISBE range | Moving up a frame size adds weight, envelope and fuel burn; specify the next size up only if the duty cycle really needs the headroom. |
| A non-Cummins engine of similar output | Parts and service for Cummins families are available in most markets, which matters more over ten years than the purchase price on day one. |
Questions
Cummins ISBe 184KW 250HP Vehicle Diesel Engine Questions
Is this ISBE a genuine Cummins engine
MEP Power supplies 100% genuine Cummins engines, generator sets and engine parts, plus OEM units and customised builds. Tell us which you need and the quotation will state clearly whether the unit offered is genuine, OEM or a customised build.
What power does the ISBE produce
The rating supplied is 184 kW (250 HP) at 2500 rpm.
What warranty comes with the engine
New genuine and OEM engines and generator sets carry one year or 1000 hours, whichever comes first. Inside that period MEP Power supplies replacement parts free of charge and covers the cost of the engine repair for quality faults.
How do I confirm this is the right variant for my machine
Send the engine serial number or the nameplate photograph of the unit being replaced. MEP Power checks it against the ISBE configuration before quoting.
How is the engine shipped and what payment terms apply
Shipment is by sea, air or express depending on size and urgency, arranged by MEP Power or by your own forwarder. Payment terms are Alipay, WeChat, T/T or L/C.
