Generator Engines · QSZ13

Cummins QSZ13-G3 450KW 612HP Generator Engine

Name: Cummins QSZ13-G3 450KW 612HP Generator Engine
Brand: Cummins
SKU: QSZ13-G3
Availability: InStock

Cummins QSZ13-G3 6-cylinder in-line diesel engine of 13.2L delivering 450 kW (612 HP) at 1500rmp used for prime and standby generator sets.

Request A Quote Email A Technician

Home
Products
Generator Engines
Cummins QSZ13-G3 450KW 612HP Generator Engine

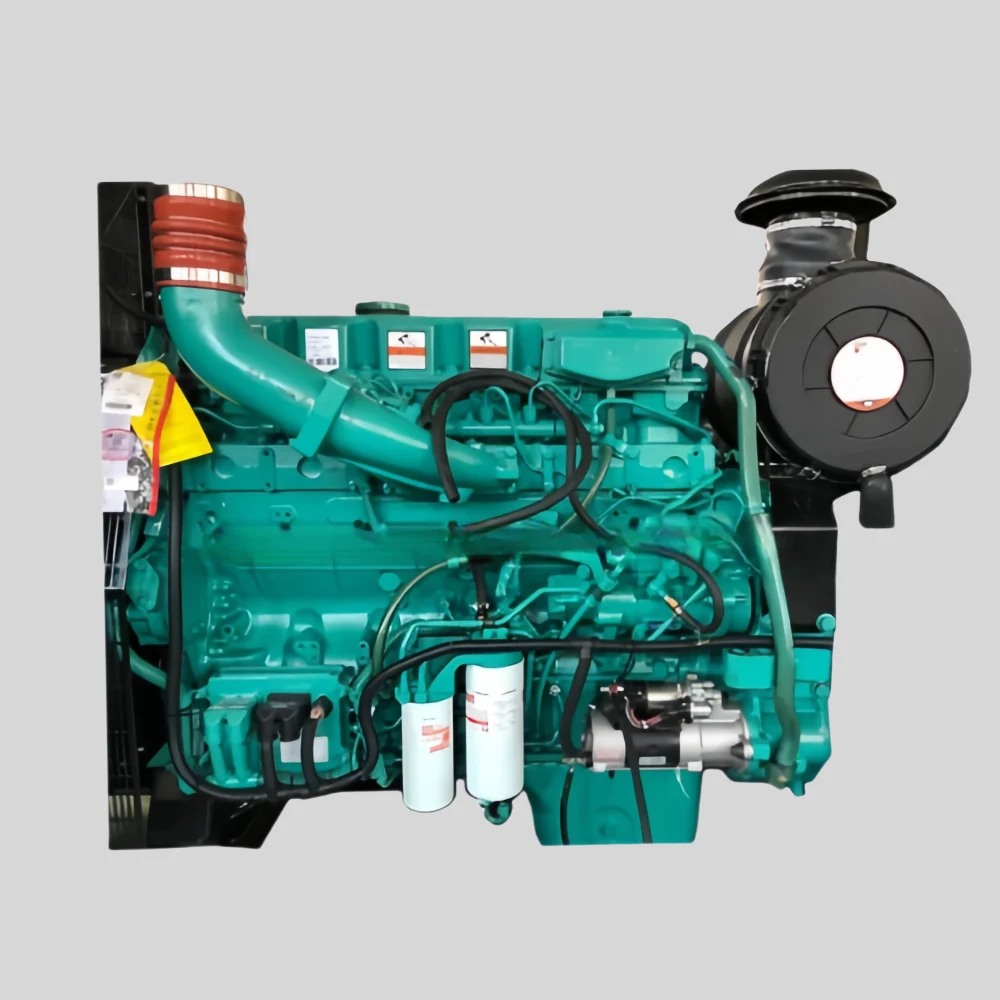

Cummins QSZ13-G3 450KW 612HP Generator Engine complete engine assembly

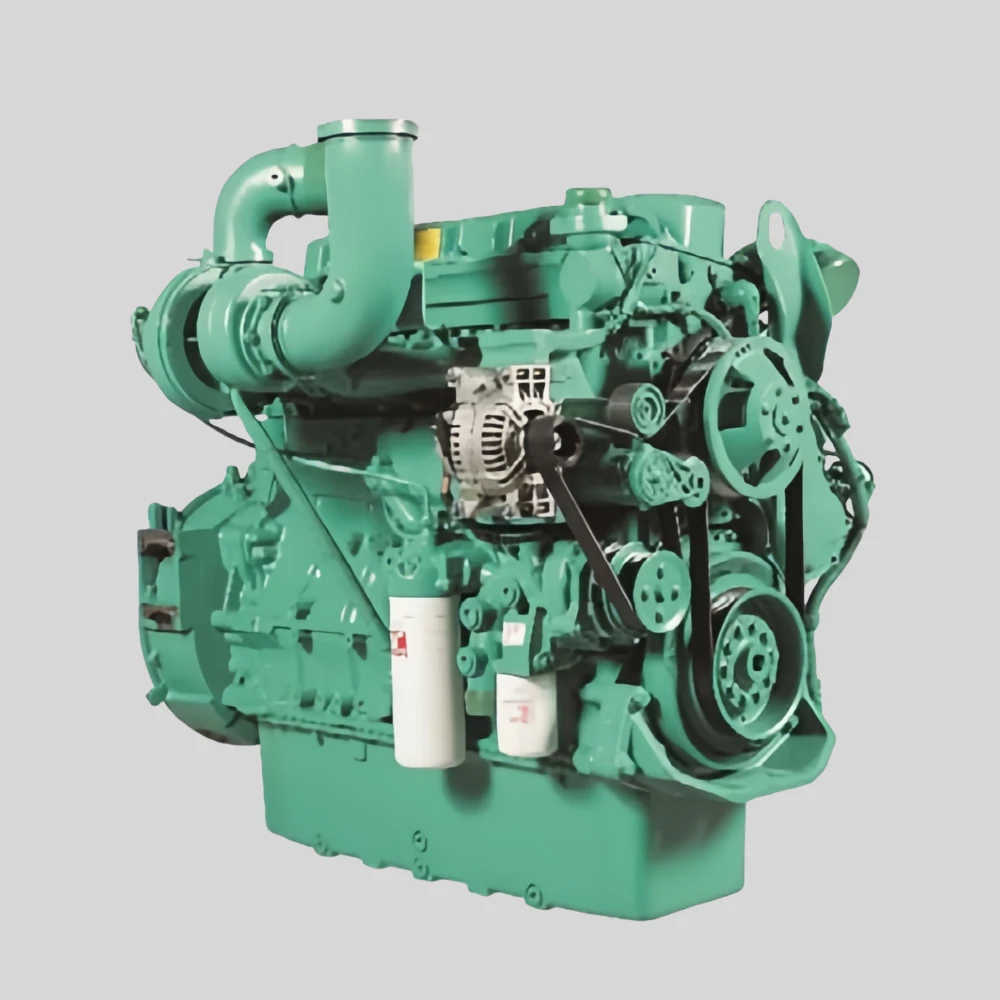

Cummins QSZ13-G3 450KW 612HP Generator Engine shown from another angle

Overview

What This Engine Is Built For

Cummins QSZ13-G3: a 6-cylinder in-line generator drive diesel engine displacing 13.2L on a 145×140 mm bore and stroke, supplied complete by MEP Power. It is rated at 450 kW (612 HP) at 1500rmp. The engine is turbocharged and water cooled. Typical duty is prime and standby generator sets.

Rated power450kw/612HP

Displacement13.2L

AspirationTurbocharged

Key Benefits

Delivers 450 kW (612 HP) at 1500rmp from 13.2L as a factory-rated assembly.
Turbocharged induction with water cooling keeps charge temperature under control in continuous duty.
Published fuel consumption of 201 g/kW.h makes running cost predictable.
Genuine and OEM options quoted side by side so the budget decides, not the catalogue
Built on the QSZ13 platform, a Cummins family with parts availability worldwide

Application Scenarios

Prime mover for a new generator set build
Standby set engine replacement
Rental power fleet rebuild
Containerised power module

Who It Is For

Genset packagers matching an engine to an alternator
Rental power companies rebuilding sets between contracts
Industrial sites replacing the prime mover in an existing canopy
Telecom and data infrastructure contractors specifying standby power

Problems It Solves

An engine that does not hold speed under block load makes the whole set unusable.
Packagers lose weeks when the engine does not match the alternator and the base frame.
Standby sets sit idle for months and must still start and take load on demand.
Identifying the right QSZ13-G3 variant from a serial number takes experience; MEP Power checks the configuration before quoting.

Technical data

Specification As Published

Values below are the published data for this unit. Where a figure is not listed it was not stated by the source data sheet; ask and we will confirm before you order.

Engine Model	Cummins QSZ13-G3 450KW 612HP Generator Engine Cylinder NO. 6 Cylinders in-line
Prime Power	450kw/612HP
Standby Power	495kw/673HP
Rated Speed	1500rmp
Bore x Stroke	145×140
Displacement	13.2L
Exhaust Temperature	380
Lubricating Oil Capacity	23.1L Liquid cooling capacity(L) 58L
Fuel Consumption	201 g/kW.h
Oil Consumption	0.3 g/kW.h
Aspiration	Turbocharged
Starting System	Electrical start
Cooling System	water cooling
Cylinders	6 Cylinders in-line

Technical Features

Displacement: 13.2L
Bore and stroke: 145×140
Aspiration: Turbocharged
Starting system: Electrical start

Quality Control

Every engine is inspected by the MEP Power inspection team before it leaves the warehouse
Engine, configuration and serial numbers are recorded and photographed for the buyer
Genuine and OEM units are quoted separately so the buyer knows exactly what is supplied
Warranty on genuine and OEM new engines and generator sets is one year or 1000 hours, whichever comes first; parts and repair labour are covered for quality faults inside that period.

Use and Installation Guide

Quote the model QSZ13-G3 when ordering so the correct variant is supplied.
Match the flywheel and SAE housing to the alternator before assembly
Set the governor to the frequency required, 50 Hz or 60 Hz
Run a load bank test before the set goes into service
Keep the warranty terms in mind: one year or 1000 hours, whichever comes first.

Customisation Options

OEM and ODM builds, including your logo and company name on the unit
Cummins engine customisation and modification to your requirement
Mining and special explosion-proof builds
Genuine or OEM parts specified on the quotation

How It Compares

Compared with	What to consider
A rebuilt or used engine of the same rating	A rebuilt unit may show the same 450 kW (612 HP) on paper, but its running history is unknown and the warranty rarely covers the whole engine.
A larger engine in the same QSZ13 range	Moving up a frame size adds weight, envelope and fuel burn; specify the next size up only if the duty cycle really needs the headroom.
A non-Cummins engine of similar output	Parts and service for Cummins families are available in most markets, which matters more over ten years than the purchase price on day one.

Questions

QSZ13-G3 Questions

Is this QSZ13-G3 a genuine Cummins engine

MEP Power supplies 100% genuine Cummins engines, generator sets and engine parts, plus OEM units and customised builds. Tell us which you need and the quotation will state clearly whether the unit offered is genuine, OEM or a customised build.

What power does the QSZ13-G3 produce

The rating supplied is 450 kW (612 HP) at 1500rmp.

What warranty comes with the engine

New genuine and OEM engines and generator sets carry one year or 1000 hours, whichever comes first. Inside that period MEP Power supplies replacement parts free of charge and covers the cost of the engine repair for quality faults.

How do I confirm this is the right variant for my machine

Send the engine serial number or the nameplate photograph of the unit being replaced. MEP Power checks it against the QSZ13-G3 configuration before quoting.

How is the engine shipped and what payment terms apply

Shipment is by sea, air or express depending on size and urgency, arranged by MEP Power or by your own forwarder. Payment terms are Alipay, WeChat, T/T or L/C.
