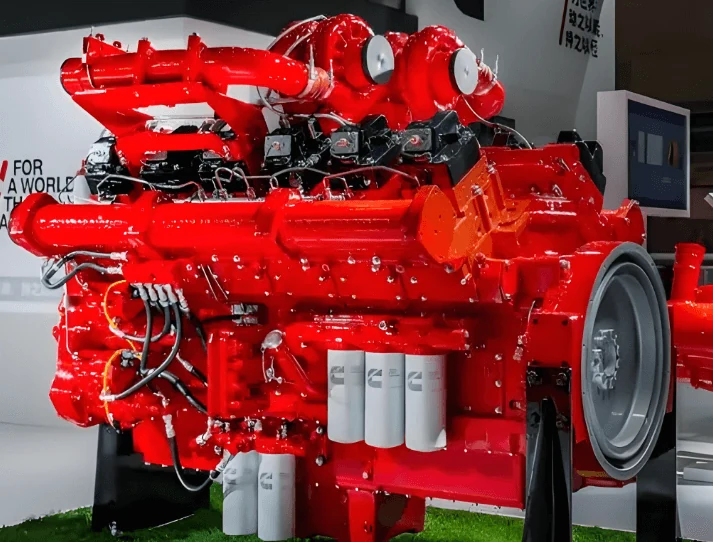

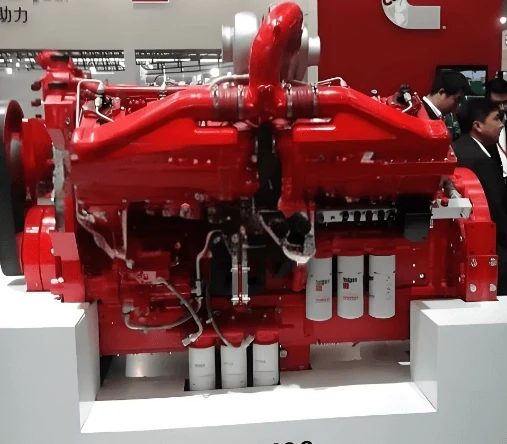

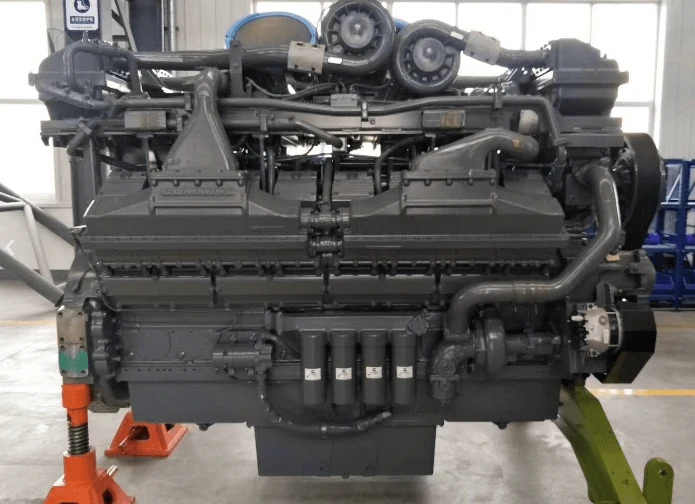

Cummins QSK38-C Diesel Engine 1086HP Construction Engine
Cummins QSK38-C 12-cylinder V-type diesel engine of 37.7 L delivering 810 kW (1086 HP) at 1800 rpm Peak Torque/Speed: 4869 N.m @ 1350 rpm Engine used for excavators, wheel loaders, cranes, drill rigs and other off-highway machines.
- Home
- Products
- Construction Engines
- Cummins QSK38-C Diesel Engine 1086HP Construction Engine
What This Engine Is Built For
Cummins QSK38-C: a 12-cylinder V-type construction diesel engine displacing 37.7 L on a 159 * 159 mm bore and stroke, supplied complete by MEP Power. It is rated at 810 kW (1086 HP) at 1800 rpm Peak Torque/Speed: 4869 N.m @ 1350 rpm Engine. The engine is turbocharged aftercooled, with a Cummins MCRS fuel system. It is built at the Chongqing Cummins Plant and carries U.S. EPA Tier 2. Typical duty is excavators, wheel loaders, cranes, drill rigs and other off-highway machines; dry weight with flywheel and alternator is 4510 Kg and the overall envelope is N/A.
Key Benefits
- Delivers 810 kW (1086 HP) at 1800 rpm Peak Torque/Speed: 4869 N.m @ 1350 rpm Engine from 37.7 L as a factory-rated assembly.
- Turbocharged Aftercooled induction keeps charge temperature under control in continuous duty.
- Supplied to U.S. EPA Tier 2, so the unit can be registered in markets that require it.
- Dry weight 4510 Kg and envelope N/A are published so the installation can be checked before ordering.
- Published fuel consumption of 214g/Kw.h @ 1800 rpm QSK38-C – Technical Specification Emission makes running cost predictable.
- Starts without auxiliary aids down to -12℃ Cooling System.
Application Scenarios
- 20-35 t excavator power unit replacement
- Wheel loader and grader repower
- Crawler crane and drill rig drive
- Concrete pump and batching plant drive
Who It Is For
- Excavator and loader rebuilders replacing a failed power unit
- Plant hire fleets that need machines back on rent quickly
- OEM machine builders sourcing a proven engine for a new chassis
- Quarry and earthmoving contractors running machines in dusty, high-load duty
Problems It Solves
- A machine down in the middle of a job stops the whole site, not just one asset.
- Rebuilt short blocks of unknown history fail again inside the warranty window.
- Dust, vibration and long hours at high load expose any weakness in the power unit.
- Identifying the right QSK38-C variant from a serial number takes experience; MEP Power checks the configuration before quoting.
Specification As Published
Values below are the published data for this unit. Where a figure is not listed it was not stated by the source data sheet; ask and we will confirm before you order.
| Model | QSK38-C |
| Type | 12 Cylinders, V Type |
| Displacement | 37.7 L |
| Bore x Stroke | 159 * 159 |
| Net Weight (with flywheel and alternator) | 4510 Kg |
| Overall Dimension | N/A |
| Manufacturing Plant | Chongqing Cummins Plant |
| Rated Power | 810 kW/1086HP |
| Rated Speed | 1800 rpm Peak Torque/Speed: 4869 N.m @ 1350 rpm Engine |
| Fuel Consumption at Rated Power | 214g/Kw.h @ 1800 rpm QSK38-C – Technical Specification Emission |
| Certification | U.S. EPA Tier 2 |
| Aspiration | Turbocharged Aftercooled |
| Fuel System | Cummins MCRS |
| Compression Ratio | 15.0:1 |
| Electrical System (starter motor/alternator) | 12V/24V |
| Lowest Starting Temp (without auxiliary system) | -12℃ Cooling System |
Technical Features
- Cylinders: 12 Cylinders, V Type
- Displacement: 37.7 L
- Bore and stroke: 159 * 159
- Aspiration: Turbocharged Aftercooled
- Fuel system: Cummins MCRS
- Electrical system: 12V/24V
- Compression ratio: 15.0:1
Quality Control
- Every engine is inspected by the MEP Power inspection team before it leaves the warehouse
- Engine, configuration and serial numbers are recorded and photographed for the buyer
- Genuine and OEM units are quoted separately so the buyer knows exactly what is supplied
- Warranty on genuine and OEM new engines and generator sets is one year or 1000 hours, whichever comes first; parts and repair labour are covered for quality faults inside that period.
Use and Installation Guide
- Quote the model QSK38-C when ordering so the correct variant is supplied.
- Confirm flywheel housing, SAE size and pump drive against the machine
- Transfer the machine's own wiring harness only after checking the connector layout
- Run the first 50 hours at moderate load before full-duty work
- Keep the warranty terms in mind: one year or 1000 hours, whichever comes first.
Customisation Options
- OEM and ODM builds, including your logo and company name on the unit
- Cummins engine customisation and modification to your requirement
- Mining and special explosion-proof builds
- Genuine or OEM parts specified on the quotation
How It Compares
| Compared with | What to consider |
|---|---|
| A rebuilt or used engine of the same rating | A rebuilt unit may show the same 810 kW (1086 HP) on paper, but its running history is unknown and the warranty rarely covers the whole engine. |
| A larger engine in the same QSK38 range | Moving up a frame size adds weight, envelope and fuel burn; specify the next size up only if the duty cycle really needs the headroom. |
| A non-Cummins engine of similar output | Parts and service for Cummins families are available in most markets, which matters more over ten years than the purchase price on day one. |
QSK38-C Questions
Is this QSK38-C a genuine Cummins engine
What power does the QSK38-C produce
What warranty comes with the engine
How do I confirm this is the right variant for my machine
How is the engine shipped and what payment terms apply
Other Models Buyers Compare With This One
Cummins QSM11-400 Diesel Engine 400HP Construction Engine
6-cylinder in-line diesel engine for excavators, wheel loaders, cranes, drill rigs and other off-highway machines, supplied as the Cummins QSM11-400 at 298 kW (400 HP) at 2100/1800 rpm Max Torque/Speed (2100): 1898 N.m @ 1400 rpm from 10.8 L.
View specification
Cummins QSM11-375 Diesel Engine 375HP Construction Engine
Cummins QSM11-375 6-cylinder in-line diesel engine of 10.8 L delivering 280 kW (375 HP) at 2100 rpm used for excavators, wheel loaders, cranes, drill rigs and other off-highway machines.
View specification
Cummins QSM11-360 Diesel Engine 360HP Construction Engine
Cummins QSM11-360 6-cylinder in-line diesel engine of 10.8 L delivering 269 kW (360 HP) at 2100/1800 rpm Max Torque/Speed (2100): 1830 N.m @ 1400 rpm used for excavators, wheel loaders, cranes, drill rigs and other off-highway machines.
View specificationQuote The QSK38-C
Send your serial number or nameplate photograph and we will confirm the configuration, then price genuine and OEM options side by side.
