Generator Engines · NTA855

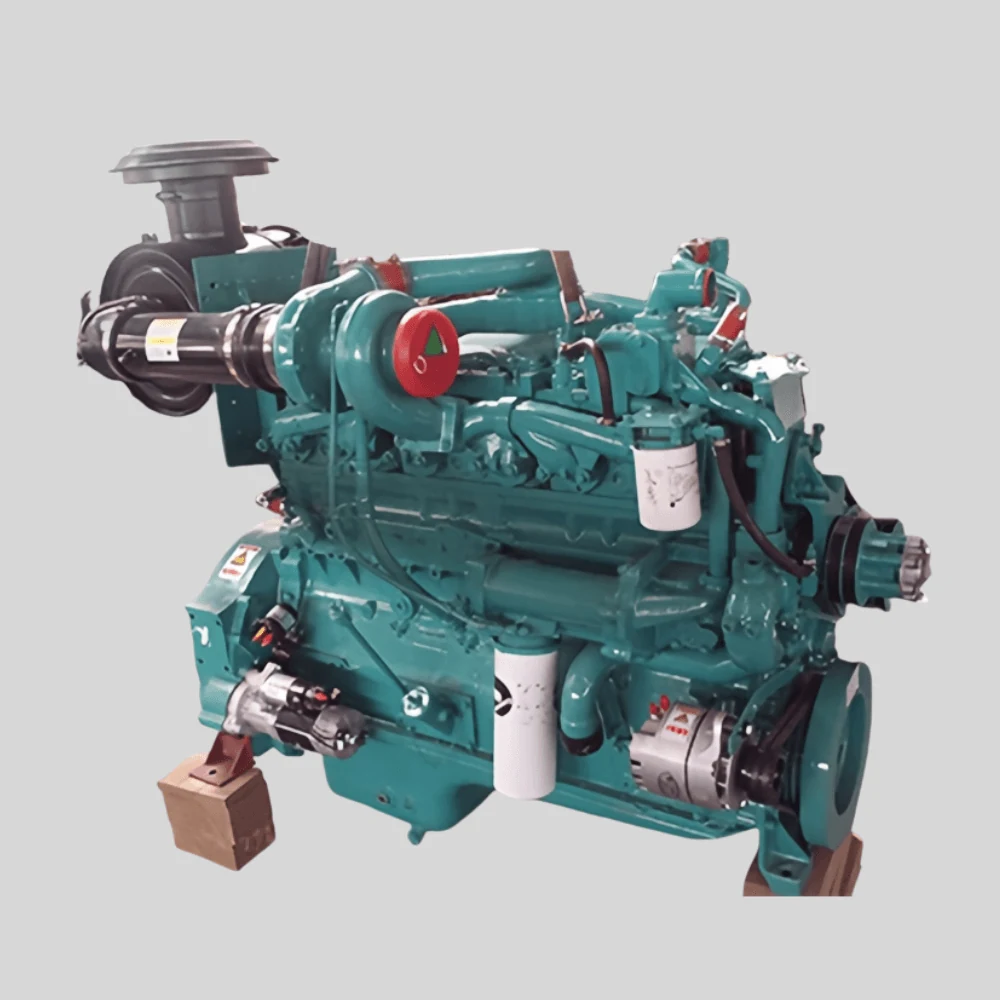

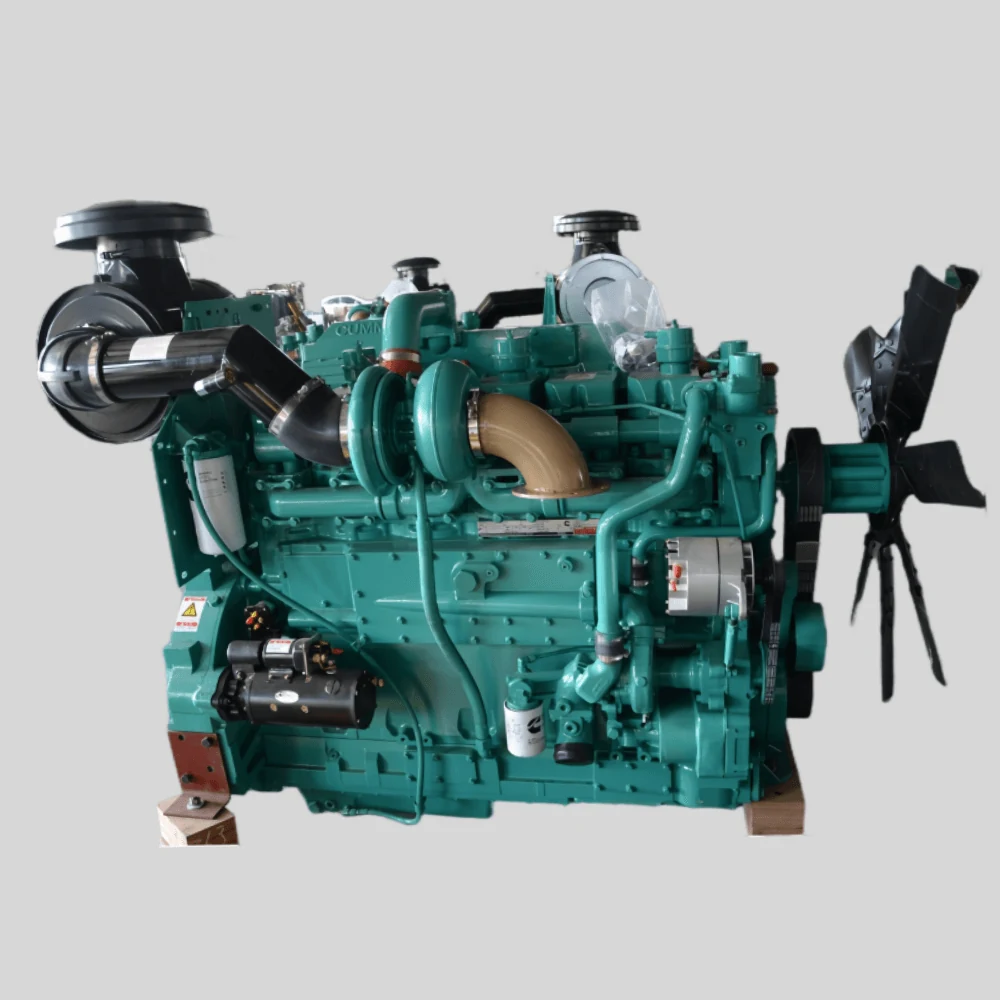

Cummins NTA855-G1A 261KW 345HP Generator Engine
6-cylinder in-line diesel engine for prime and standby generator sets, supplied as the Cummins NTA855-G1A at 261 kW (345 HP) at 1500rmp from 14L.
- Home
- Products
- Generator Engines
- Cummins NTA855-G1A 261KW 345HP Generator Engine
Overview
What This Engine Is Built For
MEP Power supplies the Cummins NTA855-G1A as a complete 6-cylinder in-line generator drive diesel engine of 14L running a 145×152 mm bore and stroke. It is rated at 261 kW (345 HP) at 1500rmp. The engine is turbocharged and water cooled. Typical duty is prime and standby generator sets.
Rated power261kw/345HP
Displacement14L
AspirationTurbocharged
Key Benefits
- Delivers 261 kW (345 HP) at 1500rmp from 14L as a factory-rated assembly.
- Turbocharged induction with water cooling keeps charge temperature under control in continuous duty.
- Published fuel consumption of 207 g/kW.h makes running cost predictable.
- Supplied as a complete engine assembly, so the unit goes straight onto the mounts
- Backed by a written warranty of one year or 1000 hours, whichever comes first
Application Scenarios
- Prime mover for a new generator set build
- Standby set engine replacement
- Rental power fleet rebuild
- Containerised power module
Who It Is For
- Genset packagers matching an engine to an alternator
- Rental power companies rebuilding sets between contracts
- Industrial sites replacing the prime mover in an existing canopy
- Telecom and data infrastructure contractors specifying standby power
Problems It Solves
- An engine that does not hold speed under block load makes the whole set unusable.
- Packagers lose weeks when the engine does not match the alternator and the base frame.
- Standby sets sit idle for months and must still start and take load on demand.
- Identifying the right NTA855-G1A variant from a serial number takes experience; MEP Power checks the configuration before quoting.
Technical data
Specification As Published
Values below are the published data for this unit. Where a figure is not listed it was not stated by the source data sheet; ask and we will confirm before you order.
| Engine Model | Cummins NTA855-G1A 261KW 345HP Generator Engine Cylinder NO. 6 Cylinders in-line |
| Prime Power | 261kw/345HP |
| Standby Power | 291kw/396HP |
| Rated Speed | 1500rmp |
| Bore x Stroke | 145×152 |
| Displacement | 14L |
| Exhaust Temperature | 468 |
| Lubricating Oil Capacity | 34L Liquid cooling capacity(L) 63.8L |
| Fuel Consumption | 207 g/kW.h |
| Oil Consumption | 0.4 g/kW.h |
| Aspiration | Turbocharged |
| Starting System | Electrical start |
| Cooling System | water cooling |
| Cylinders | 6 Cylinders in-line |
Technical Features
- Displacement: 14L
- Bore and stroke: 145×152
- Aspiration: Turbocharged
- Starting system: Electrical start
Quality Control
- Every engine is inspected by the MEP Power inspection team before it leaves the warehouse
- Engine, configuration and serial numbers are recorded and photographed for the buyer
- Genuine and OEM units are quoted separately so the buyer knows exactly what is supplied
- Warranty on genuine and OEM new engines and generator sets is one year or 1000 hours, whichever comes first; parts and repair labour are covered for quality faults inside that period.
Use and Installation Guide
- Quote the model NTA855-G1A when ordering so the correct variant is supplied.
- Match the flywheel and SAE housing to the alternator before assembly
- Set the governor to the frequency required, 50 Hz or 60 Hz
- Run a load bank test before the set goes into service
- Keep the warranty terms in mind: one year or 1000 hours, whichever comes first.
Customisation Options
- OEM and ODM builds, including your logo and company name on the unit
- Cummins engine customisation and modification to your requirement
- Mining and special explosion-proof builds
- Genuine or OEM parts specified on the quotation
How It Compares
| Compared with | What to consider |
|---|---|
| A rebuilt or used engine of the same rating | A rebuilt unit may show the same 261 kW (345 HP) on paper, but its running history is unknown and the warranty rarely covers the whole engine. |
| A larger engine in the same NTA855 range | Moving up a frame size adds weight, envelope and fuel burn; specify the next size up only if the duty cycle really needs the headroom. |
| A non-Cummins engine of similar output | Parts and service for Cummins families are available in most markets, which matters more over ten years than the purchase price on day one. |
Questions
NTA855-G1A Questions
Is this NTA855-G1A a genuine Cummins engine
MEP Power supplies 100% genuine Cummins engines, generator sets and engine parts, plus OEM units and customised builds. Tell us which you need and the quotation will state clearly whether the unit offered is genuine, OEM or a customised build.
What power does the NTA855-G1A produce
The rating supplied is 261 kW (345 HP) at 1500rmp.
What warranty comes with the engine
New genuine and OEM engines and generator sets carry one year or 1000 hours, whichever comes first. Inside that period MEP Power supplies replacement parts free of charge and covers the cost of the engine repair for quality faults.
How do I confirm this is the right variant for my machine
Send the engine serial number or the nameplate photograph of the unit being replaced. MEP Power checks it against the NTA855-G1A configuration before quoting.
How is the engine shipped and what payment terms apply
Shipment is by sea, air or express depending on size and urgency, arranged by MEP Power or by your own forwarder. Payment terms are Alipay, WeChat, T/T or L/C.
