Generator Engines · 6BTAA5.9

Cummins 6BTAA5.9 Generator Diesel Engine 140 kW Generator Engine Assembly

Name: Cummins 6BTAA5.9 Generator Diesel Engine 140 kW Generator Engine Assembly
Brand: Cummins
SKU: 6BTAA5.9-G12
Availability: InStock

Cummins 6BTAA5.9-G12 6-cylinder in-line diesel engine rated 150 kW (200 HP) with 5.9L displacement for prime and standby generator sets.

Request A Quote Email A Technician

Home
Products
Generator Engines
Cummins 6BTAA5.9 Generator Diesel Engine 140 kW Generator Engine Assembly

Cummins 6BTAA5.9 Generator Diesel Engine 140 kW Generator Engine Assembly complete engine assembly

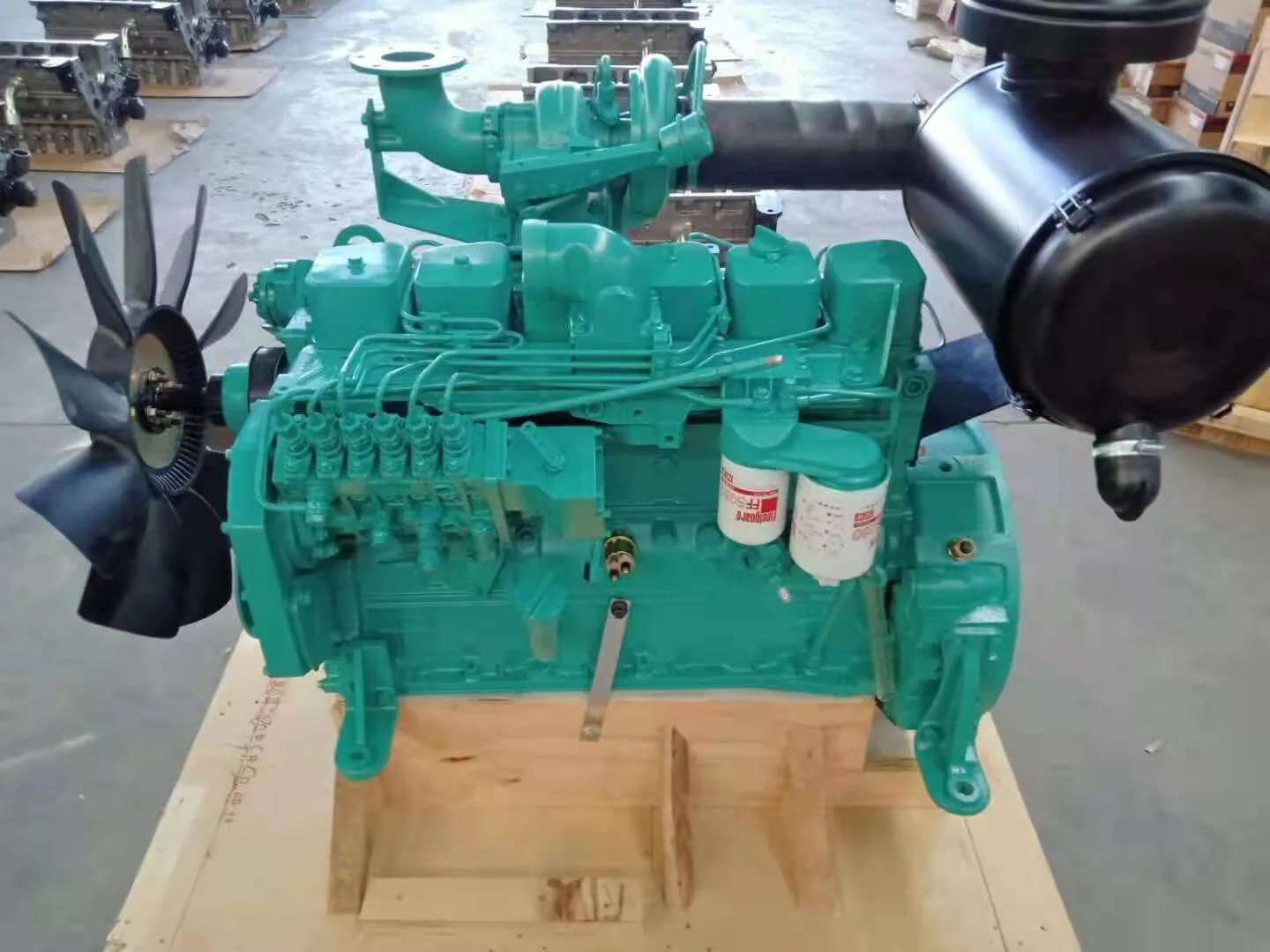

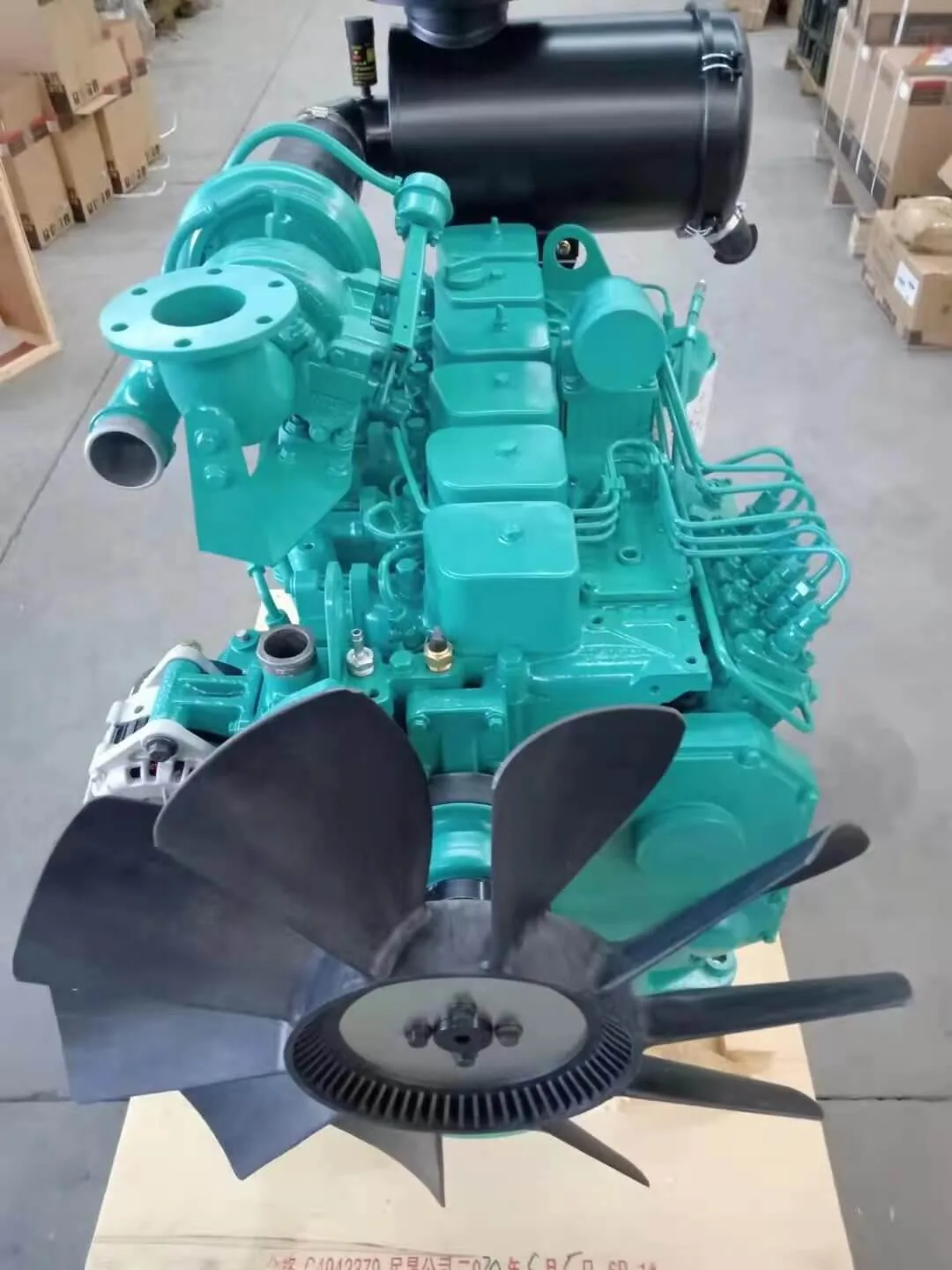

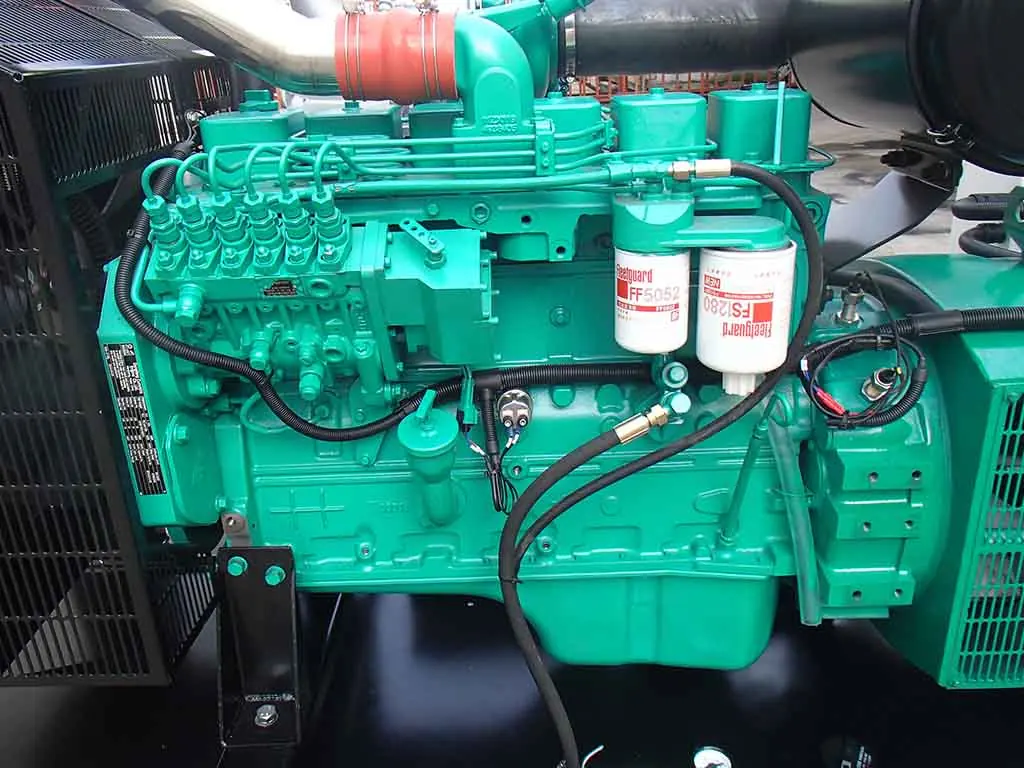

Cummins 6BTAA5.9 Generator Diesel Engine 140 kW Generator Engine Assembly shown from another angle

Overview

What This Engine Is Built For

The Cummins 6BTAA5.9-G12 is a 6-cylinder in-line generator drive diesel engine of 5.9L with a 102 * 120 mm bore and stroke supplied by MEP Power as a complete assembly. It is rated at 150 kW (200 HP). The engine is turbocharged/charge air cooled and water cooled, with a BYC P7100 Pump fuel system. It is built at the Dongfeng Cummins Plant 6BTAA5.9-G12. Typical duty is prime and standby generator sets; dry weight with flywheel and alternator is 411 Kg and the overall envelope is 1110mm*750mm*988mm.

Model6BTAA5.9-G12 (140kw)

Displacement5.9L

AspirationTurbocharged/Charge Air Cooled

Net weight411 Kg

Key Benefits

Delivers 150 kW (200 HP) from 5.9L as a factory-rated assembly.
Turbocharged/Charge Air Cooled induction with water cooling keeps charge temperature under control in continuous duty.
Dry weight 411 Kg and envelope 1110mm*750mm*988mm are published so the installation can be checked before ordering.
Starts without auxiliary aids down to -12℃.
Built on the 6BTAA5.9 platform, a Cummins family with parts availability worldwide
Shipped from Shiyan, Hubei, China with export packing and full documentation

Application Scenarios

Prime mover for a new generator set build
Standby set engine replacement
Rental power fleet rebuild
Containerised power module

Who It Is For

Genset packagers matching an engine to an alternator
Rental power companies rebuilding sets between contracts
Industrial sites replacing the prime mover in an existing canopy
Telecom and data infrastructure contractors specifying standby power

Problems It Solves

An engine that does not hold speed under block load makes the whole set unusable.
Packagers lose weeks when the engine does not match the alternator and the base frame.
Standby sets sit idle for months and must still start and take load on demand.
Identifying the right 6BTAA5.9-G12 variant from a serial number takes experience; MEP Power checks the configuration before quoting.

Technical data

Specification As Published

Values below are the published data for this unit. Where a figure is not listed it was not stated by the source data sheet; ask and we will confirm before you order.

Model	6BTAA5.9-G12 (140kw)
Type	6 Cylinders in Line, 4 Stroke Diesel
Displacement	5.9L
Bore x Stroke	102 * 120
Net Weight	411 Kg
Overall Dimension	1110mm750mm988mm
Manufacturing Plant	Dongfeng Cummins Plant 6BTAA5.9-G12
Rated Power/Speed at 1500 rpm	140 kW/187HP @ 1500 rpm Standby Power/Speed (1500 rpm): 155 kW/207HP @ 1500 rpm
Rated Power/Speed at 1800 rpm	150 kW/200HP @ 1800 rpm Standby Power/Speed (1800 rpm): 165 kW/220HP @ 1800 rpm
Low Idle Speed	950-1050 rpm Fuel Consumption @ Running: ≤ 244g/Kw.h 6BTAA5.9-G12
Aspiration	Turbocharged/Charge Air Cooled
Fuel System	BYC P7100 Pump
Governor Type	Electronic, Regulation 1%-5%
Compression Ratio	17.5:1
Electrical System (starter motor/alternator)	12V/24V
Lowest Starting Temp (without auxiliary system)	-12℃
Engine Cooling Fluid Volume	9.9 L
Cooling Method	Water Cooled

Technical Features

Cylinders: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 5.9L
Bore and stroke: 102 * 120
Aspiration: Turbocharged/Charge Air Cooled
Fuel system: BYC P7100 Pump
Governor: Electronic, Regulation 1%-5%
Electrical system: 12V/24V
Compression ratio: 17.5:1

Quality Control

Every engine is inspected by the MEP Power inspection team before it leaves the warehouse
Engine, configuration and serial numbers are recorded and photographed for the buyer
Genuine and OEM units are quoted separately so the buyer knows exactly what is supplied
Warranty on genuine and OEM new engines and generator sets is one year or 1000 hours, whichever comes first; parts and repair labour are covered for quality faults inside that period.

Use and Installation Guide

Quote the model 6BTAA5.9-G12 when ordering so the correct variant is supplied.
Match the flywheel and SAE housing to the alternator before assembly
Set the governor to the frequency required, 50 Hz or 60 Hz
Run a load bank test before the set goes into service
Keep the warranty terms in mind: one year or 1000 hours, whichever comes first.

Customisation Options

OEM and ODM builds, including your logo and company name on the unit
Cummins engine customisation and modification to your requirement
Mining and special explosion-proof builds
Genuine or OEM parts specified on the quotation

How It Compares

Compared with	What to consider
A rebuilt or used engine of the same rating	A rebuilt unit may show the same 150 kW (200 HP) on paper, but its running history is unknown and the warranty rarely covers the whole engine.
A larger engine in the same 6BTAA5.9 range	Moving up a frame size adds weight, envelope and fuel burn; specify the next size up only if the duty cycle really needs the headroom.
A non-Cummins engine of similar output	Parts and service for Cummins families are available in most markets, which matters more over ten years than the purchase price on day one.

Questions

6BTAA5.9-G12 Questions

Is this 6BTAA5.9-G12 a genuine Cummins engine

MEP Power supplies 100% genuine Cummins engines, generator sets and engine parts, plus OEM units and customised builds. Tell us which you need and the quotation will state clearly whether the unit offered is genuine, OEM or a customised build.

What power does the 6BTAA5.9-G12 produce

The rating supplied is 150 kW (200 HP).

What warranty comes with the engine

New genuine and OEM engines and generator sets carry one year or 1000 hours, whichever comes first. Inside that period MEP Power supplies replacement parts free of charge and covers the cost of the engine repair for quality faults.

How do I confirm this is the right variant for my machine

Send the engine serial number or the nameplate photograph of the unit being replaced. MEP Power checks it against the 6BTAA5.9-G12 configuration before quoting.

How is the engine shipped and what payment terms apply

Shipment is by sea, air or express depending on size and urgency, arranged by MEP Power or by your own forwarder. Payment terms are Alipay, WeChat, T/T or L/C.
