Shanghai Chuban Limited
Complete production lines for paint rollers and brushes.
Twenty years building automatic roller machinery for manufacturers in Europe, the Americas, Southeast Asia and North Africa. Our patented thermofusion process winds 2,000 roller covers an hour — with one operator on the machine.
- 20 yearsBuilding roller and brush machinery
- CE / SGSCertified to European standards
- 2,000 pcs/hWinding output, one operator
- 16,000+9″ roller covers per 8-hour shift
The production line
Fabric in one end, finished rollers out the other.
Every machine we build is designed to sit in the same line. Start with one station or take the whole sequence — the handover points stay the same.
- 1
Slitting
Full-width fabric is slit into strips sized for your roller diameters.
- 2
Winding
Strips are wound onto PP cores and bonded by thermofusion — no adhesive.
- 3
Finishing
Wound tubes are cut, carded, bevelled and sheared into roller covers.
- 4
Assembly
Covers, end caps and inner tubes are brought together automatically.
- 5
Cages
Wire is cut, formed and assembled into the roller cages.
Core machines
The three machines that set your output.
Winding, finishing and assembly decide what a roller line can actually produce in a shift. Everything else feeds them.

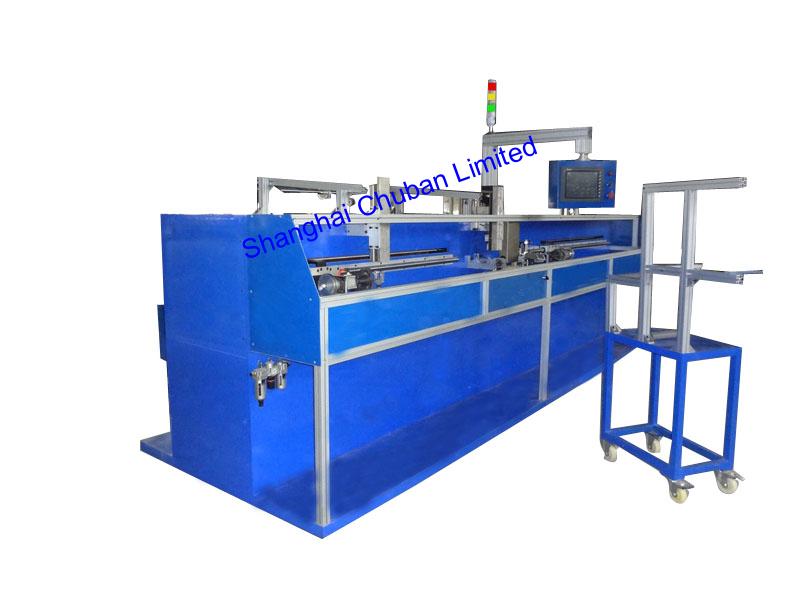

- SHCB02
Automatic Paint Roller Thermofusion Winding Machine
Our patented thermofusion process bonds fabric to the PP core without adhesive — the heart of a modern roller cover line, running 2,000 pieces an hour with one operator.

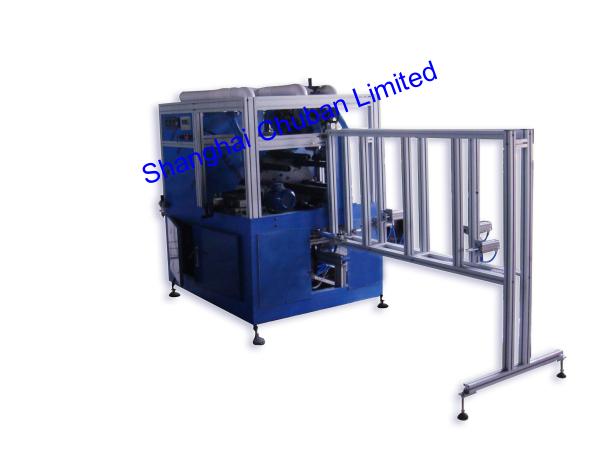

Specifications - SHCB04
Automatic Paint Roller Finishing Machine
Takes wound tubes and delivers finished roller covers: loading, cutting, carding, bevelling and shearing under touch-screen control.

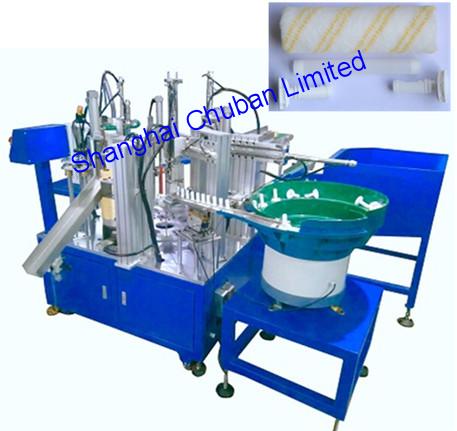

Specifications - YCL07
Automatic Paint Roller Cover, Caps and Inner Tube Assembly Machine
Brings cover, end caps and inner core together in one automatic station — 800 to 900 finished rollers an hour.
Specifications
Why Chuban
Patented thermofusion, not glue.
We hold the patent for the thermofusion process that bonds fabric to the PP core with heat instead of adhesive — faster, cleaner, and stable over years of running.
- One operator per machine. Automatic pipe loading and continuous winding.
- Built to your sizes. Core diameters and line lengths made to order.
- Fast changeovers. Switch diameter or roller length without a rebuild.
- CE certification from SGS. Documentation ready for European customers.
- Rollers and brushes. Yoncol, our sister brand, covers the brush side.
Brush line
Paint brush machinery too.
Bristle mixing, bristle filling and handle insertion — the brush side of the factory, under our Yoncol brand.

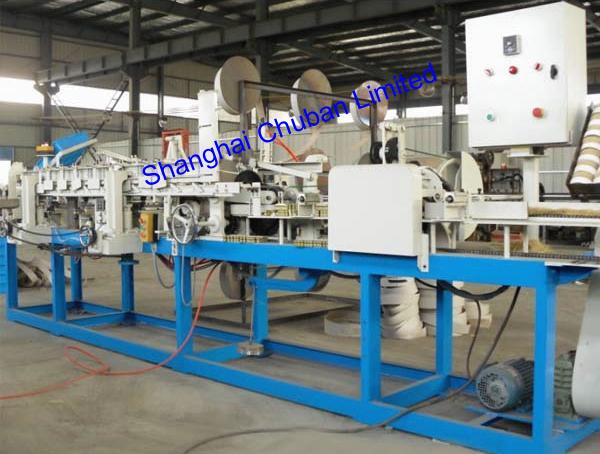

- SHCB14
Paint Brush Bristle Filling Machine
Automates bristle and filament filling for 1″ to 5″ brushes — one machine in place of four skilled fillers.

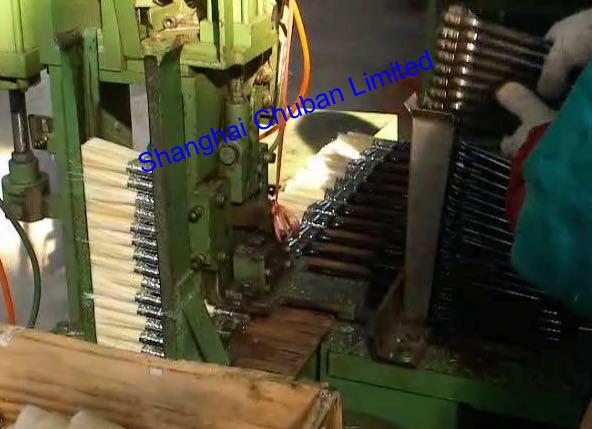

Specifications - SHCB15
Flat Paint Brush Handle Insert Machine
One worker loads heads and handles; the machine inserts them, 1,250 to 2,250 brushes an hour.

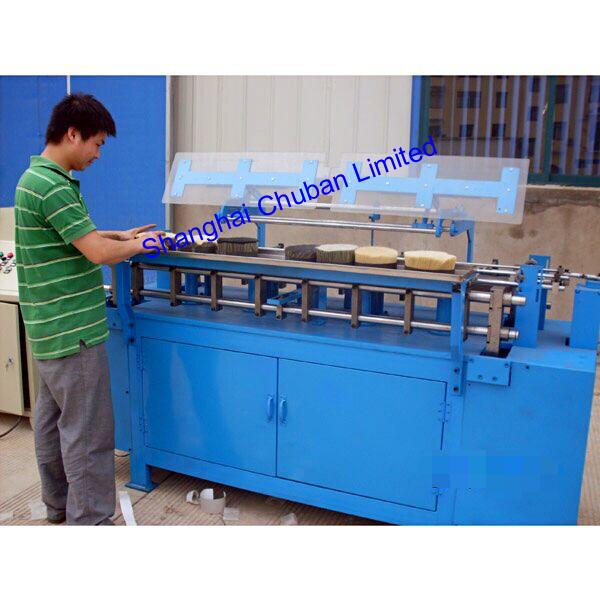

Specifications - SHCB16
Paint Brush Bristle Mixing Machine
Blends natural bristle with synthetic filament, or filament with filament, ahead of the filling machine.
Specifications
See what our machines produce.
Roller cover samples from customer lines — long pile, 6 mm pile and standard fabrics. Free samples available for evaluation.
Get in touch
Tell us what you produce — we will quote the line.
Write to Nicol Liu directly. Include these four things and we can come back with a machine list, output figures, a floor plan and a price, usually within one working day:
- 1Roller sizes you make — diameter and length, in mm or inches.
- 2Fabric or pile you use, and the core material.
- 3Target output per hour or per shift.
- 4What you already run, if you are adding to an existing line.
