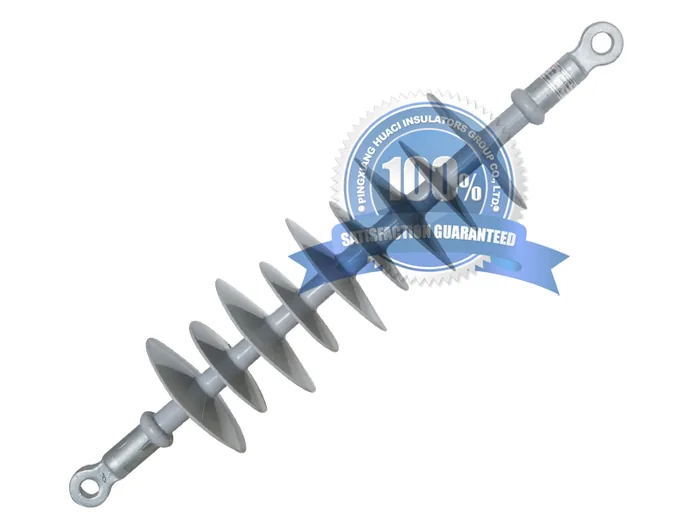

Composite Suspension Insulators FXBW-33/100
Key Data
Huaci engineers provide OEM service to meet the varying needs from customers.
Specifications
All values as published in the Huaci catalogue.
| Shed Diameter | 115 & 75mm |
|---|---|
| Shed Spacing | 65mm |
| Section Length | 500mm |
| Dry Arcing Distance | 380mm |
| Leakage Distance | 930mm |
| Coupling Size | 16mm |
| Specified Mechanical Load (SML) | 100kN |
|---|---|
| Routine Test Load (RTL) | 50kN |
| Low Frequency Dry Flashover Voltage | 135kV |
|---|---|
| Low Frequency Wet Flashover Voltage | 120kV |
| Critical Impulse Flashover Voltage, Positive | 240kV |
| Critical Impulse Flashover Voltage, Negative | 285kV |
| Net Weight, Approximate | 1.8kg |
|---|
Standards
Huaci strictly comply with GB, ANSI, BS, DIN, AS and IEC standard designs, applicable to power transmission lines and substations.
Quality Systems
ISO 9001:2015 Quality Management, ISO 14001:2015 Environment Management and ISO 45001:2018 Occupational Health And Safety Management System certificates.
Export Record
Huaci products are exported to more than 40 countries and have performed well in a variety of global environments.
