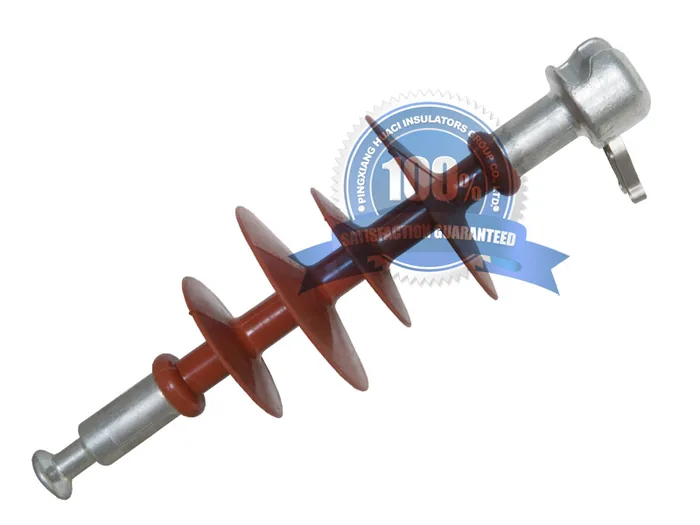

Composite Suspension Insulators FXBW-15/80
Key Data
Huaci engineers provide OEM service to meet the varying needs from customers.
Specifications
All values as published in the Huaci catalogue.
| Shed Diameter | 148 & 118mm |
|---|---|
| Shed Spacing | 50mm |
| Section Length | 420mm |
| Dry Arcing Distance | 200mm |
| Leakage Distance | 480mm |
| Coupling Size | 16mm |
| Specified Mechanical Load (SML) | 80kN |
|---|---|
| Routine Test Load (RTL) | 40kN |
| Low Frequency Dry Flashover Voltage | 85kV |
|---|---|
| Low Frequency Wet Flashover Voltage | 60kV |
| Critical Impulse Flashover Voltage, Positive | 125kV |
| Critical Impulse Flashover Voltage, Negative | 130kV |
| Net Weight, Approximate | 1.4kg |
|---|
