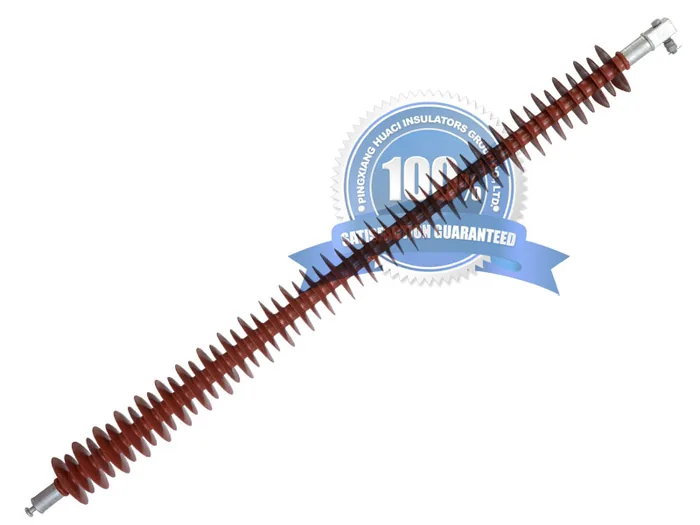

Composite Suspension Insulators FXBW-220/210
Key Data
Huaci engineers provide OEM service to meet the varying needs from customers.
Specifications
All values as published in the Huaci catalogue.
| Shed Diameter | 158 & 128mm |
|---|---|
| Shed Spacing | 85mm |
| Section Length | 2280mm |
| Dry Arcing Distance | 1900mm |
| Leakage Distance | 6125mm |
| Coupling Size | 20mm |
| Specified Mechanical Load (SML) | 210kN |
|---|---|
| Routine Test Load (RTL) | 105kN |
| Low Frequency Dry Flashover Voltage | 740kV |
|---|---|
| Low Frequency Wet Flashover Voltage | 660kV |
| Critical Impulse Flashover Voltage, Positive | 1180kV |
| Critical Impulse Flashover Voltage, Negative | 1220kV |
| Net Weight, Approximate | 14.6kg |
|---|
Standards
Huaci strictly comply with GB, ANSI, BS, DIN, AS and IEC standard designs, applicable to power transmission lines and substations.
Quality Systems
ISO 9001:2015 Quality Management, ISO 14001:2015 Environment Management and ISO 45001:2018 Occupational Health And Safety Management System certificates.
Export Record
Huaci products are exported to more than 40 countries and have performed well in a variety of global environments.
