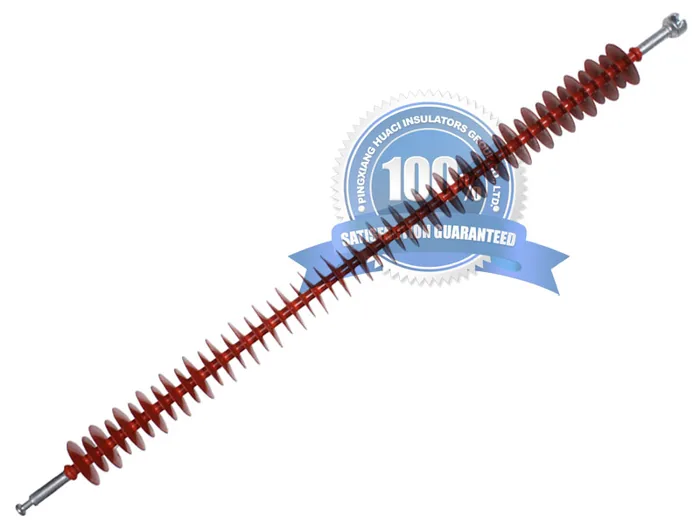

Composite Suspension Insulators FXBW-220/120
Key Data
Huaci engineers provide OEM service to meet the varying needs from customers.
Specifications
All values as published in the Huaci catalogue.
| Shed Diameter | 148 & 118mm |
|---|---|
| Shed Spacing | 80mm |
| Section Length | 2240mm |
| Dry Arcing Distance | 1970mm |
| Leakage Distance | 6300mm |
| Coupling Size | 16mm |
| Specified Mechanical Load (SML) | 120kN |
|---|---|
| Routine Test Load (RTL) | 60kN |
| Low Frequency Dry Flashover Voltage | 720kV |
|---|---|
| Low Frequency Wet Flashover Voltage | 650kV |
| Critical Impulse Flashover Voltage, Positive | 1140kV |
| Critical Impulse Flashover Voltage, Negative | 1190kV |
| Net Weight, Approximate | 9.8kg |
|---|
