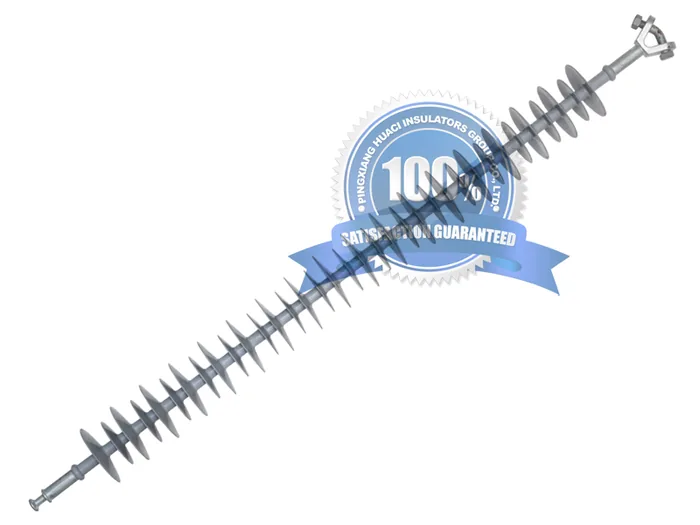

Composite Suspension Insulators FXBW-110/160
Key Data
Huaci engineers provide OEM service to meet the varying needs from customers.
Specifications
All values as published in the Huaci catalogue.
| Shed Diameter | 148 & 118mm |
|---|---|
| Shed Spacing | 80mm |
| Section Length | 1490mm |
| Dry Arcing Distance | 1200mm |
| Leakage Distance | 3650mm |
| Coupling Size | 20mm |
| Specified Mechanical Load (SML) | 160kN |
|---|---|
| Routine Test Load (RTL) | 80kN |
| Low Frequency Dry Flashover Voltage | 460kV |
|---|---|
| Low Frequency Wet Flashover Voltage | 410kV |
| Critical Impulse Flashover Voltage, Positive | 740kV |
| Critical Impulse Flashover Voltage, Negative | 760kV |
| Net Weight, Approximate | 10.0kg |
|---|
