Name: 22.5×8.25
Brand: Resunyou Co., Limited

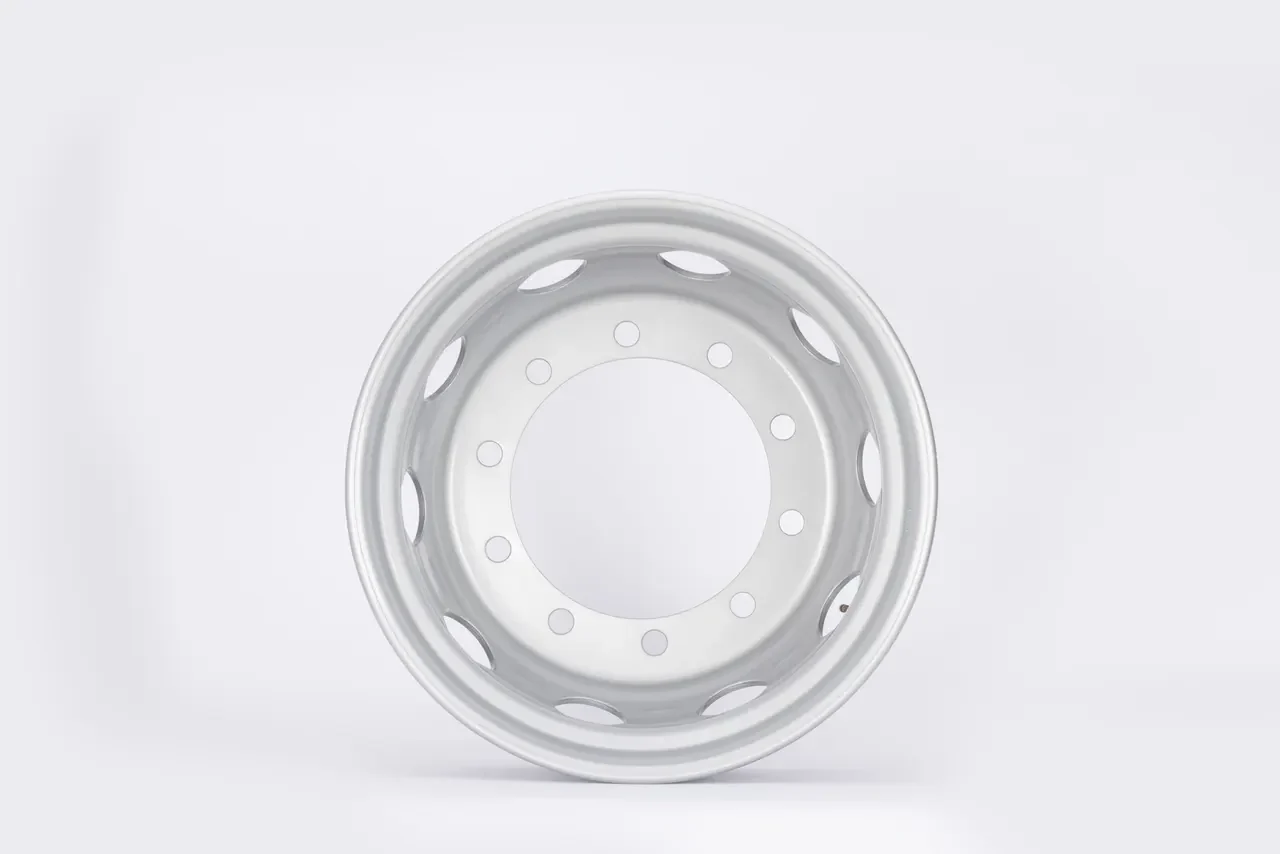

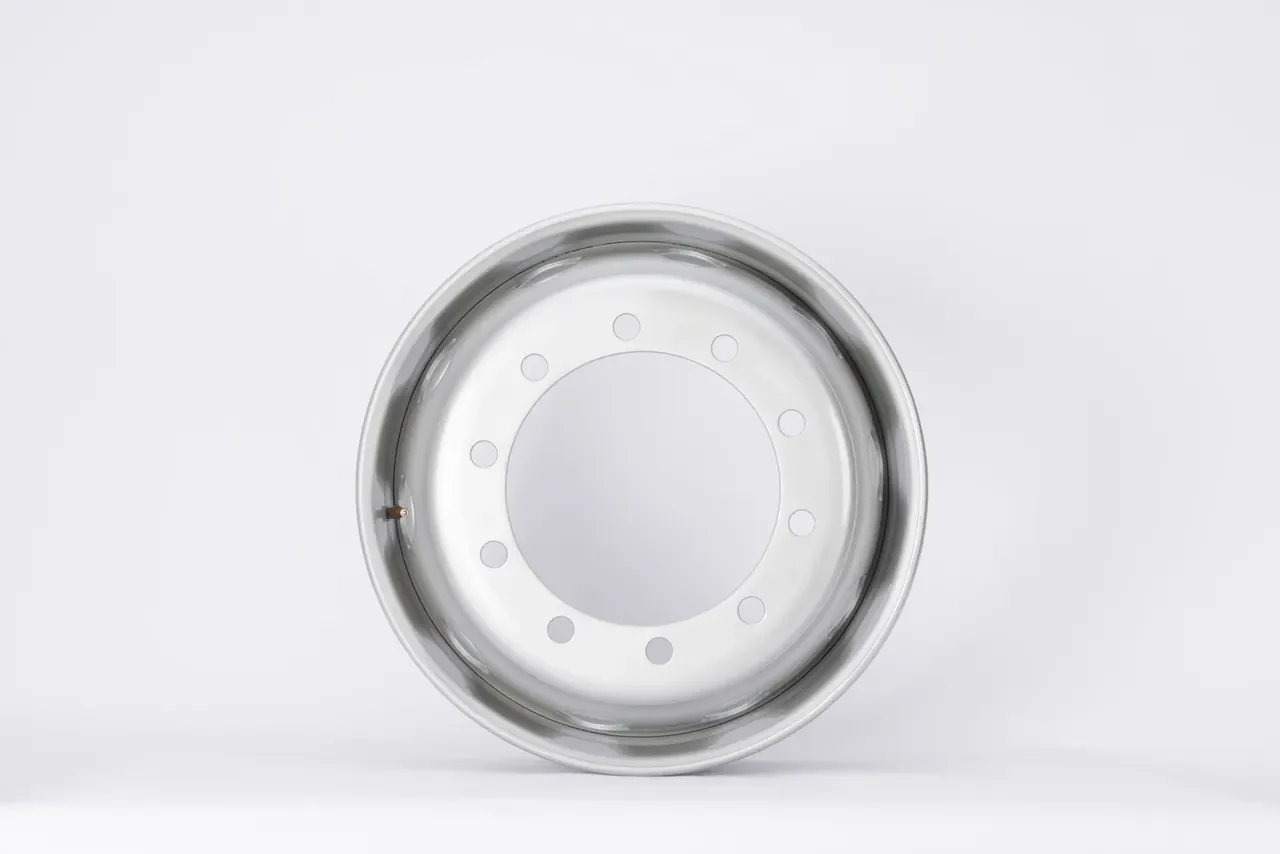

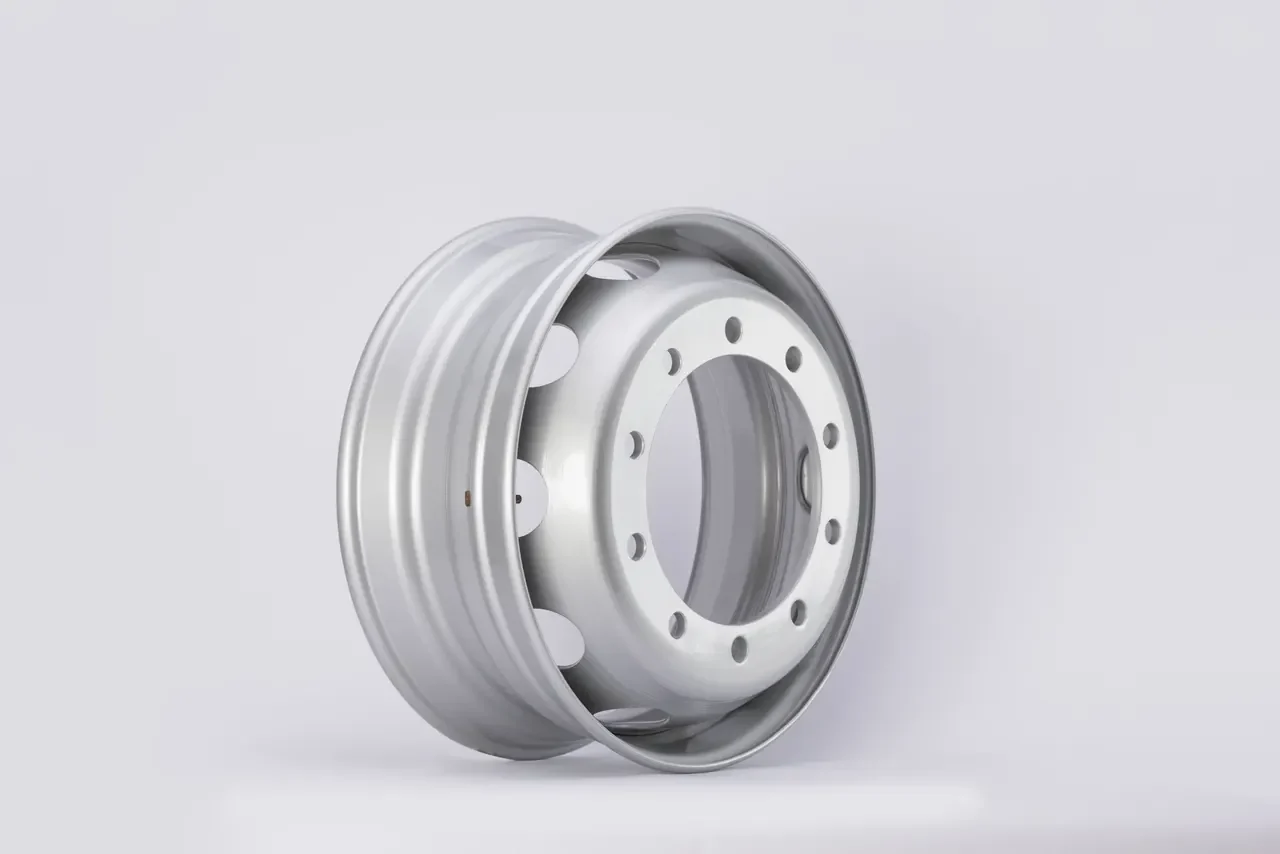

22.5×8.25 truck wheel supplied by Resunyou

Home / Wheels and Rims / Tubeless Steel Wheels / 22.5×8.25

22.5×8.25 is a steel rim designed for truck wheel assemblies, featuring a 165mm offset and a 10-bolt pattern with a φ335 PCD. It supports a rated load of 3000kg and is built for use with tyr

Overview

22.5×8.25 is a steel rim designed for truck wheel assemblies, featuring a 165mm offset and a 10-bolt pattern with a φ335 PCD. It supports a rated load of 3000kg and is built for use with tyres on drive, steer, or trailer axles in commercial transport. The rim profile is compatible with standard 22.5 inch tyres and includes a V3-20-4 valve type for secure air retention.

ISO9001
ISO/TS16949
CCC
E-mark
DOT
GSO/GCC
SONCAP
INMETRO
NOM

What 22.5×8.25 Gives the Operator

165mm offset provides balanced positioning for axle load distribution and steering geometry

10-φ26 bolt hole pattern with φ335 PCD ensures compatibility with common truck wheel hubs

φ281 center hole fits standard hub sizes used in freight and distribution fleets

V3-20-4 valve type allows reliable inflation and pressure monitoring

Steel construction offers durability under heavy-duty service and repeated loading cycles

Application Scenarios

Truck fleets operating on paved highways with regular axle loading and high mileage
Distribution and delivery operations requiring consistent rim performance across multiple vehicles
Heavy-duty transport on mixed road surfaces where rim strength and stability are critical

Who It Is For

Importers sourcing steel rims for truck wheel assemblies in bulk
Distributors needing a standard rim for replacement or fleet maintenance
Fleet operators replacing rims on trucks with 22.5 inch wheels and 10-bolt hubs

What It Is Meant To Fix

Rims that fail under repeated loading due to weak structural design or incorrect offset

Mismatched bolt patterns that prevent proper wheel mounting on standard truck hubs

Valve issues leading to air loss or difficulty in pressure checks during routine maintenance

Published Data For 22.5×8.25

These are the figures published for this product. Anything not listed here is confirmed in writing before an order.

Model 22.5×8.25
Rated Load 3000kg
Distributed Circle (PCD) φ335
Bolt Hole 10-φ26
Center Hole φ281
Screw Hole Type 1×45°
Offset 165
Wind Hole Type 10-φ70
Valve Type V3-20-4

Technical Features

Model: 22.5×8.25 steel rim without inner tube
Rated load capacity: 3000kg at standard operating pressure
Distributed circle (PCD): φ335 with 10 bolt holes of φ26 diameter
Center hole: φ281 to fit standard hub sizes
Screw hole type: 1×45° for secure fastening
Offset: 165mm for proper wheel alignment and axle balance
Wind hole type: 10-φ70 for hub and wheel assembly stability
Valve type: V3-20-4 for reliable air retention and pressure monitoring

Customisation

Rims can be packed in mixed configurations within a container shipment
Surface finish options available upon request, including zinc plating or black coating
Marking and labelling on rims can be adapted for destination market requirements

Quality Control

Rim profile inspected for dimensional accuracy before final assembly
Bolt hole alignment verified to ensure proper hub and wheel fit
Surface finish checked for defects and corrosion resistance
Production conducted under ISO9001 and ISO/TS16949 systems

How It Compares

Compared with A lighter aluminium rim Steel rim offers higher load capacity and durability under heavy-duty use, though it is heavier
Compared with A rim with a different offset 165mm offset ensures better alignment with standard truck axle setups, reducing steering drag and wear

Getting the Most Out Of It

Install only on vehicles with matching hub size and bolt pattern
Ensure the rim is clean and free of damage before mounting the tyre
Use torque specifications recommended by the vehicle manufacturer when tightening bolts
Check rim condition and bolt tightness during routine maintenance intervals
