Nylon Cable glands

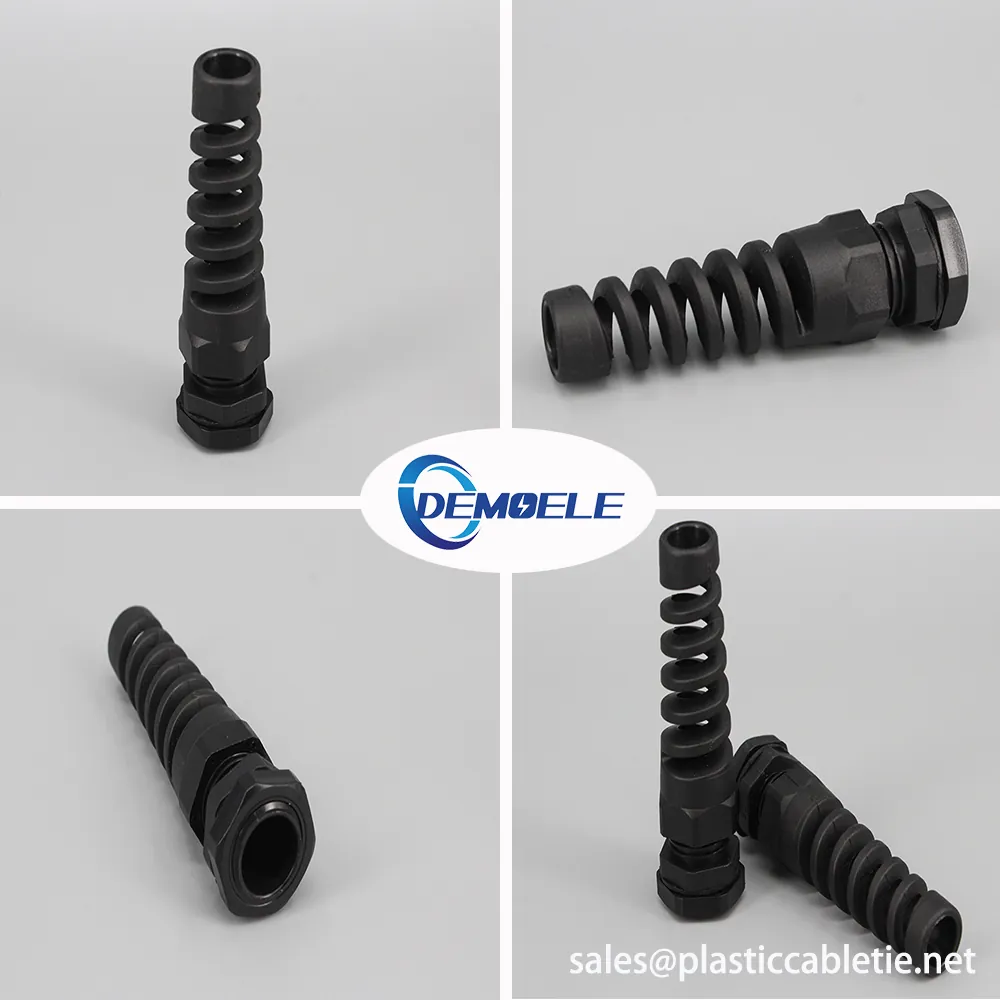

CE Approved nylon PA material black and grey color IP68 spiral Waterproof PG Cable Glands With Strain Relief

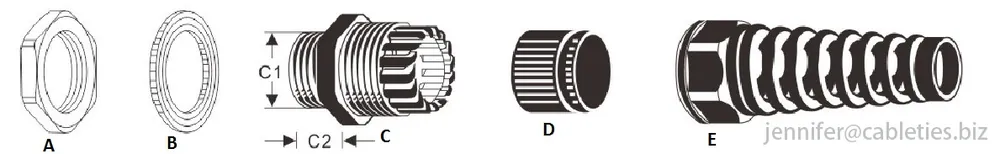

| Material | Nylon PA66(Flammability UL94V-2)for A,C,E parts(accept to customize flammability UL 94V-0 ).EPDM rubber for B,D parts(accept to customize resist high temperature rubber,resist strong acid/alkali,etc) |
|---|---|
| IP degree | IP68 |
| Working temperature | -40℃ to 100℃ |
| Feature | The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,it’s harder to pull cable out. |
| Colours | Black,Grey,other color available upon request. |
Free sample · No MOQ on common products · Usually within 15 days · ISO9001, SGS, CE, RoHS, REACH
Resistant to salt water,weak acid,alcohol,oil,grease,etc.
Specification
| Type | Cable diameter (mm) | Thread diameter C1(mm) | Thread length C2 (mm) | Wrench diameter (mm) | Remark |
| PG7 | 3-6.5 | 12.5 | 8 | 16 | Standard type |
| PG9 | 4-8 | 15.2 | 8 | 19 | |
| PG11 | 5-10 | 18.6 | 8 | 22 | |
| PG13.5 | 6-11 | 20.4 | 10 | 24 | |
| PG16 | 10-13 | 22.5 | 10 | 27 | |
| PG21 | 13-18 | 28.3 | 10 | 33 | |
| PG7 | 2-5 | 12.5 | 8 | 16 | Rubber ring thicken type |
| PG9 | 2-6 | 15.2 | 8 | 19 | |
| PG11 | 3-7 | 18.6 | 8 | 22 | |
| PG13.5 | 5-9 | 20.4 | 10 | 24 | |
| PG16 | 7-12 | 22.5 | 10 | 27 | |
| PG21 | 9-16 | 28.3 | 10 | 33 | |
| M12x1.5 | 3-6.5 | 12 | 8 | 16 | Standard type |
| M16x1.5 | 4-8 | 16 | 8 | 19 | |
| M18x1.5 | 5-10 | 18 | 8 | 22 | |
| M20x1.5 | 6-11 | 20 | 10 | 24 | |
| M22x1.5 | 10-13 | 22 | 10 | 27 | |
| M25x1.5 | 13-18 | 25 | 10 | 33 | |
| M27x1.5 | 13-18 | 27 | 10 | 33 | |
| M12x1.5 | 2-5 | 12 | 8 | 16 | Rubber ring thicken type |
| M16x1.5 | 2-6 | 16 | 8 | 19 | |
| M18x1.5 | 3-7 | 18 | 8 | 22 | |
| M20x1.5 | 5-9 | 20 | 10 | 24 | |
| M22x1.5 | 7-12 | 22 | 10 | 27 | |
| M25x1.5 | 9-16 | 25 | 10 | 33 | |
| M27x1.5 | 9-16 | 27 | 10 | 33 |
Details of product
