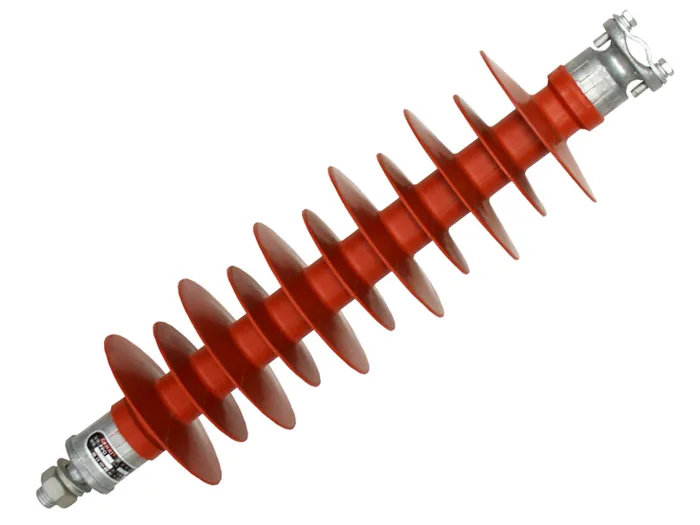

Composite Line Post Insulators FPQ-35/10
Key Data
Huaci engineers provide OEM service to meet the varying needs from customers.
Specifications
All values as published in the Huaci catalogue.
| Shed Diameter | 150 & 120mm |
|---|---|
| Shed Spacing | 60mm |
| Section Length | 425mm |
| Dry Arcing Distance | 365mm |
| Leakage Distance | 1100mm |
| Specified Cantilever Load (SCL) | 10kN |
|---|---|
| Max Design Cantilever Load (MDCL) | 5N |
| Low Frequency Dry Flashover Voltage | 140kV |
|---|---|
| Low Frequency Wet Flashover Voltage | 120kV |
| Critical Impulse Flashover Voltage, Positive | 220kV |
| Critical Impulse Flashover Voltage, Negative | 230kV |
| Net Weight, Approximate | 3.3kg |
|---|
Standards
Huaci strictly comply with GB, ANSI, BS, DIN, AS and IEC standard designs, applicable to power transmission lines and substations.
Quality Systems
ISO 9001:2015 Quality Management, ISO 14001:2015 Environment Management and ISO 45001:2018 Occupational Health And Safety Management System certificates.
Export Record
Huaci products are exported to more than 40 countries and have performed well in a variety of global environments.
Related Products
All Line Post →
Composite Line Post Insulators FPQ-10/10
Composite Line Post Insulators FPQ-11/10
Composite Line Post Insulators FPQ-15/12.5
Composite Line Post Insulators FPQ-20/8
Composite Line Post Insulators FPQ-22/11
Composite Line Post Insulators FPQ-33/8
Composite Line Post Insulators FPQ-33/11
Composite Line Post Insulators FPQ-33/12.5
FAQ
About Composite Line Post Insulators FPQ-35/10
What is the specified cantilever load (scl) of Composite Line Post Insulators FPQ-35/10?
The published specified cantilever load (scl) of Composite Line Post Insulators FPQ-35/10 is 10kN.
What does Composite Line Post Insulators FPQ-35/10 weigh?
The published net weight is 3.3kg each.
What is the leakage distance of Composite Line Post Insulators FPQ-35/10?
The published leakage distance is 1100mm.
Which design standards does Huaci comply with?
Huaci strictly comply with GB, ANSI, BS, DIN, AS and IEC standard designs, applicable to power transmission lines and substations.
What system voltages are covered?
Huaci specialises in insulator manufacture up to 500 kV AC and 400 kV DC system voltages.
Is OEM or customised production available?
Yes. Huaci engineers are able to provide OEM service to meet the varying needs from customers and assist the customers to develop their market better.
Which quality certificates does the factory hold?
Quality Management System Certificate ISO 9001:2015, Environment Management System Certificate ISO 14001:2015 and the Occupational Health And Safety Management System Certificate ISO 45001:2018.
Request A Quotation For Composite Line Post Insulators FPQ-35/10
Send the quantity and destination port and Huaci will reply with pricing, packing details and lead time.
