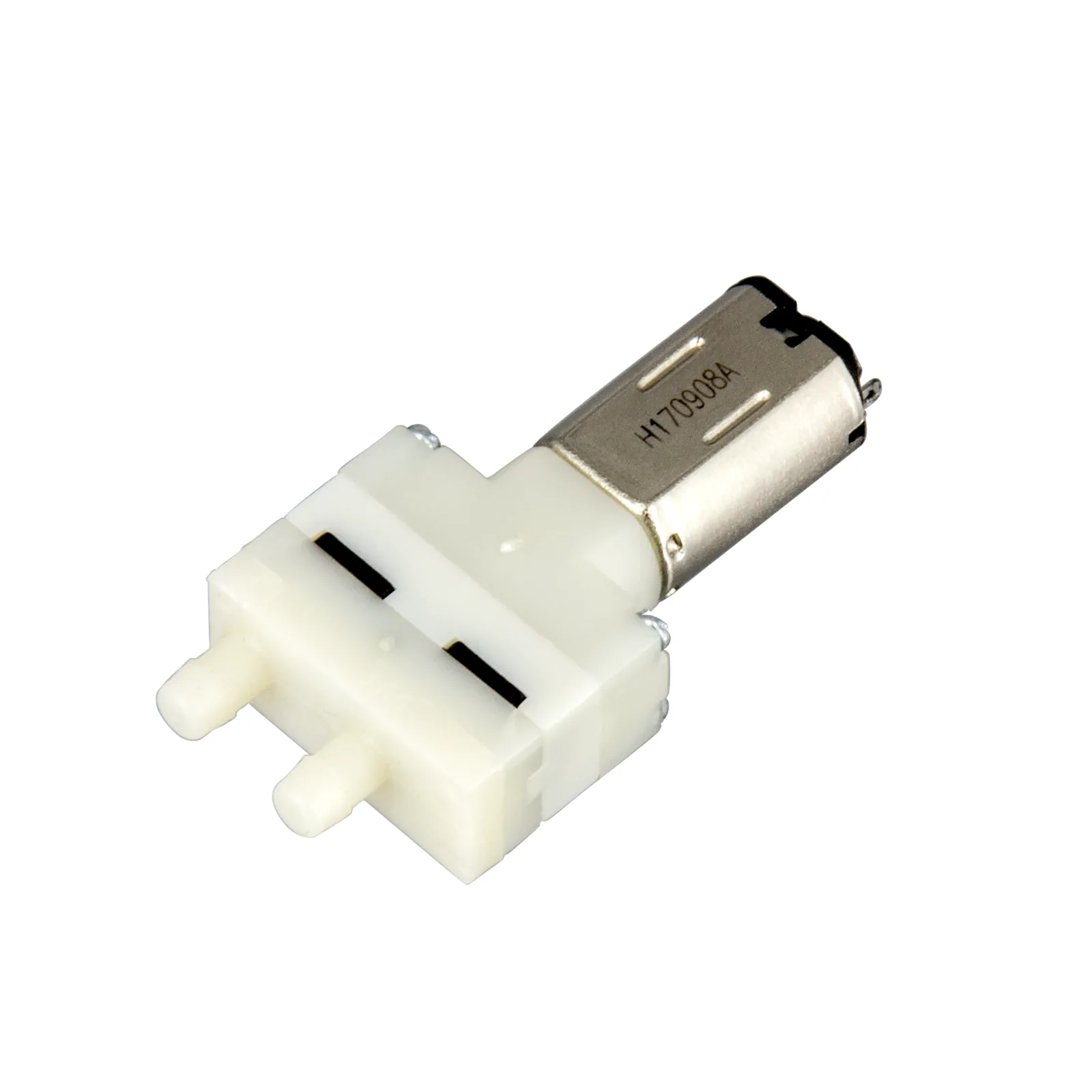

Miniest water pump FW0801XPW
A very small pump that the factory lists for sweepers and dual air/water duty.
FW0801XPW is titled “miniest water pump”. The page lists 3 V / 4.5 V / 6 V, flow 30–60 ml/min, inlet/outlet φ 3.2 mm, and names sweeper brands as application examples. It also states the platform can be applied as an air pump or a water pump.
Who it is for. Sweeper, hair-tool and instrument OEMs.
The problem it is aimed at. Robot sweepers and compact beauty tools have almost no volume left for a pump, yet still need a published flow.
Source listing id: products-FW0801XPW. Numbers not printed on that page are marked TBC on request — they are not invented here.
What the listing actually says
- Voltage 3 V / 4.5 V / 6 V.
- Water flow 30–60 ml/min; ports φ 3.2 mm.
- Rated table: DC 3.0 V / DC 5.0 V, current < 200 mA / < 150 mA.
- Water pressure > 150 mmHg; noise < 60 dB at 30 cm.
- Life test 200 hours; environment 0–50 °C, 75% RH.
- Applications named: sweeper, hair straightener, gas detection, beauty and medical devices.
Published parameters
| Model | FW0801XPW |
|---|---|
| Rated voltage (table) | DC 3.0 V / DC 5.0 V |
| Also listed voltages | 3 V / 4.5 V / 6 V |
| Rated current | < 200 mA / < 150 mA |
| Water pressure | > 150 mmHg |
| Water flow | 30–60 ml/min |
| Ports | φ 3.2 mm |
| Noise | < 60 dB at 30 cm |
| Fluid | Water |
| Life test | 200 hours |
| Environment | 0–50 °C, 75% RH |
Questions buyers ask
Can one housing cover air and water?
The source page states it can apply for air pump and water pump. Confirm seals and media with the factory before dual-use.
What life figure is published?
Life test 200 hours on the parameter table.
Factory FAQ: reply within 24 hours; sample 3 working days.
