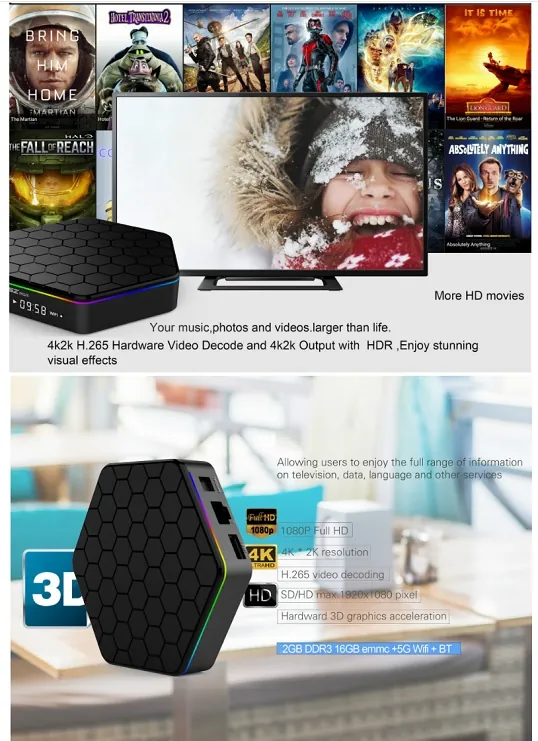

Product Specification
Specification
Published exactly as supplied by the factory. Ask our engineers if you need a value confirmed for your project.
| Item | Description |
|---|---|
| Packing | |
| Product size | |
| 115x115x22mm | |
| Packaged weight | 0.45kg |
| Loading for 20HQ | 430 x290 x 280mm |
| Product Color | Black |
| System Config | |
| CPU | |
| S912 Octa-core cortex-A53 frequency：2.0G | |
| GPU | Mali-T820MP3 |
| FLASH | 16GB EMMC |
| SDRAM | 2GB DDR3 |
| Power Supply | |
| Power Supply | |
| DC 5V/2A | |
| Power Indicator (LED) | Power ON :blue/green/Grey-blue |
| Main Features | |
| Case | |
| Plastic material (Private model ) | |
| OS | Android6.0 |
| KODI | 16.1 |
| WIFI | 2.4G +5G +Bluetooth |
| 3D | Hardward 3D graphics acceleration |
| Support Decoder format | VP9-10 Profile-2 up to 4Kx2K@60fps H.265 HEVC [email protected] up to 4Kx2K@60fps H.264 AVC [email protected] up to 4Kx2K@30fps H.264 MVC up to 1080P @60fps MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) WMV/VC-1 SP/MP/AP up to 1080P@60fps AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) RealVideo 8/9/10 up to 1080P@60fps WebM up to VGA Multiple language and multiple format sub-title video support MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) Supports JPEG thumbnail, scaling, rotation and transition effects Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file HD MPEG1/2/4,H.264, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10 |
| Support Media format | Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
| Support Music format | MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE |
| Support Photo format | HD JPEG/BMP/GIF/PNG/TIFF |
| USB host | 2 High speed USB 2.0,support U DISK and USB HDD |
| Card reader | SD/SDHC/MMC cards |
| HDD file system | FAT16/FAT32/NTFS |
| Support Subtitle | SRT/SMI/SUB/SSA/IDX+USB |
| High Difinition video output | SD/HD max.1920x1080 pixel |
| OSD type of languages | English/French/German/Spanish/Italian/ etc multilateral languages |
| LAN | Ethernet:Standard10/100M/1000M,Gigabit RJ-45 |
| Wireless | Built inDual-bandWiFi |
| Mouse/ Keyboard | Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle |
| HDMI | HDMI2.0 up to 4k2k Output withHDR, CEC and HDCP 2,2, 4Kx2K@60 max resolution output |
| 4K2k hd decoding | 4k2k H.265 Hardware Video Decode and 4k2k Output |
| 1080P/AV/3G | Support |
| Dolby | Support |
| SPDIF/IEC958 | Coaxial |
| Software Specifications | |
| Network Function | |
| Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc | |
| Other feature | Free Internet searching,thousands of android applications,many kinds of games,etc. |
Related Products
FAQ
Yes. FIC Tech is a reliable OEM partner and provides customers with high quality products, flexibly meeting the different requirements of customers. Send your branding, firmware or packaging requirement to [email protected].
The published specification for this model references H.265 / HEVC, H.264, MPEG-4, HDMI, Ethernet / LAN, Bluetooth, Android. Full details are in the technical data table on this page.
Email [email protected] with the quantity you need, or call the overseas department on 0086-15913293646. The Zhuhai office can also be reached on 0086-756 6213778.
S912 Android box is listed under Android TV Boxes. Amlogic based Android media boxes, including S905X3, S912 and hybrid DVB tuner models.
Send us your target quantity, the market it is going to and any customisation you need. We will reply with a price, the lead time and packing details.
