For each model has different front panels can be chosen !
Specification
Published exactly as supplied by the factory. Ask our engineers if you need a value confirmed for your project.
| Feature : | |
| 1. Fully SD/HD DVB-T , SD/HD MPEG2 and MPEG4 AVC H.264 | |
| Multimedia format: | |
| 2.Compatible with480i / 480p / 576i / 576p / 720p / 1080i / 1080P video formats | |
| Picture: JPEG,BMP, PNG | |
| 3.Auto and manually scan all available TV and radio channels | |
| Audio: MP3,WMA | |
| 4.Aspect ratio 16:9 and 4:3 | |
| Video: DivX ,MPG, MKV , MP4 , AVI | |
| 5.HDMI , Scart , YPbPr , RCA, coaxial output | |
| 6.Multi-language subtitle output supported | |
| Front panel | |
| 7.Powerful and highly effective 7-day EPG function | |
| with display | |
| 8.Supports teletext | |
| USB firmware upgrade PVR and multimedia playback | |
| 9.Parental lock | |
| Channel decoding | |
| 10.PVR ，timeshift via USB 2.0 | |
| Standard: DVB-T | |
| 11.Multimedia playback and software upgrade via USB 2.0 | |
| 12.Stores up to 1,000 programs | |
| Demodulation: QPSK , 16QAM , 64QAM | |
| FEC : 1/2, 2/3, 3/4, 5/6, 7/8, automatic | |
| Tuner | |
| Guard: 1/4,1/8,1/16,1/32 | |
| IF input frequency: VHF: 174MHz - 230MHz /UHF: 474MHz - 860MHz | |
| Mode: 2K , 8K | |
| Bandwith : 7/ 8MHz | |
| Input level: -83dBm | |
| Demultiplexer | |
| Signal input: IEC-type female | |
| Standard ISO/ IEC 13818-1; ARIB STB-B10 | |
| Chipset: MDS | |
| Input max. bit stream rate: 120Mbps (serial)/ 15MBps (parallel) | |

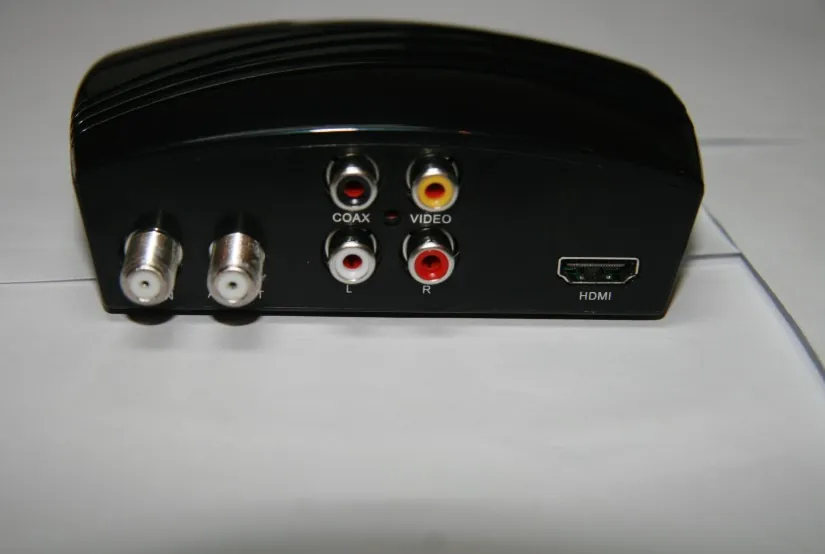

| Rear panel output | |
| Mpeg transport stream and A/V decoding | |
| HDMI 576i , 576p , 720p and 1080i / 1080P | |
| Video standard: MPEG-4 AVC / H.264 HP@L4 | |
| Loop through output: IEC-type , connector, single tuner | |
| SCART video model CVBS / RGB (for Europe | |
| TV SCART 1 | |
| Aspect ratio: 4:3, 16:9 | |
| VCR SCART 1 | |
| (OPTIONAL) | |
| Video resolution: 576i , 576p , 720p and 1080i , 1080P | |
| Coaxial: RCAX1 | |
| Audio standard: ISO/ IEC 14.496-3, AC3 | |
| YpbPr RCAX3 | |
| Audio mode: mono, dual-channel, stereo | |
| L/R audio RCAX2 |
