4 products in this category

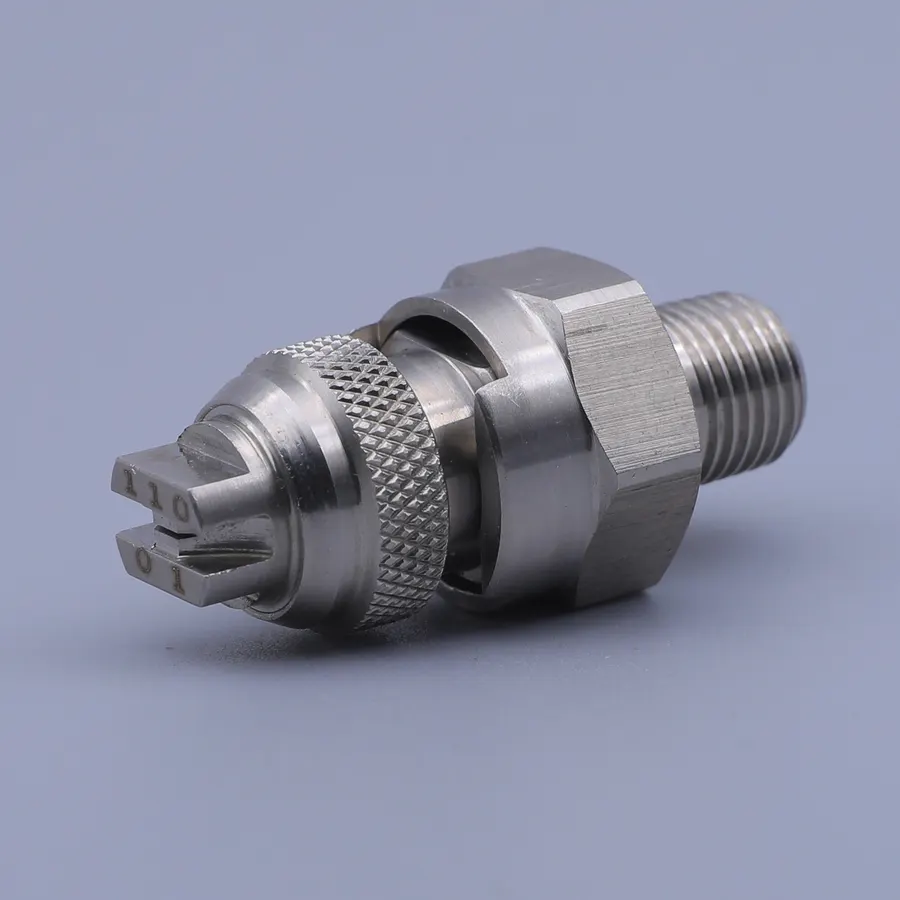

Standard Flat Fan Nozzle (CH-U / CH-VV)
One-piece construction with uniform distribution and tapered edges for overlapping sprays; high impact, with extra-wide angles available.
| Spray angles | 0°–120° |
|---|---|
| Flow rates | 0.39–3430 L/min at 3 bar |
| Thread size | 1/8″–3″ BSPT or NPT |
| Materials | 303SS, 316SS, brass, PP, PVC, PVDF, PTFE |

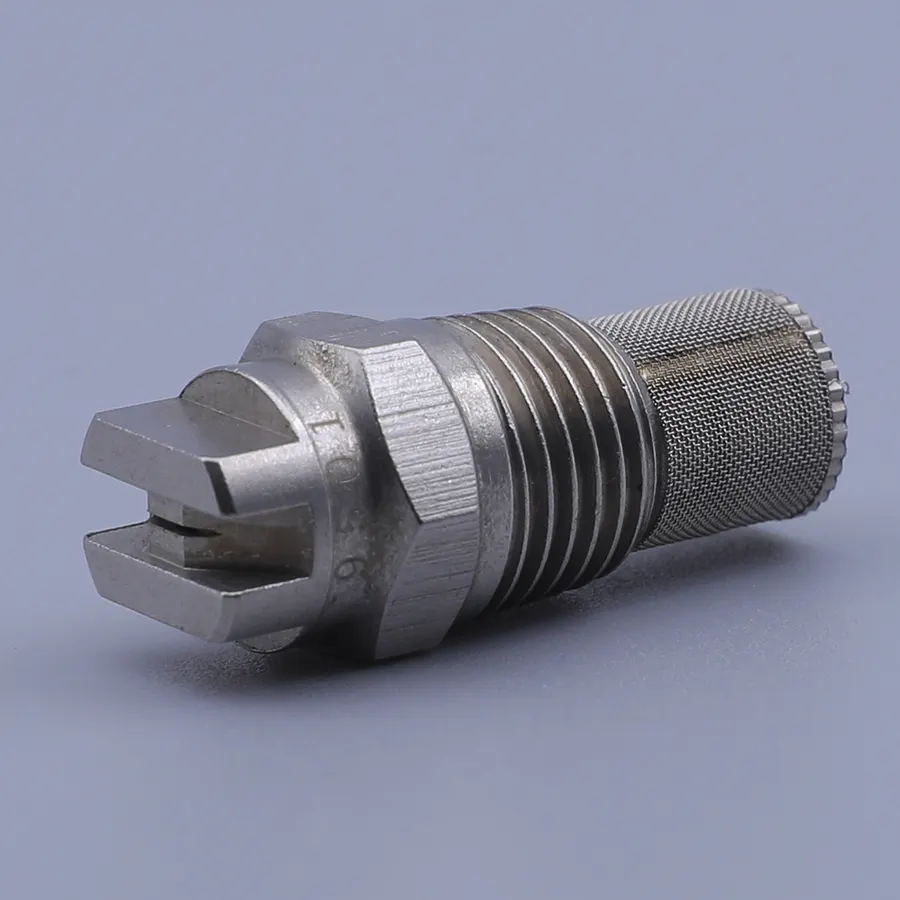

Flat Fan Nozzle with Filter
The same nozzle as the CCU and CCV series, fitted with a filter.
| Filter | 50 / 100 / 150 mesh |
|---|

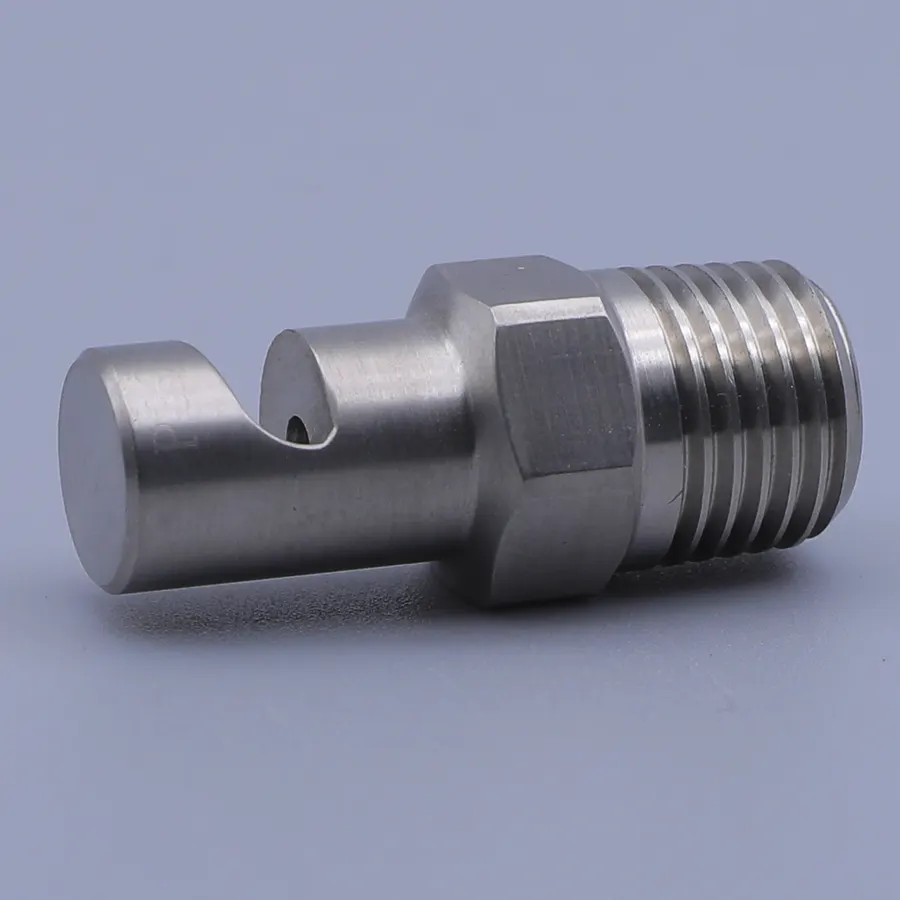

Deflected Floodjet Nozzle (CK)
Wide-angle deflected flat fan with a medium-impact spray discharged 75° from the inlet axis; one piece with no internal parts.
| Spray angles | 105°–145° |
|---|---|
| Flow rates | 0.2–757 L/min at 3 bar |
| Materials | 303SS, 316SS, brass, PP, PVC, PVDF, PTFE |

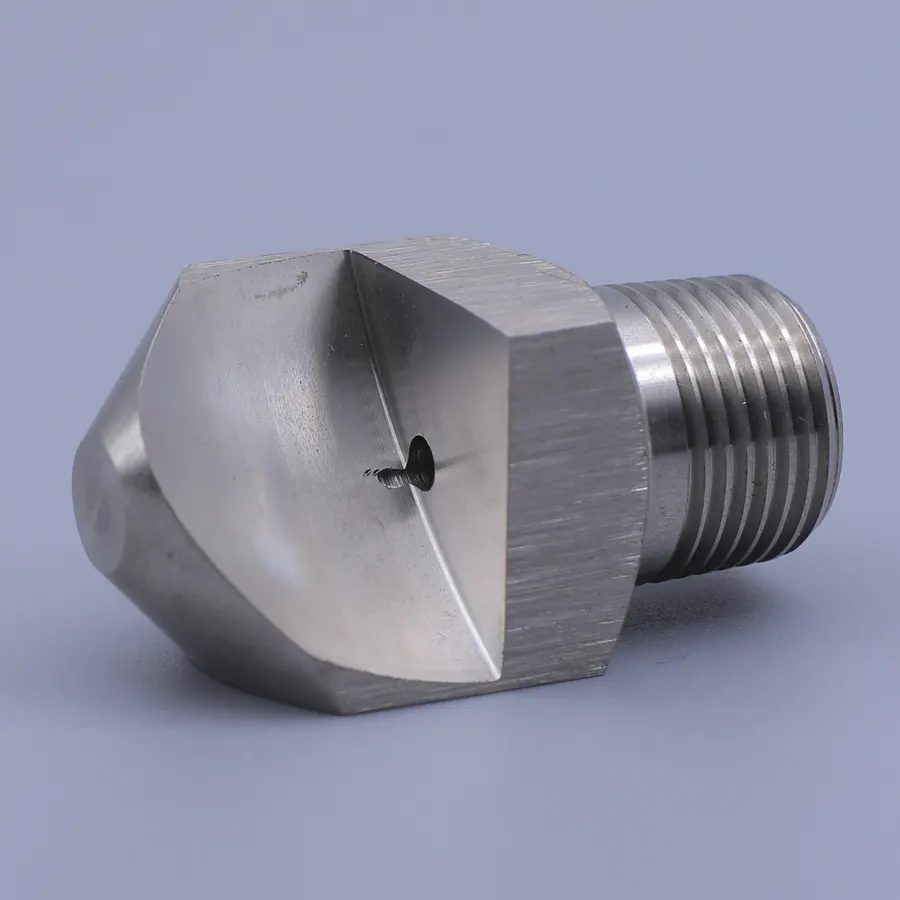

High Impact Flat Fan Nozzle
Narrow fan with higher impact than standard flat fan nozzles and a relatively large, clog-resistant orifice; also used in paper making.
| Spray angles | 15°, 25°, 35°, 40°, 50° |
|---|---|
| Flow rates | 1.6–177 L/min at 3 bar |
| Materials | 303SS, 316SS, brass, PP, PVC, PVDF, PTFE |
Product details are summarised from the supplier's own website. Confirm specifications, MOQ, price and lead time directly with the supplier.
