Beyond Industry Groups Limited

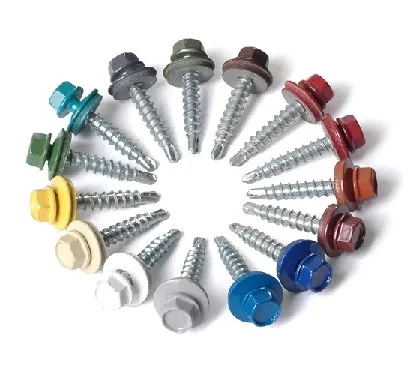

3 HWH TEK Screws
SUS302/304/305/316/410, and carbon steel C1022/1018/10B21 · #6-#14
Product Notes
- Color coating head is suitable for any color roofing, different color is a available. Steel+rubber EPDM seal washer is always keeping water off.
Specifications
| Material | SUS302/304/305/316/410, and carbon steel C1022/1018/10B21 |
|---|---|
| Size range | #6-#14 |
| Length range | 13-200mm |
| Category | Roofing and Construction Screws / Self Drilling and TEK Screws |
Values shown are the ranges recorded for this item. Wider sizes are available across the factory envelope of M0.8 to M42 and 2 mm to 3000 mm.
Configuration Options
- Head Type
- FLATPANHWHHWFBUGLEWAFERPAN WASHEROVALFLOWERTRUSSROUND
- Drive
- PHILLIPSSQUAREPOZISQUARE+PHILTORXSLOTTEDPHIL+SLOTTEDOTHER
- Point Type
- TEK#1TEK#2TEK#3TEK#4TEK#5TYPE 17
- Thread Type
- TYPE-ABSB TYPECSB TYPEHI-LOWMACHINEDOUBLEOTHER10#-12 THD6#-20 THD8#-32 THD12#-11 THD7#-19 THD10#-24 THD14#-10 THD8#-18 THD12#-24 THD10#-16 THD14#-20 THD
- Plating
- PLAINZINC PLATEDCOLOR ZINC PLATEDBLUE ZINC PLATEDBLACK PHOSPHATEGRAY PHOSPHATEBLACK ZINC PLATEDWHITE ZINC PLATEDBLACK OXIDEDACROTIZEDRUSPERTXYLANNICKELBRONZESPRAY PAINTOTHER
- Additional Request
- SERRATION UNDER HEADW/O WASHERW/BONDED WASHERW/PVC WASHERW/STEEL EPDMW/RUBBER WASHERW/HEAD MARKW/WINGSLOTTED + WINGOTHER
Ordering
Send the size, length, material, finish and quantity and we will come back with a price and a lead time. We quote from a drawing, a sample or a standard part number.
Related Products
Other items from Self Drilling and TEK Screws.
Frequently Asked Questions
What size and length is 3 HWH TEK Screws available in?
The recorded range for this item is diameter #6-#14 and length 13-200mm. Outside that, the factory envelope is M0.8 to M42 and 2 mm to 3000 mm.
Which material is 3 HWH TEK Screws made from?
Recorded for this item: SUS302/304/305/316/410, and carbon steel C1022/1018/10B21. We also run mild and medium carbon steel, alloy steel, brass and aluminium.
What finishes can you apply?
PLAIN, ZINC PLATED, COLOR ZINC PLATED, BLUE ZINC PLATED, BLACK PHOSPHATE, GRAY PHOSPHATE, BLACK ZINC PLATED, WHITE ZINC PLATED, BLACK OXIDE, DACROTIZED, RUSPERT, XYLAN, NICKEL, BRONZE, SPRAY PAINT, OTHER. Salt spray resistance runs from 24 hours to 2000 hours depending on the material and finish chosen.
How do I order 3 HWH TEK Screws?
Email with the size, length, material, finish and quantity, or call 0086-769-81369466. We quote against a drawing, a sample or a standard part number.
Quote 3 HWH TEK Screws
Tell us the size, length, material, finish and quantity. We reply with a price and a lead time.
