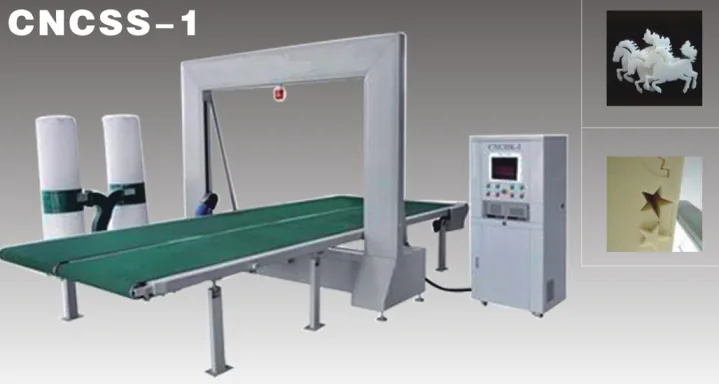

CNCSS-1 Fast wire foam contour cutting machine
Fast wire foam cutting machine is computerized controlled, which is easy to operate and with fast cutting speed, you can cut hard PU foam, EVA, PE, PEE.
- Supplied by SUNSHINE INTERNATIONAL CO.,LTD
- Contact Ms Icy · [email protected]
- Tel 0086-13857880865 · Fax 0086-574-56877860
Product Overview
This machine is computerized controlled, which is easy to operate and with fast cutting speed, you can cut hard
PU
foam, EVA, PE, PEE.
Specifications
| Machine weight | 2400kg |
|---|---|
| Voltage | 380v 3P 50hz |
| Machine size | 5000x3000x2800mm |
| Max block size | 2500x2100x1200mm |
| Cutting wire size | 10830x1.5mm |
| Speed of wheel | 2800r /min. |
| Working speed | 0-6.3m/min. |
| Process precision | ±0.5mm |
| Min working size | 5mm |
| Type of CNC | Industrial computer |
|---|---|
| Display | LCD display |
| Controlling model | Motion controlling card |
| Operation system | Windows 2000 or above |
| Programmable axis | X,Y,∮ |
| Step motor torque | 20N.m |
| Min cutting radius | 10mm |
| Self-test system | Installed |
| Blade alert | Installed |
| Motor power | 8kw |
Data as listed in our catalogue. Confirm voltage and output with us before ordering.
Related Products
Other models in the Cutting Machine range.
SXA-N computer foam cutting machine (use wire)The simple computer cutting machine is mainly used for block foam abnormity cutting, two or three dimensional polyurethane...View Specifications
SDQ-P-N horizontal contour cutting machine (use blade)product efficiency high , cutting exact, operate easily get advanced level domestically and oversea in the same field.View Specifications
SDQ-L-N vertical contour cutting machine (use blade)This vertical contour cutting machine is used for big block foam cutting.View Specifications
SPQ-X horizontal cutting machine (with vacuum)This cutting machine mainly cuts the block foam into slices.View Specifications
SPQ-T horizontal cutting machine (without vacuum)This cutting machine mainly cuts the block foam into slices.View Specifications
SLQ-Z fully automatic vertical cutting machineThis cutting machine is designed with a stationary worktable and motorized movable cutting unit.View SpecificationsQuestions About CNCSS-1 Fast wire foam contour cutting machine
What Is CNCSS-1 Fast wire foam contour cutting machine Used For
Fast wire foam cutting machine is computerized controlled, which is easy to operate and with fast cutting speed, you can cut hard PU foam, EVA, PE, PEE.
Where Does This Model Sit In The Catalogue
It belongs to the Foam Machine range, sub range Cutting Machine.
Where Can I See The Full Specifications
The specification table on this page lists the data we hold for this model. Tell us your voltage and output target and we will confirm the build before production.
How Do I Request A Price For This Model
Email [email protected] or call 0086-13857880865. Include the quantity, your destination port and your power supply so the quote is accurate.
