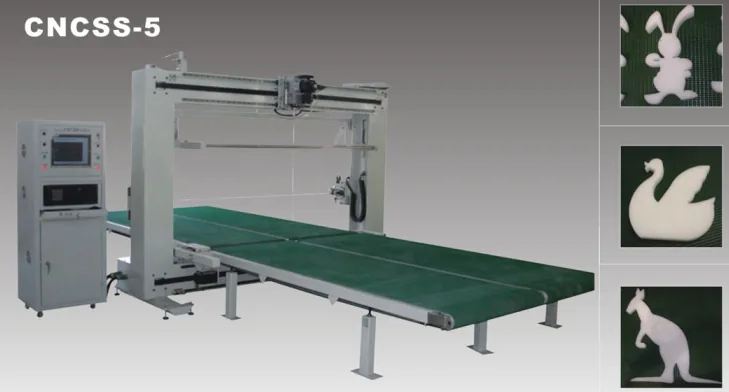

CNC SS-5 double knife blade foam cutting machine
CNC double knife blade foam cutting machine
- Supplied by SUNSHINE INTERNATIONAL CO.,LTD
- Contact Ms Icy · [email protected]
- Tel 0086-13857880865 · Fax 0086-574-56877860
Product Overview
CNC
SS-5 Double knife blade foam cutting machine
There are different kinds of
CNC
foam cutting machine such as vertical ,horizontal and double blade .
The machine can cut the foam into different shape.
Specifications
| Machine weight | 1300kg |
|---|---|
| Voltage | 380v 3P 50hz |
| Machine size | 5000x3200x2300mm |
| Max block size | 2300x2300x1300mm |
| Cutting wire size | 2500x3x0.5mm |
| Speed of wheel | 2400-2800r /min. |
| Working speed | 0-6.3m/min. |
| Process precision | ±0.5mm |
| Min working size | 5mm |
| Type of CNC | Industrial computer |
|---|---|
| Display | LCD display |
| Controlling model | Motion controlling card |
| Operation system | Windows 2000 or above |
| Programmable axis | X,Y,Z,∮ |
| Step motor torque | 20N.m |
| Min cutting radius | 10mm |
| Self-test system | Installed |
| Blade alert | Installed |
| Motor power | 8kw |
Data as listed in our catalogue. Confirm voltage and output with us before ordering.
